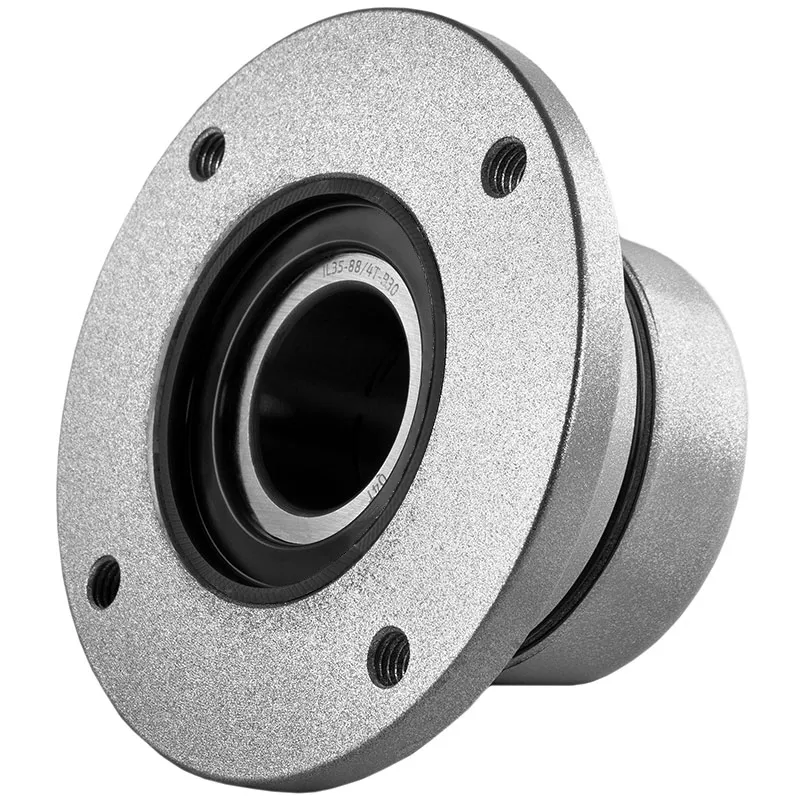

IL35-88/4T-B30

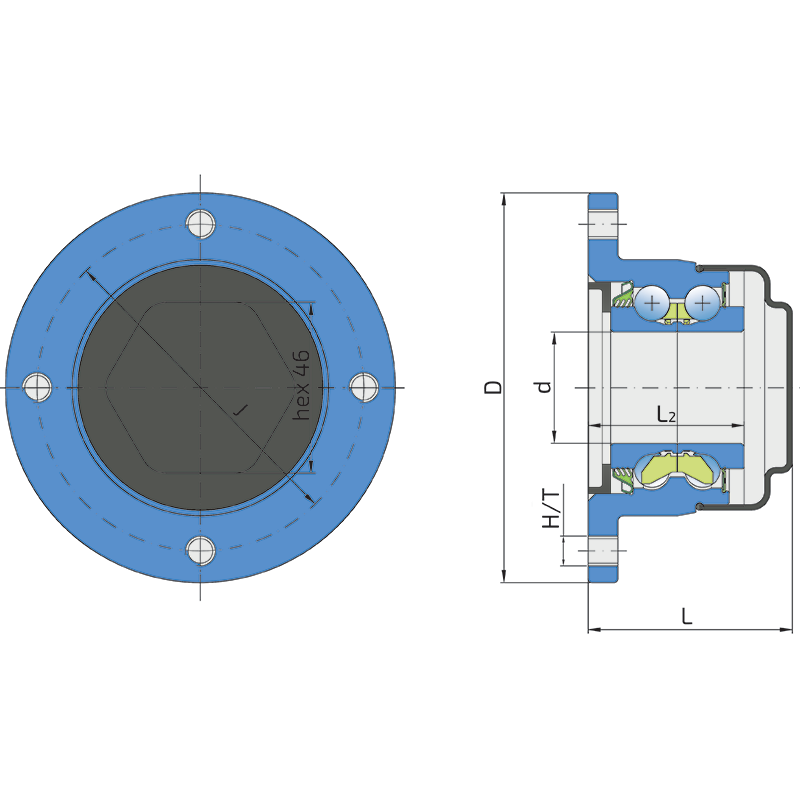

Technical specifications
| J | Pitch circle diameter | 88 mm |
| D | Outside diameter | 105 mm |
| H/T | Hole/Thread | 4x8x1.25 mm |
| d | Bore diameter | 30 mm |
| L | Total length | 55 mm |
| L2 | Bearing width | 42 mm |
| kg | Mass | 1 kg |
| Cdyn | Dynamic load rating | 37.5 kN |
| Co | Static load rating | 26.5 kN |
| Pu | Fatigue load limit | 1.11 kN |

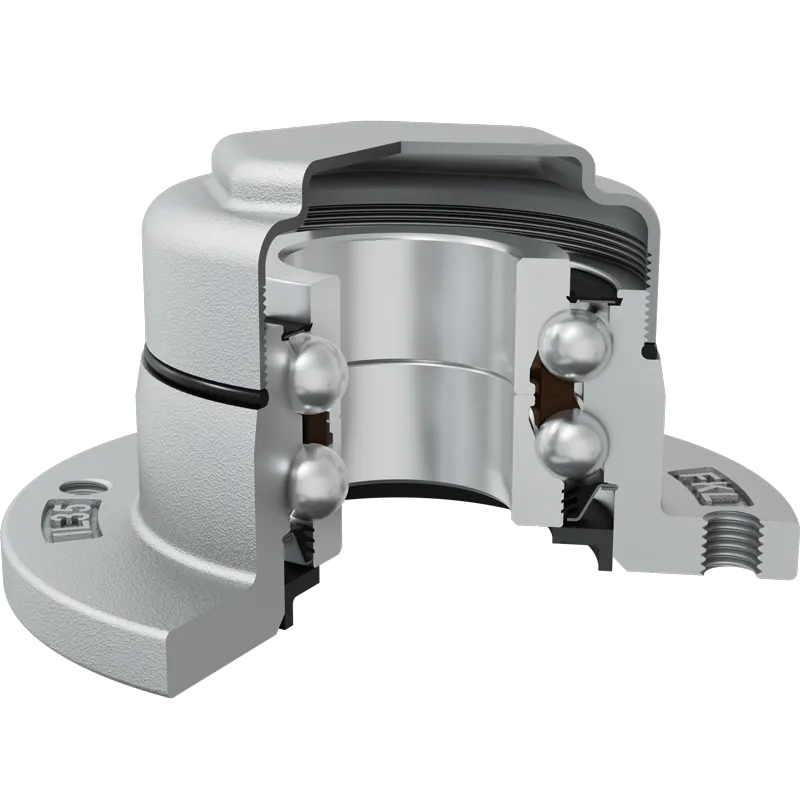

PLASTIC COVER+T SEAL / RS SEAL+METAL PROTECTIVE CAP
3-lip seal on the base side and the RS seal with metal protective cap on the front side.
The plastic cover on the base side protects the seal from mechanical damage.
3-lip seal on the base side also protected with attached disc, protecting the bearing from contamination.
The RS seal with a Metal protective cap on the front side eliminates bearing contaminants.
Cross references
| SAMSON AGROLIZE | IL35-88/4T-B30 |
| MOM | IL35-88/4T-B30 |
