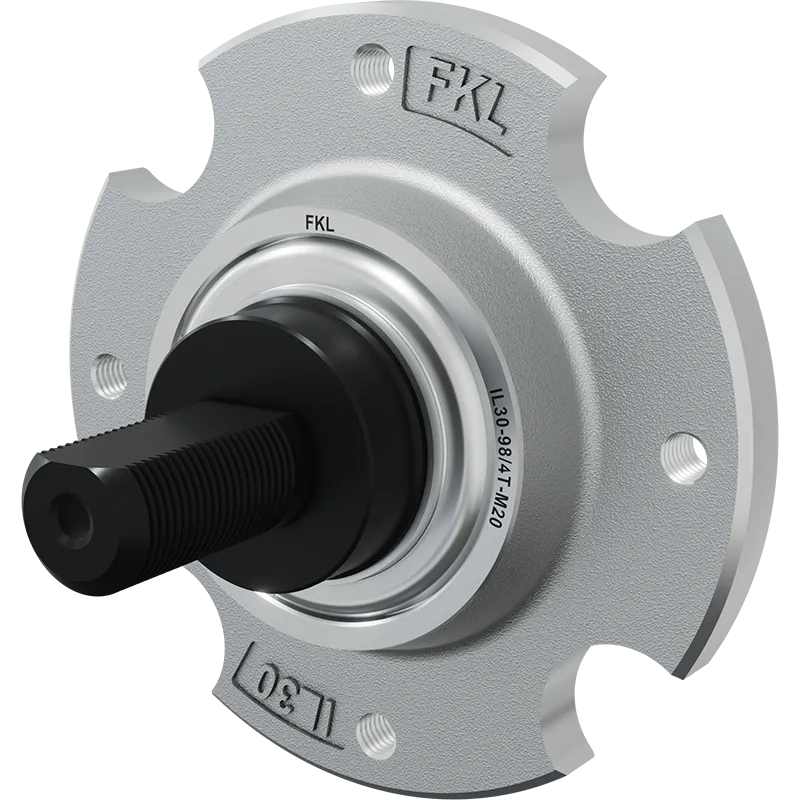

IL30-98/4T-M20
Technical specifications

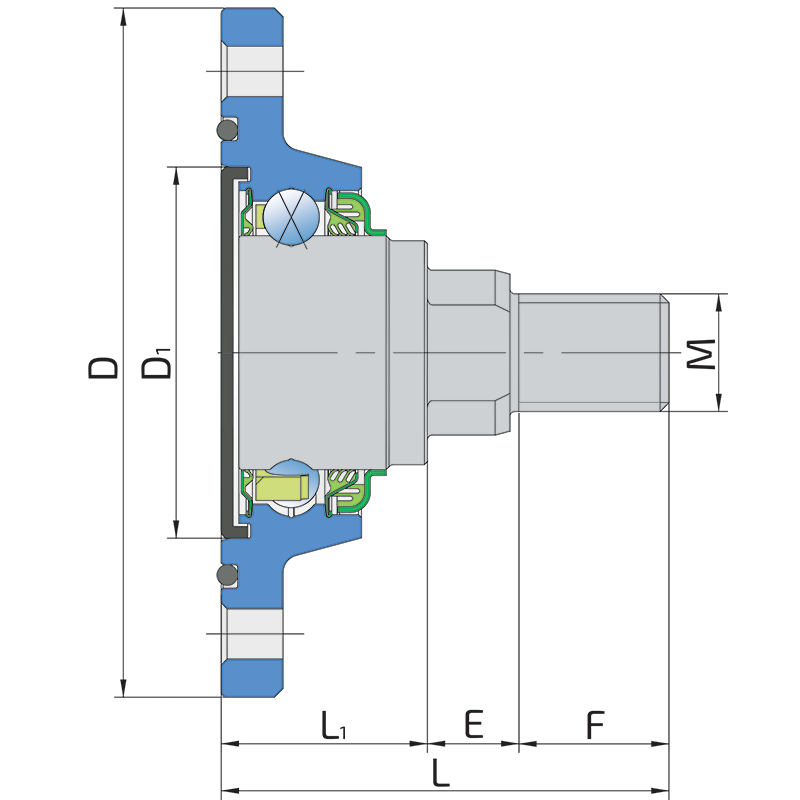

| J | Pitch circle diameter | 98 mm |
| D | Outside diameter | 117 mm |
| D1 | Outside diameter | 63 mm |
| H/T | Hole/Thread | 4xM8 mm |
| d | Bore diameter | 20 mm |
| C | D-shape hole cut out dimension | 17 mm |
| M | Outher Thread | M20 mm |
| L | Total length | 77 mm |
| L1 | Total flange length | 40 mm |
| E | Length of D shape | 7 mm |
| F | Length of threaded part | 30 mm |
| kg | Mass | 1.14 kg |
| Cdyn | Dynamic load rating | 29.6 kN |
| Co | Static load rating | 21 kN |
| Pu | Fatigue load limit | 0.88 kN |
O-RING+SHEET METAL SHIELD+S SEAL / DOUBLE T SEAL+STEEL SHIELD

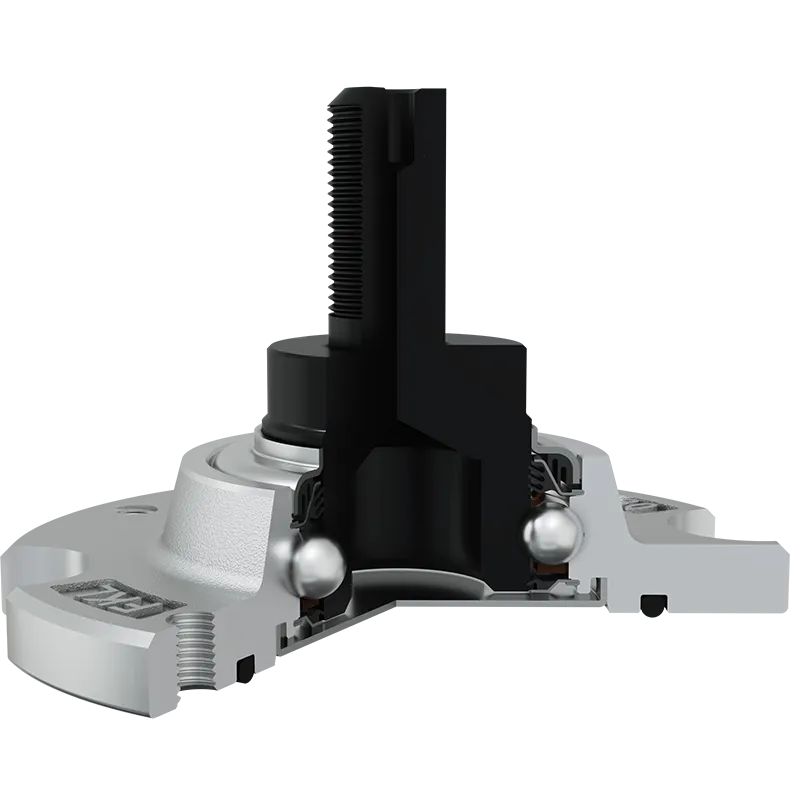

O-ring with Sheet metal shield and S seal on the base side and the double 3-lip seal with Steel shield on the front side.
O-ring with Sheet metal shield and S seal on the base side completely excludes all contaminants.
Double 3-lip seal protects the front side mauch longer than the just comaparing to the regular one 3-lip seal. Steel shield is additional, strong protection of the double 3-lip seal against mechanical damage.
