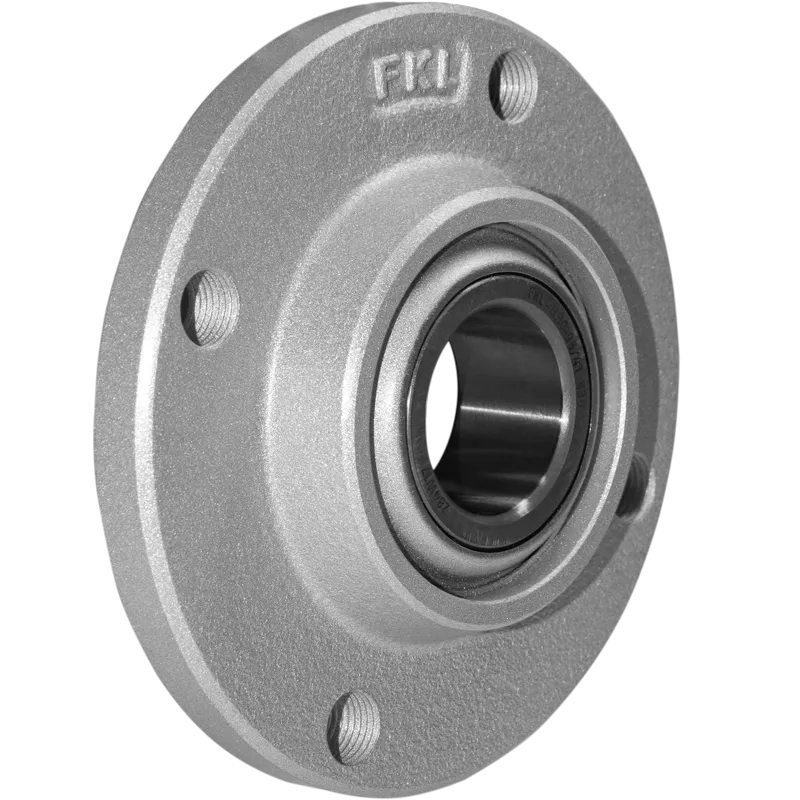

IL30-98/4T-B30

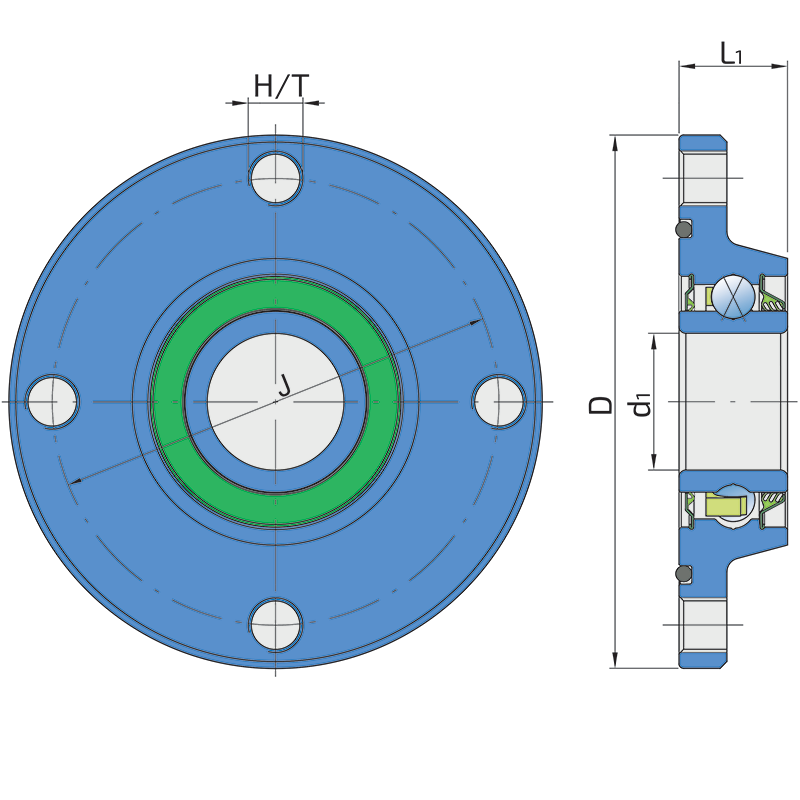

Technical specifications
| J | Pitch circle diameter | 98 mm |
| D | Outside diameter | 117 mm |
| H/T | Hole/Thread | 4xM12x1.25 mm |
| d1 | Bore diameter | 30 mm |
| L1 | Total flange length | 23.8 mm |
| kg | Mass | 0.91 kg |
| Cdyn | Dynamic load rating | 29.6 kN |
| Co | Static load rating | 21 kN |
| Pu | Fatigue load limit | 0.88 kN |

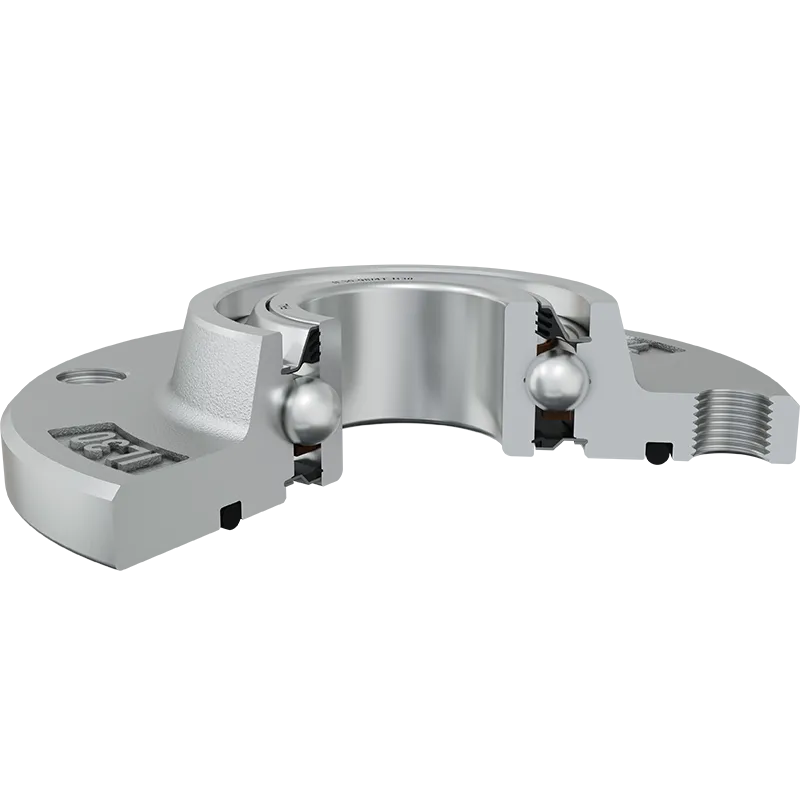

S SEAL / T SEAL
S seal on the base side and 3-lip seal on the front side which is exposed to contaminants.
The 3-lip seal on the front side protects the bearing from contaminant penetration.
.png)
Cross references
| INDUSTRIAS DAVID | IL30-98/4T-B30 |
| SEMBRADORAS GIL | IL30-98/4T-B30 |
