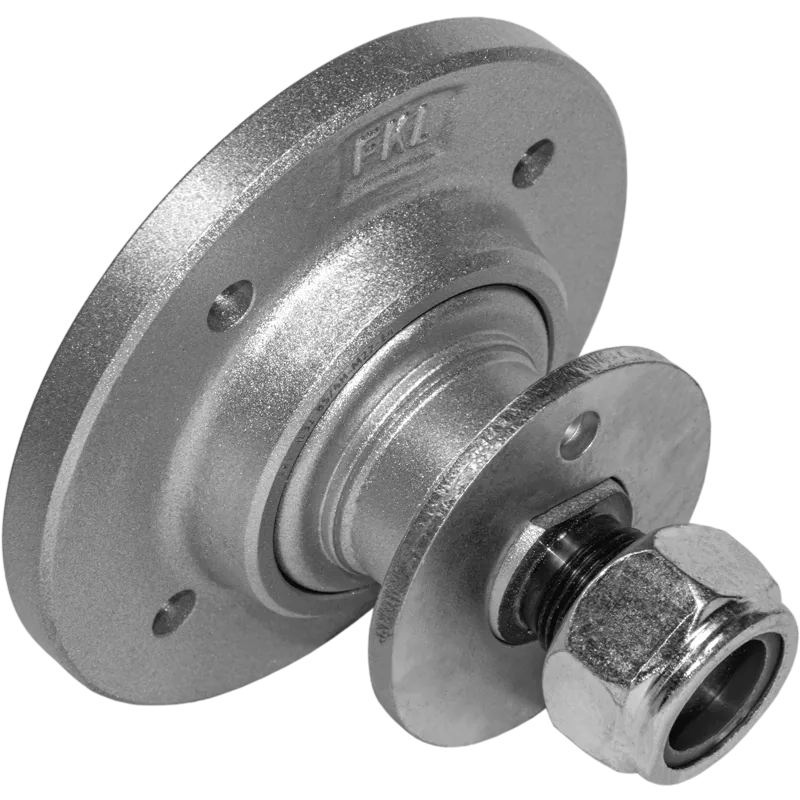

IL30-85/4H-M22-04

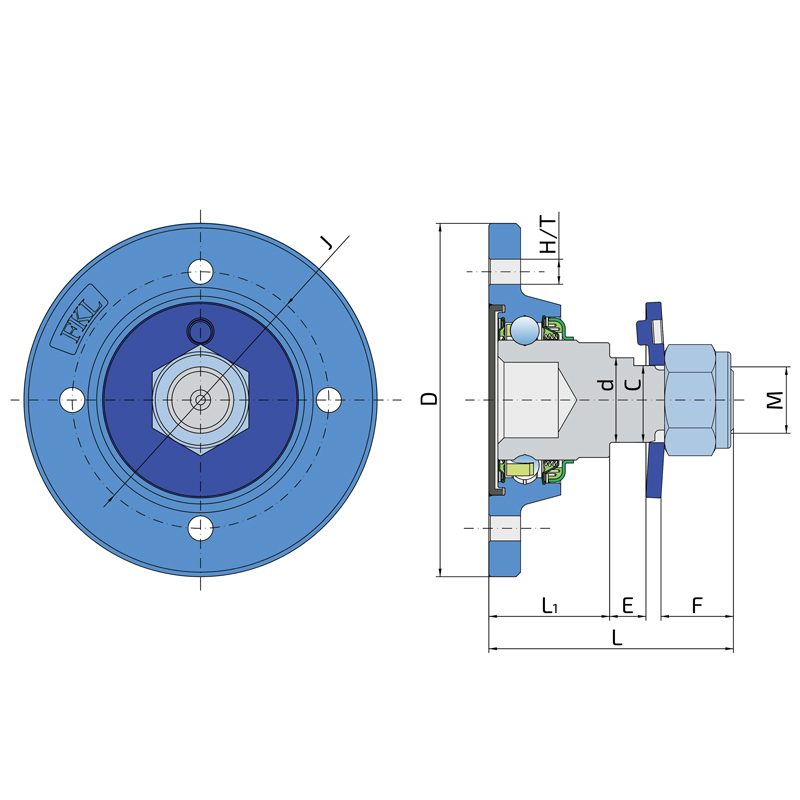

Technical specifications
| J | Pitch circle diameter | 85 mm |
| D | Outside diameter | 117 mm |
| H/T | Hole/Thread | 4x8.3 mm |
| d | Shaft diameter | 28 mm |
| C | D-shape hole cut out dimension | 25.4 mm |
| M | Outher Thread | M22x1.5 mm |
| L | Total length | 81 mm |
| L1 | Total flange length | 40 mm |
| E | Length of D shape | 12 mm |
| F | Length of threaded part | 26 mm |
| kg | Mass | 1.499 kg |
| Cdyn | Dynamic load rating | 29.6 kN |
| Co | Static load rating | 21 kN |
| Pu | Fatigue load limit | 0.882 kN |

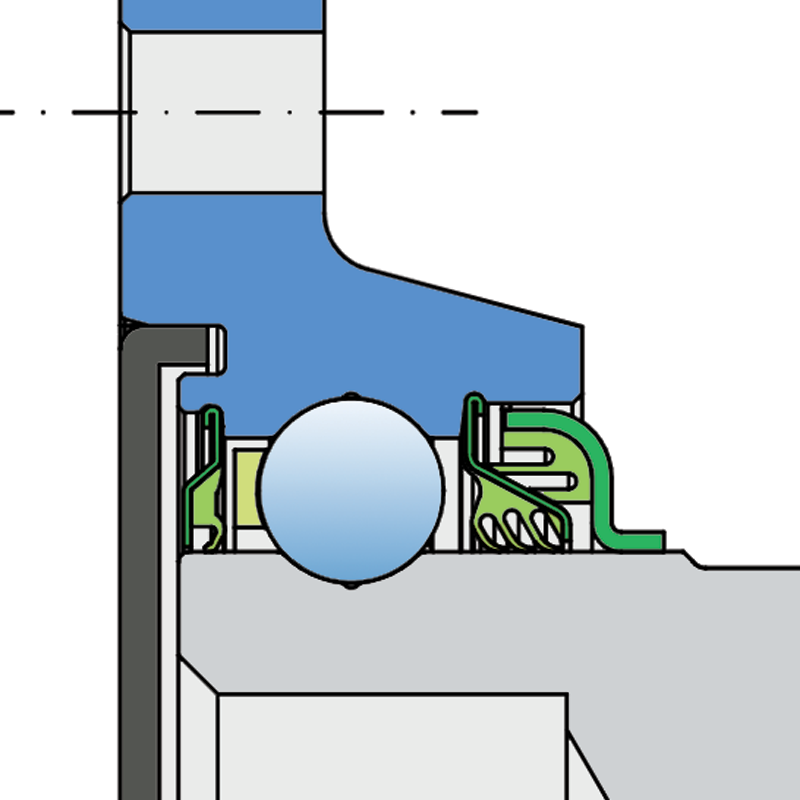

SHEET METAL SHIELD + S SEAL / DOUBLE T SEAL + STEEL SHIELD
Sheet metal shield and S seal on the base side and the double 3-lip seal with Steel shield on the front side.
Sheet metal shield and S seal on the base side completely excludes all contaminants.
Double 3-lip seal protects the front side mauch longer than the just comaparing to the regular one 3-lip seal. Steel shield is additional, strong protection of the double 3-lip seal against mechanical damage.
Cross references
| AGRO-LIFT | IL30-85/4H-M22-04 |
