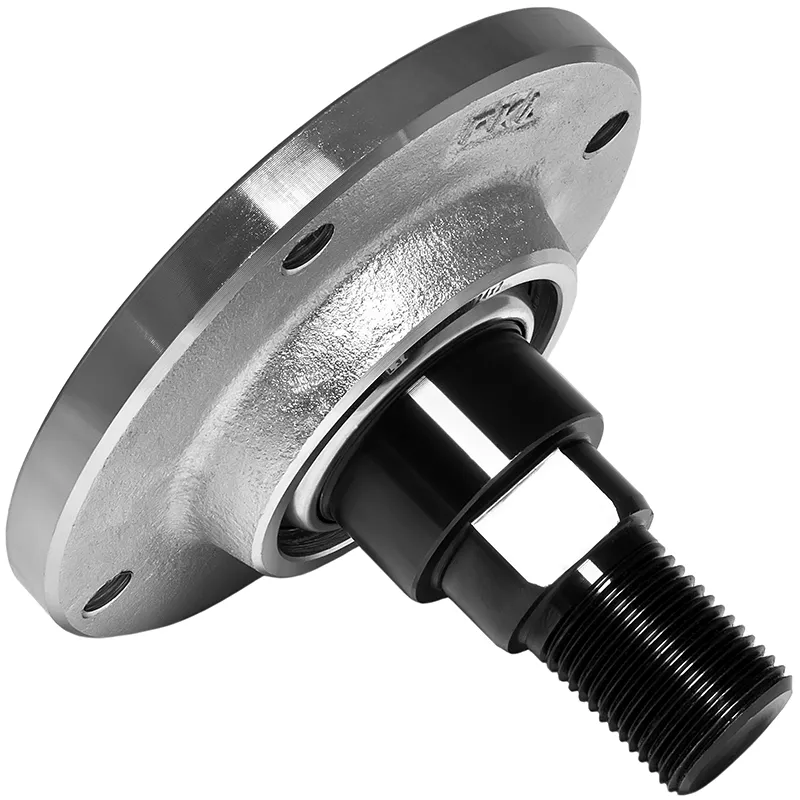

IL30-100/4T-M24x2

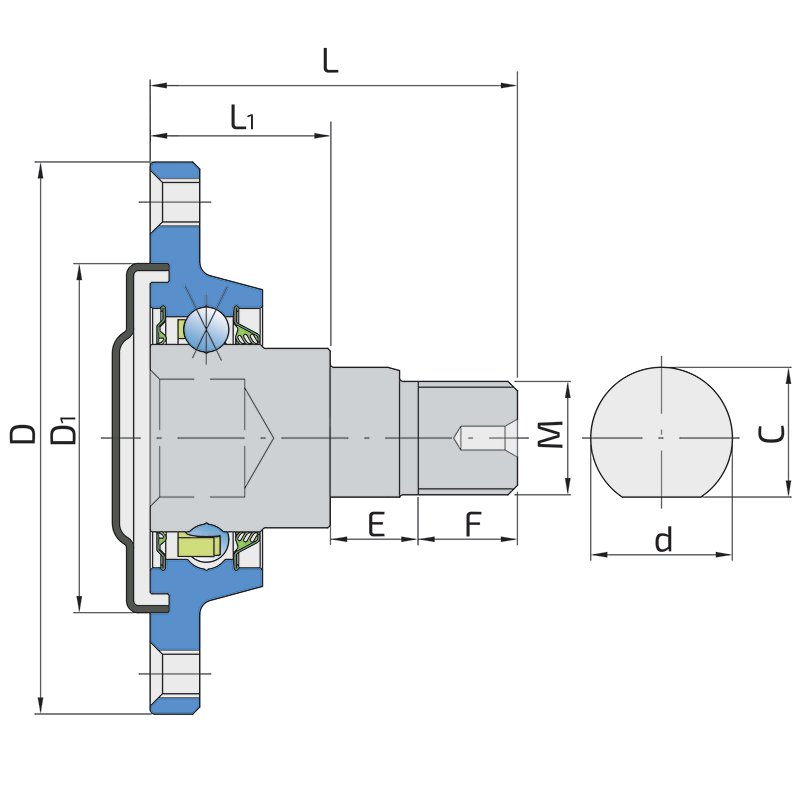

Technical specifications
| J | Pitch circle diameter | 100 mm |
| D | Outside diameter | 117 mm |
| D1 | Outside diameter | 74 mm |
| H/T | Hole/Thread | 4xM10 mm |
| d | Shaft diameter | 30 mm |
| C | D-shape hole cut out dimension | 27.5 mm |
| M | Outher Thread | M24x2 mm |
| L | Total length | 89 mm |
| L1 | Total flange length | 42.3 mm |
| E | Length of D shape | 18.7 mm |
| F | Length of threaded part | 28 mm |
| kg | Mass | 1.51 kg |
| Cdyn | Dynamic load rating | 29.6 kN |
| Co | Static load rating | 21 kN |
| Pu | Fatigue load limit | 0.88 kN |
SHEET METAL SHIELD+S SEAL / T SEAL
Sheet metal shield and S seal on the base side and 3-lip seal on the front side.
A Sheet metal shield and S seal on the base side prevent penetration of all types of contaminants into the bearing, as well a 3-lip seal on the front side protects the bearing from contaminant penetration.
Cross references
| UNIA | Vis/0727 Fe/Zn |
| LETAK | IL30-100/4T-M24x2 |
| SATEX | IL30-100/4T-M24x2 |
