IL25-75/6H-B20-T
Technical specifications
| J | Pitch circle diameter | 75 mm |
| D | Outside diameter | 100 mm |
| H/T | Hole/Thread | 5x7 mm |
| d1 | Bore diameter | 20 mm |
| L | Total length | 39 mm |
| kg | Mass | 0.78 kg |
| Cdyn | Dynamic load rating | 32 kN |
| Co | Static load rating | 22 kN |
| Pu | Fatigue load limit | 0.924 kN |

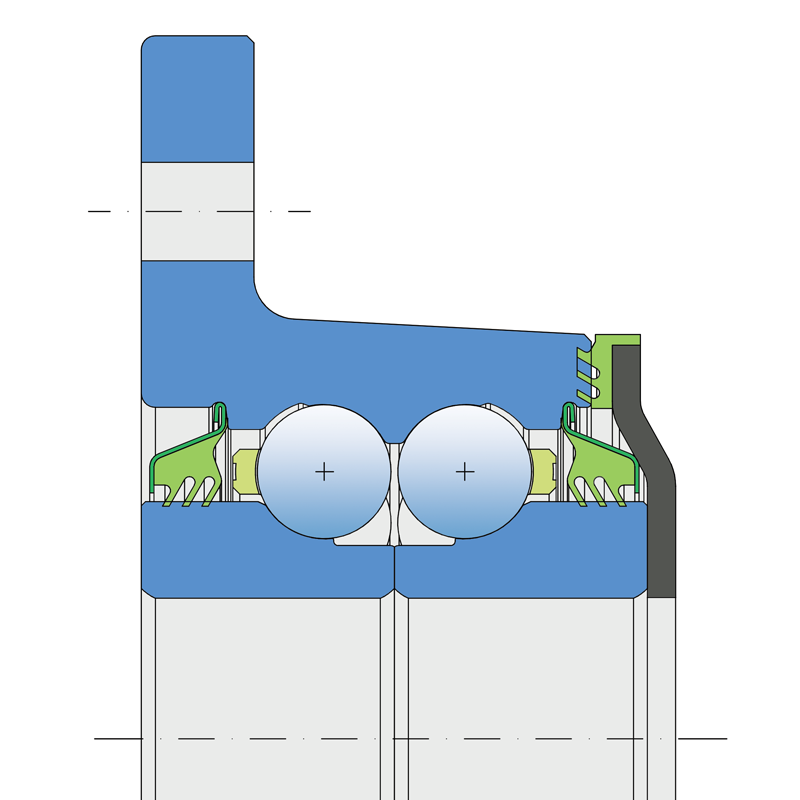

T SEAL / T SEAL (2T)
3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
