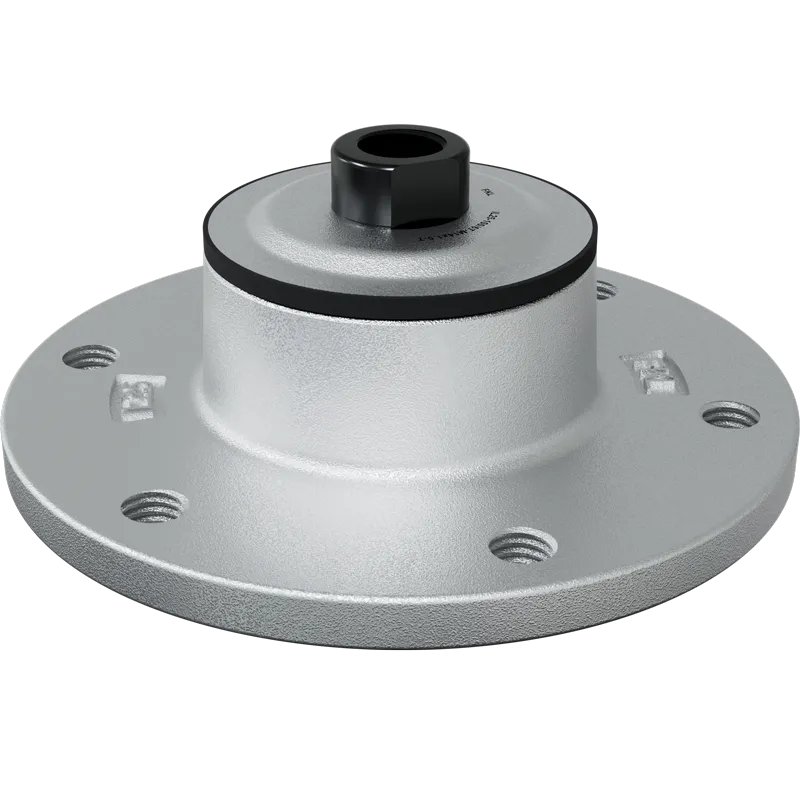

IL25-100/6T-M14x1.5

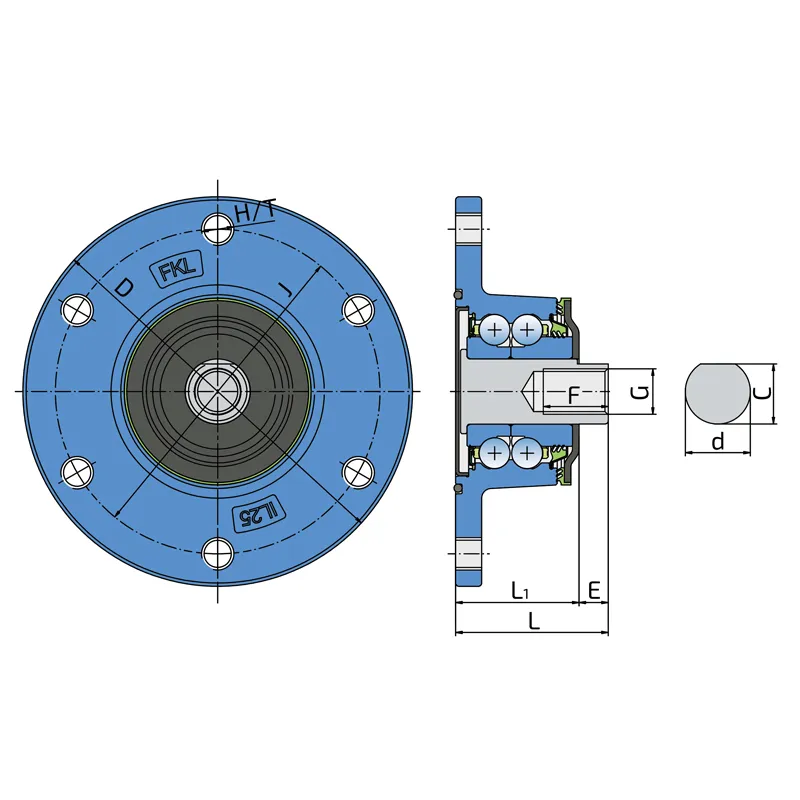

Technical specifications
| J | Pitch circle diameter | 100 mm |
| D | Outside diameter | 120 mm |
| H/T | Hole/Thread | 6xM10 mm |
| d | Shaft diameter | 20 mm |
| C | D-shape hole cut out dimension | 18.5 mm |
| G | Internal Thread | M14x1.5 mm |
| L | Total length | 47 mm |
| L1 | Total flange length | 38 mm |
| E | Length of D shape | 9 mm |
| F | Length of threaded part | 20 mm |
| kg | Mass | 1.09 kg |
| Cdyn | Dynamic load rating | 32 kN |
| Co | Static load rating | 22 kN |
| Pu | Fatigue load limit | 0.924 kN |
O-RING+ SHEET METAL SHIELD+RS SEAL / DOUBLE T SEAL+METAL PROTECTIVE COVER

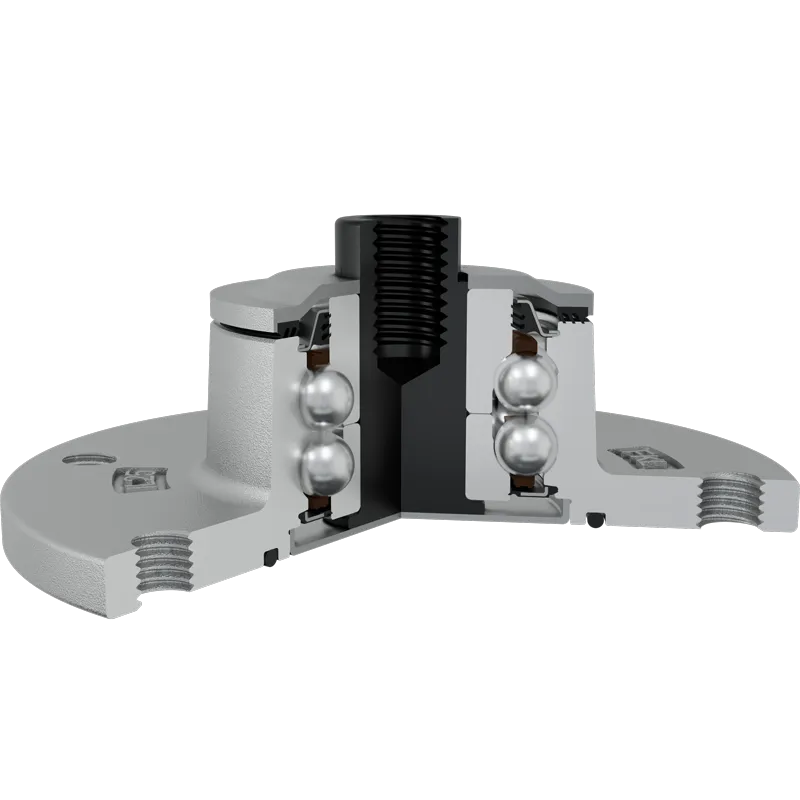

O-ring, Sheet metal shield and RS seal on the base side and the 3-lip seal, reinforced with frontal 3-lip seal and Metal protective cover on the front side, which is exposed to the contaminants.
O-ring, Sheet metal shield and RS seal together with attached disc eliminates the possibility of contamination from the base side.
The 3-lip seal in combination with the frontal 3-lip seal provides better protection of contamination and extend the bearing life. The Metal protective cover of the frontal 3-lip seal also protect the inner 3-lip seal from mechanical damages.
Cross references
| KUHN | H2238290 |
| NWG | AHU20120B-01 |
