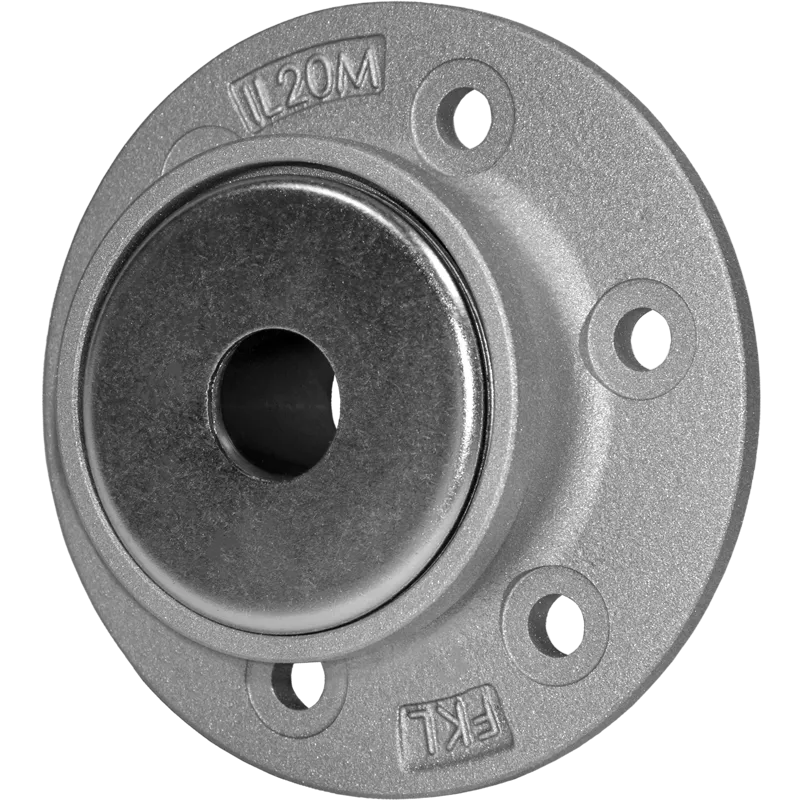

IL20S-80/6H-B20

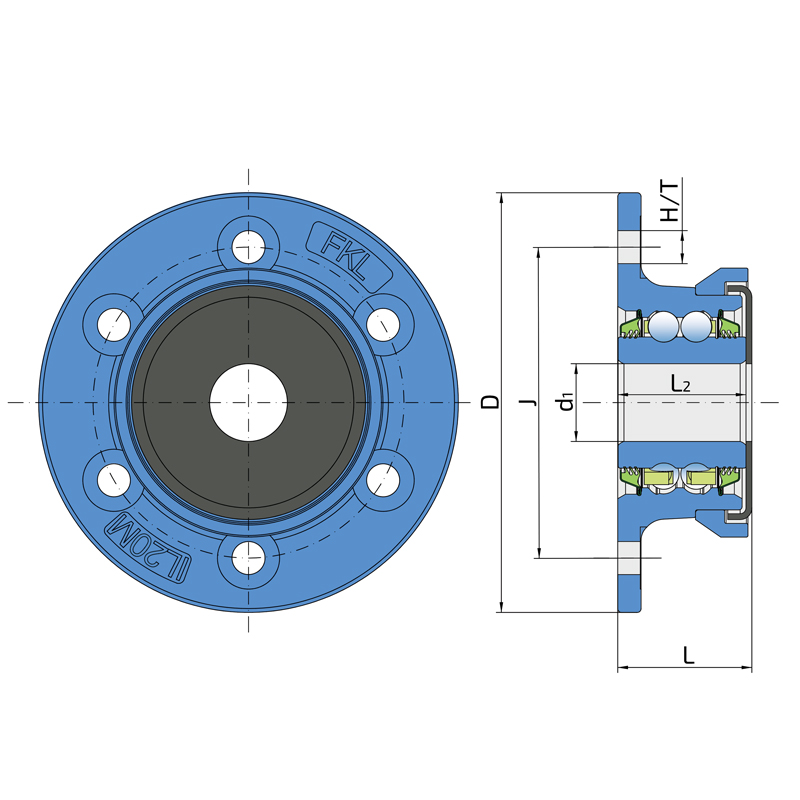

Technical specifications
| J | Pitch circle diameter | 80 mm |
| D | Outside diameter | 108 mm |
| H/T | Hole/Thread | 6x8.5 mm |
| d1 | Bore diameter | 20 mm |
| L | Total length | 34.5 mm |
| L2 | Bearing width | 33 mm |
| kg | Mass | 0.729 kg |
| Cdyn | Dynamic load rating | 21.6 kN |
| Co | Static load rating | 14.3 kN |
| Pu | Fatigue load limit | 0.601 kN |

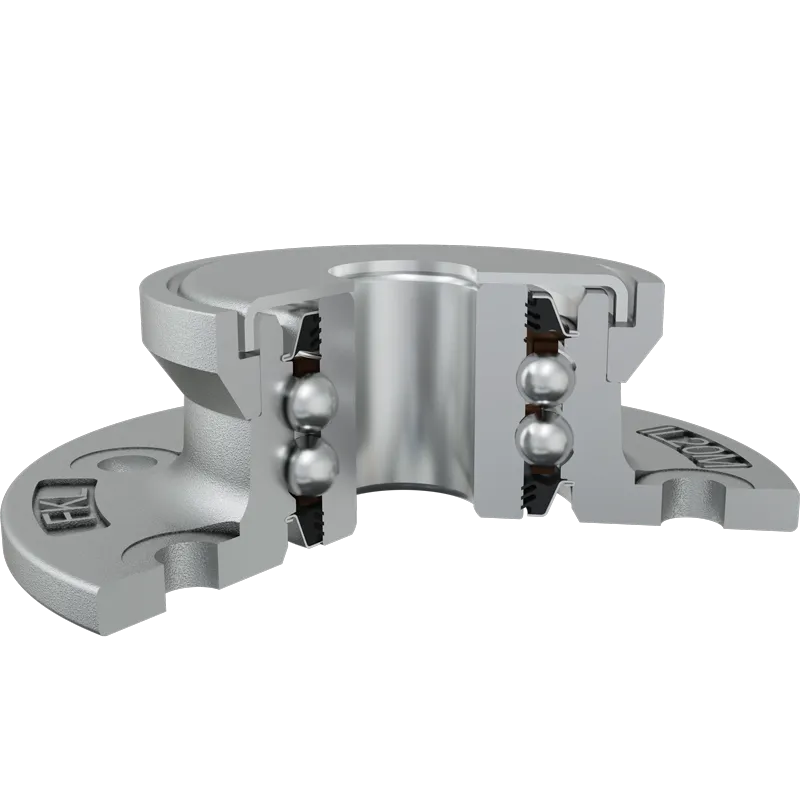

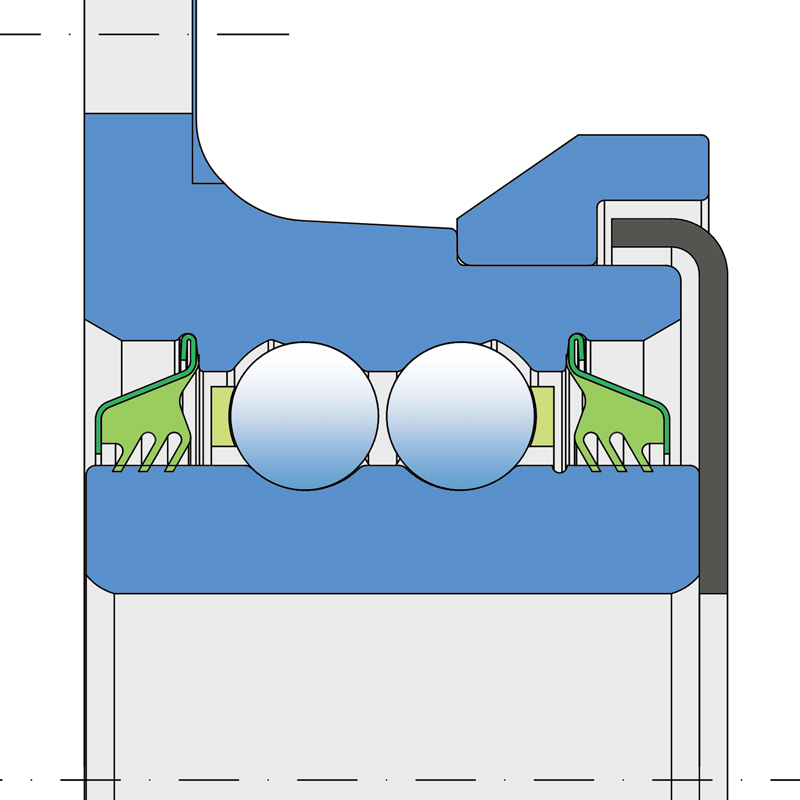

T SEAL / T SEAL + METAL SHIELD
3-lip seal on the base side and the 3-lip seal with Metal shield on the front side.
3-lip seal on the base side protects the bearing from contamination.
3-lip seal with a Metal shield on the front side eliminates bearing contaminants.
Cross references
| VADERSTAD | 192040 |
| KVERNELAND | AC671262 |
| SKF | AGHU2080X6F-1LMB |
Installations
| VADERSTAD | TEMPO |
| KVERNELAND | OPTIMA |
| KVERNELAND | OPTIMA HD |
| KVERNELAND | OPTIMA PH |
| KVERNELAND | OPTIMA TF MAXI |
| KVERNELAND | OPTIMA TF PROFI |
| KVERNELAND | OPTIMA HD RIGID FRAMES |
| KVERNELAND | OPTIMA V |
| KVERNELAND | OPTIMA PH 6 |
| KVERNELAND | OPTIMA PH 9 |
| KVERNELAND | OPTIMA TELESCOPIC FRAME |
| KVERNELAND | OPTIMA RIGID |
| KVERNELAND | OPTIMA RS |
| VADERSTAD | PROCEED V |
