IL20S-79.4/6H-B16-2T

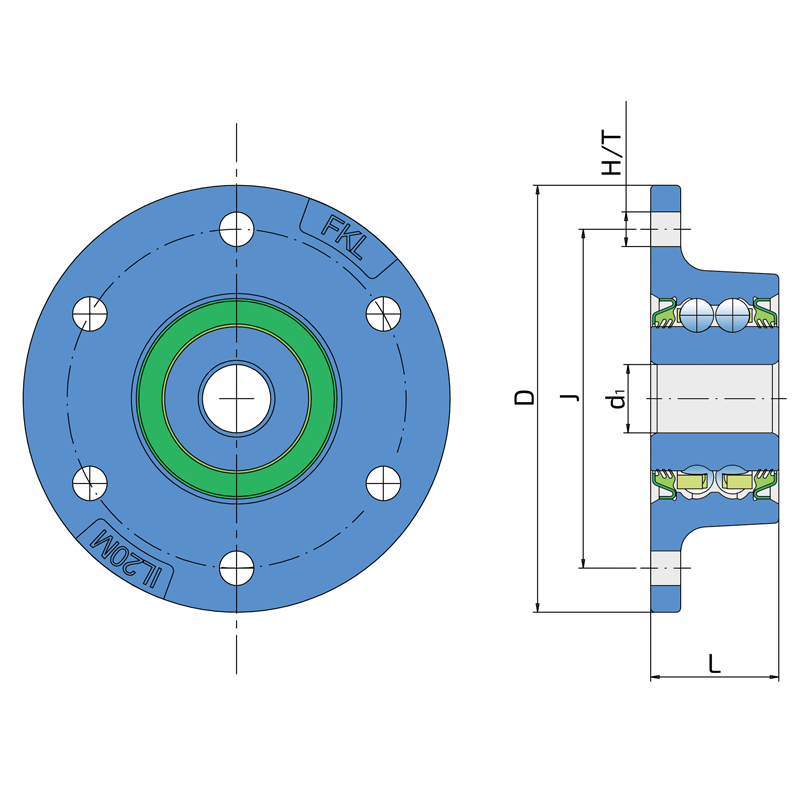

Technical specifications
| J | Pitch circle diameter | 79.4 mm |
| D | Outside diameter | 100 mm |
| H/T | Hole/Thread | 6x8.1 mm |
| L | Total length | 30 mm |
| d1 | Bore diameter | 16 mm |
| kg | Mass | 0.733 kg |
| Cdyn | Dynamic load rating | 21.6 kN |
| Co | Static load rating | 14.3 kN |
| Pu | Fatigue load limit | 0.601 kN |

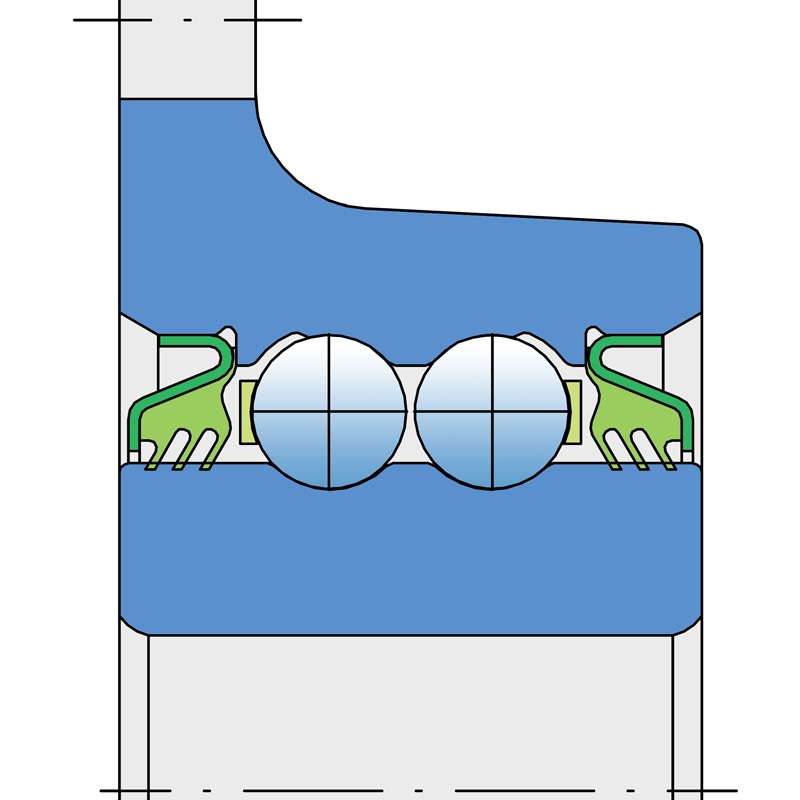

T SEAL / T SEAL (2T)
3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
Cross references
| ALLEN CUSTOM DRILLS | IL20S-79.4/6H-B16-2T |
