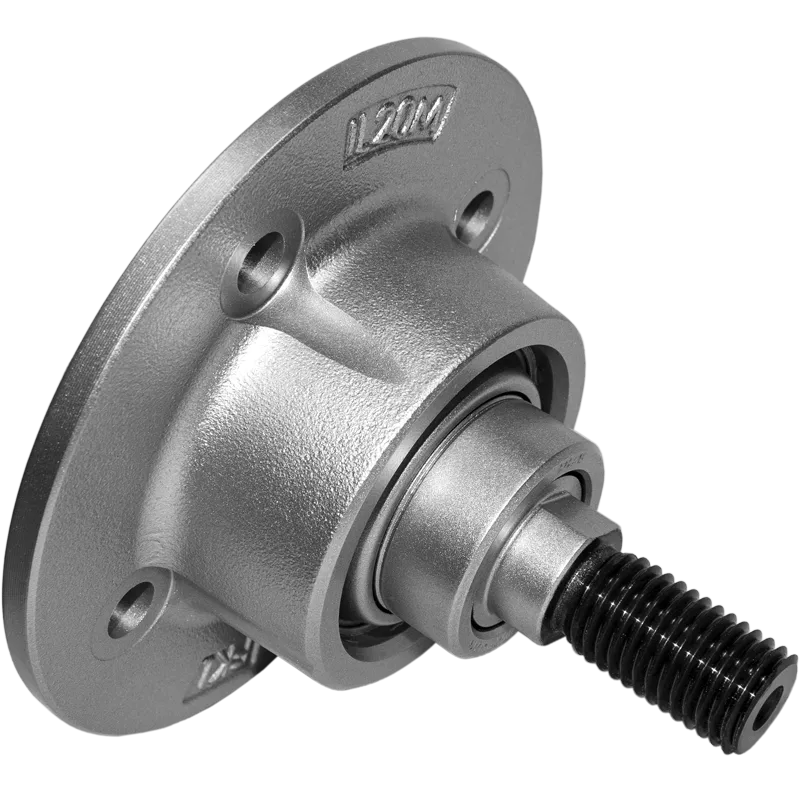

IL20S-75/4H-M16

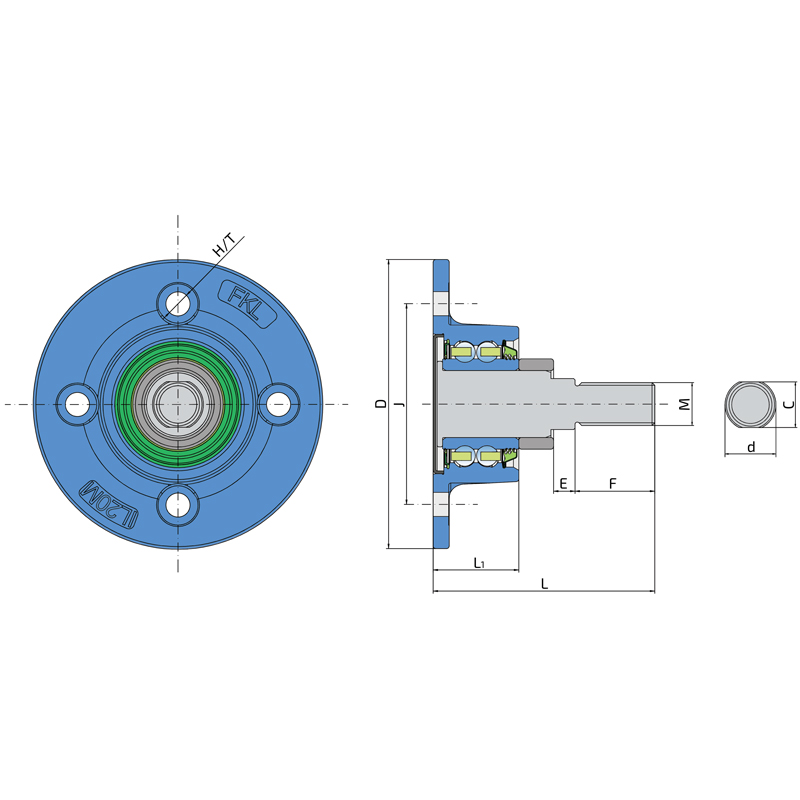

Technical specifications
| J | Pitch circle diameter | 75 mm |
| D | Outside diameter | 108 mm |
| H/T | Hole/Thread | 4x9 mm |
| d | Shaft diameter | 19 mm |
| C | D-shape hole cut out dimension | 17 mm |
| M | Outher Thread | M16 mm |
| L | Total length | 82.8 mm |
| L1 | Total flange length | 32 mm |
| E | Length of D shape | 8 mm |
| F | Length of threaded part | 29.8 mm |
| kg | Mass | 0.973 kg |
| Cdyn | Dynamic load rating | 21.6 kN |
| Co | Static load rating | 14.3 kN |
| Pu | Fatigue load limit | 0.601 kN |

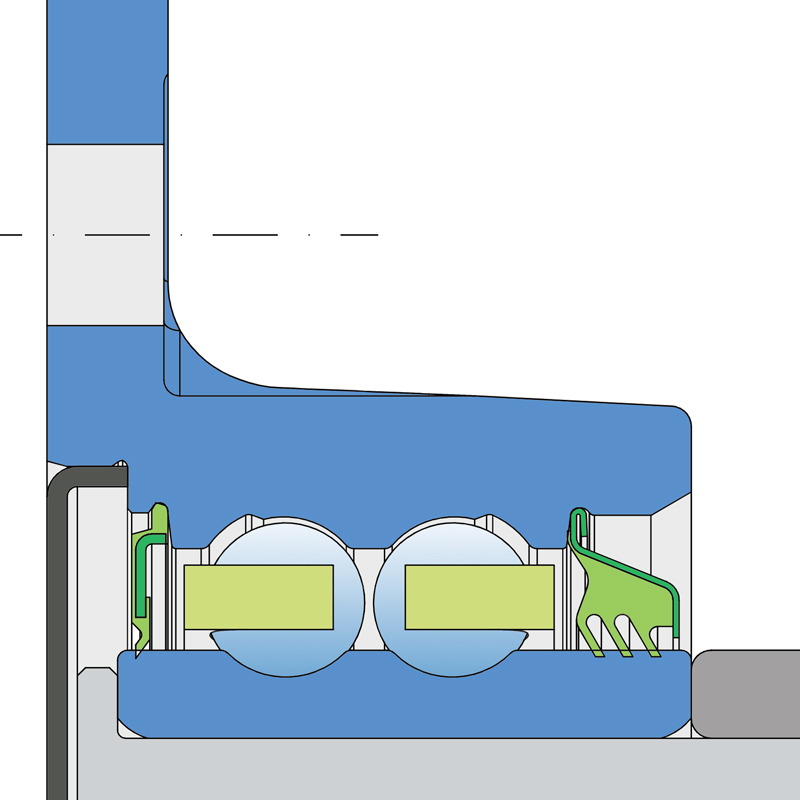

SHEET METAL SHIELD + RS SEAL / T SEAL
Sheet metal shield and RS seal on the base side and 3-lip seal on the front side.
Sheet metal shield and RS seal together with attached disc eliminates the possibility of contamination from the base side.
The 3-lip seal on the front side protects the bearing from contaminant penetration.
