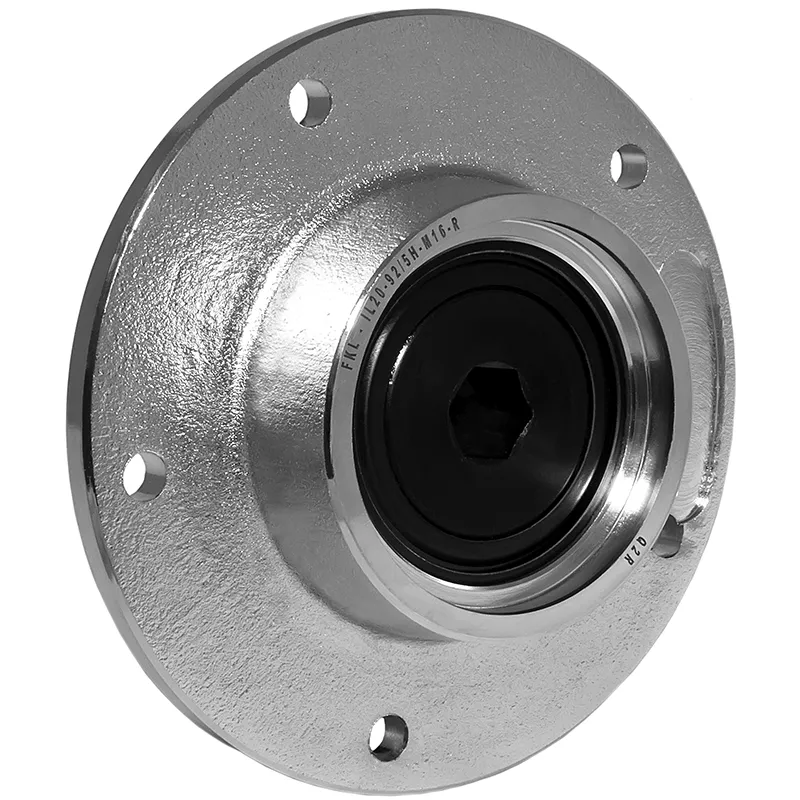

IL20-92/5H-M16-R

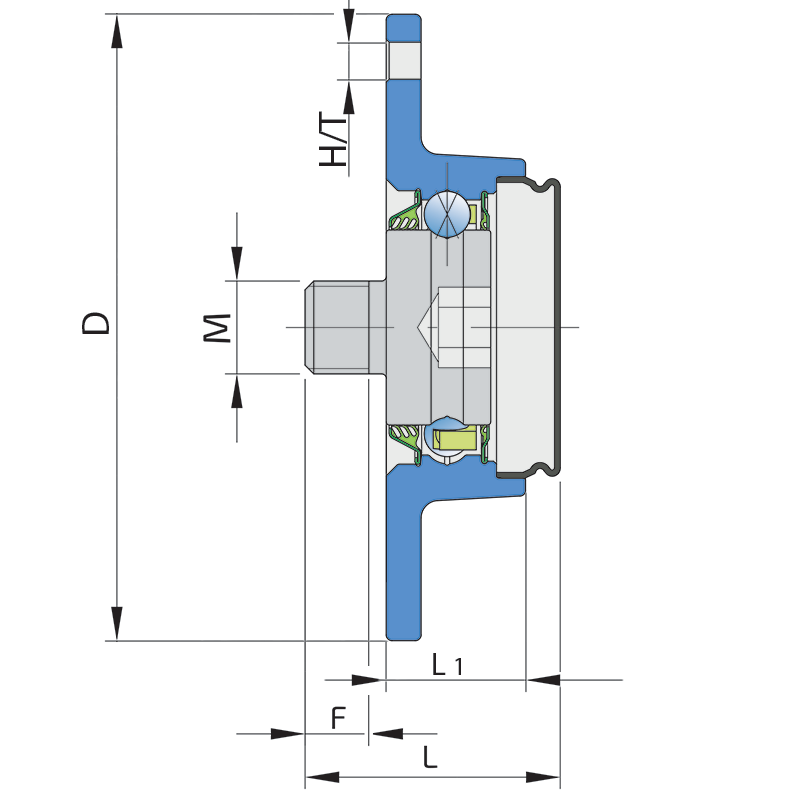

Technical specifications
| J | Pitch circle diameter | 92 mm |
| D | Outside diameter | 108 mm |
| H/T | Hole/Thread | 5x6.4 mm |
| M | Outher Thread | M16x1.5 mm |
| L | Total length | 51.7 mm |
| L1 | Total flange length | 24 mm |
| F | Length of threaded part | 14 mm |
| kg | Mass | 0.67 kg |
| Cdyn | Dynamic load rating | 22 kN |
| Co | Static load rating | 15.2 kN |
| Pu | Fatigue load limit | 0.64 kN |

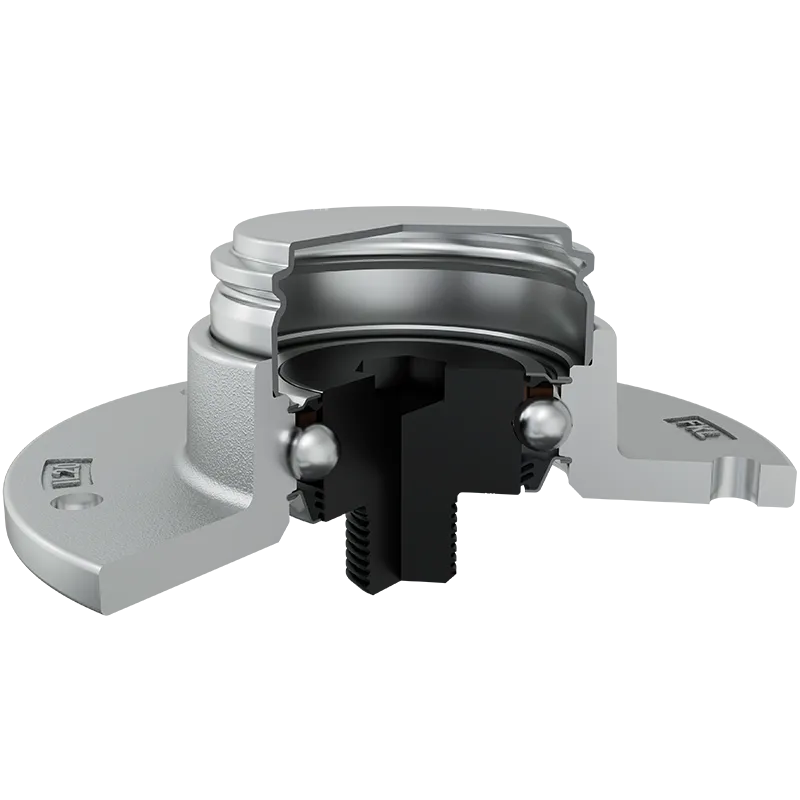

T SEAL / S SEAL+METAL PROTECTIVE CAP
3-lip seal on the base side and the S seal with Metal protective cap on the front side.
3-lip seal on the base side also protected with attached disc, protecting the bearing from contamination.
S seal with a Metal protective cap on the front side eliminates bearing contaminants.
Cross references
| Agromash-Kalina | IL20-92/5H-M16-R |
| Favorit | IL20-92/5H-M16-R |
