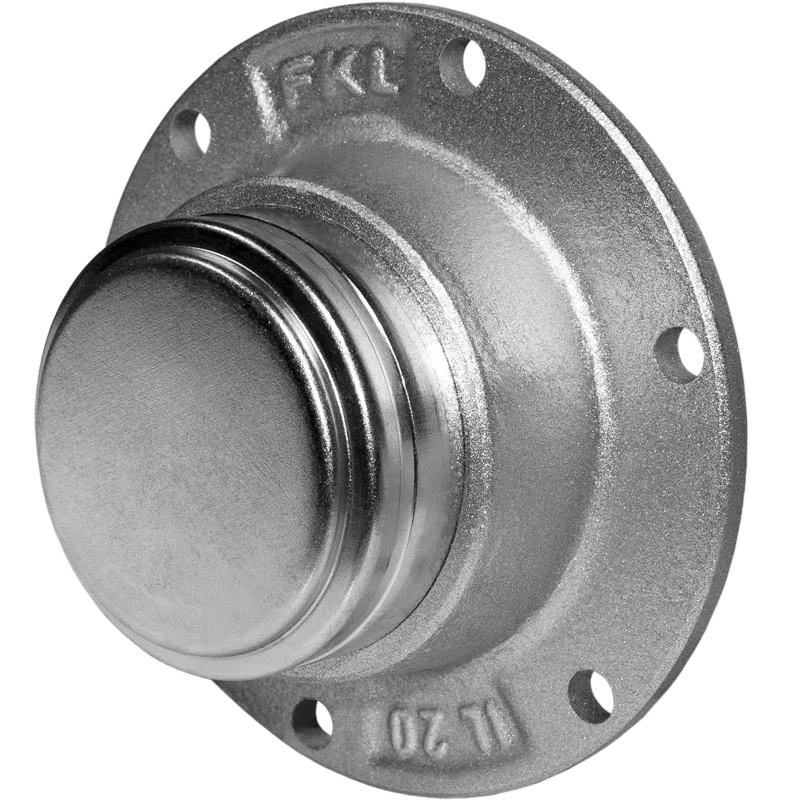

IL20-85/6H-B20

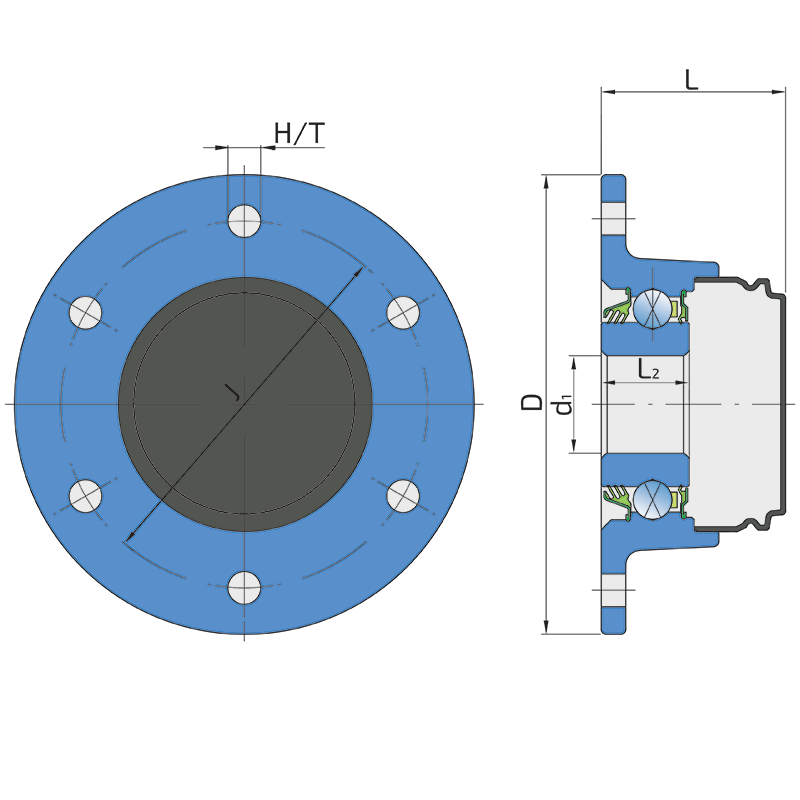

Technical specifications
| J | Pitch circle diameter | 85 mm |
| D | Outside diameter | 95 mm |
| H/T | Hole/Thread | 6x6.4 mm |
| d1 | Bore diameter | 20 mm |
| L | Total length | 37.7 mm |
| L1 | Total flange length | 24 mm |
| L2 | Bearing width | 18 mm |
| kg | Mass | 0.48 kg |
| Cdyn | Dynamic load rating | 22 kN |
| Co | Static load rating | 15.2 kN |
| Pu | Fatigue load limit | 0.64 kN |

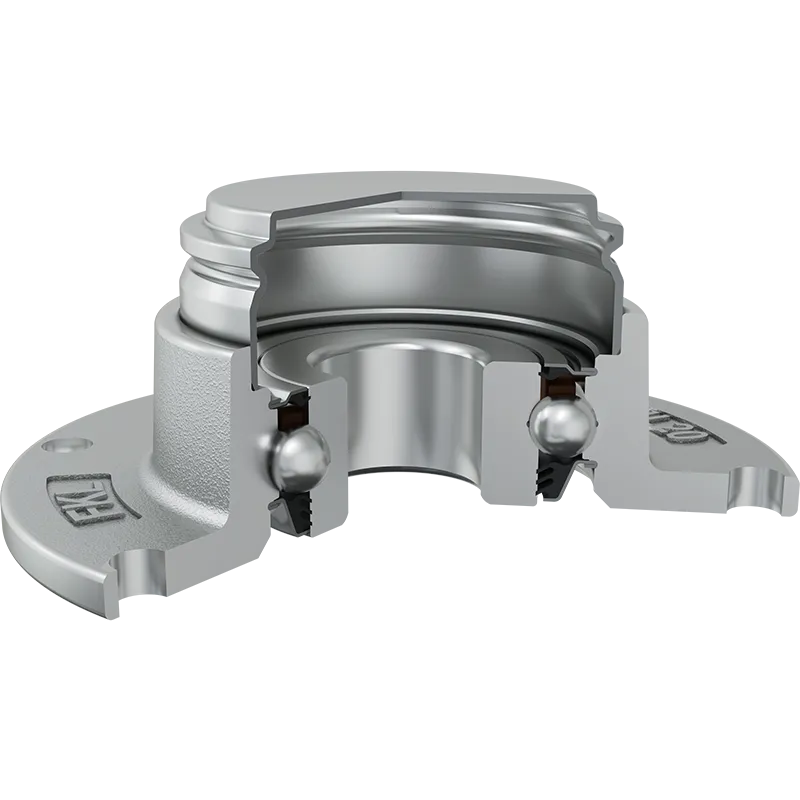

T SEAL / S SEAL+METAL PROTECTIVE CAP
3-lip seal on the base side and the S seal with Metal protective cap on the front side.
3-lip seal on the base side also protected with attached disc, protecting the bearing from contamination.
S seal with a Metal protective cap on the front side eliminates bearing contaminants.
.png)
Cross references
| KUHN | K3639590 |
| KUHN | N00876A0 |
Installations
| KUHN | Maxima 2 TRX TC |
| KUHN | COSMA |
