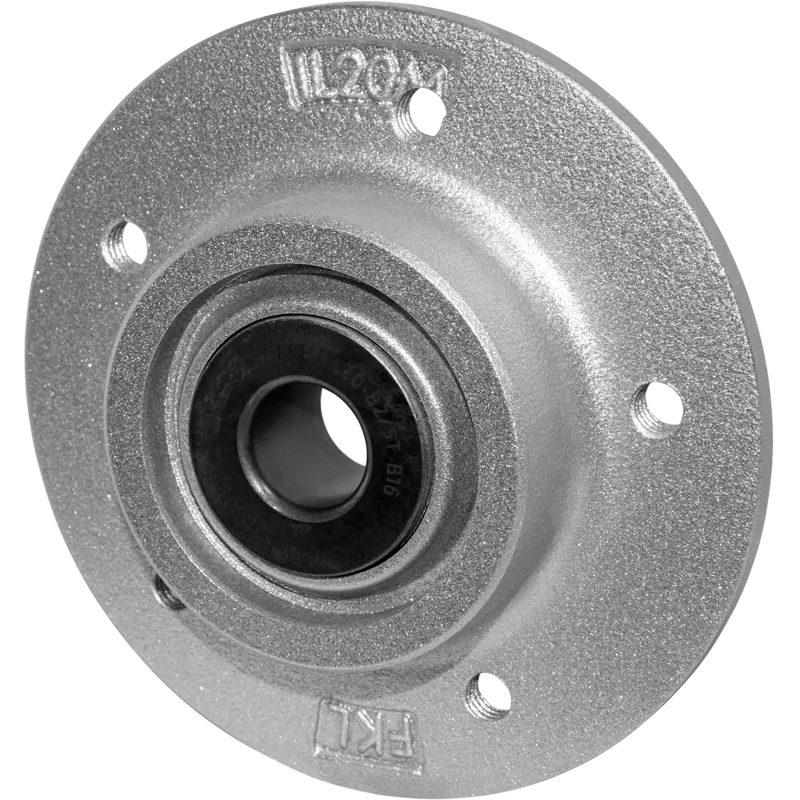

IL20-82/5T-B16

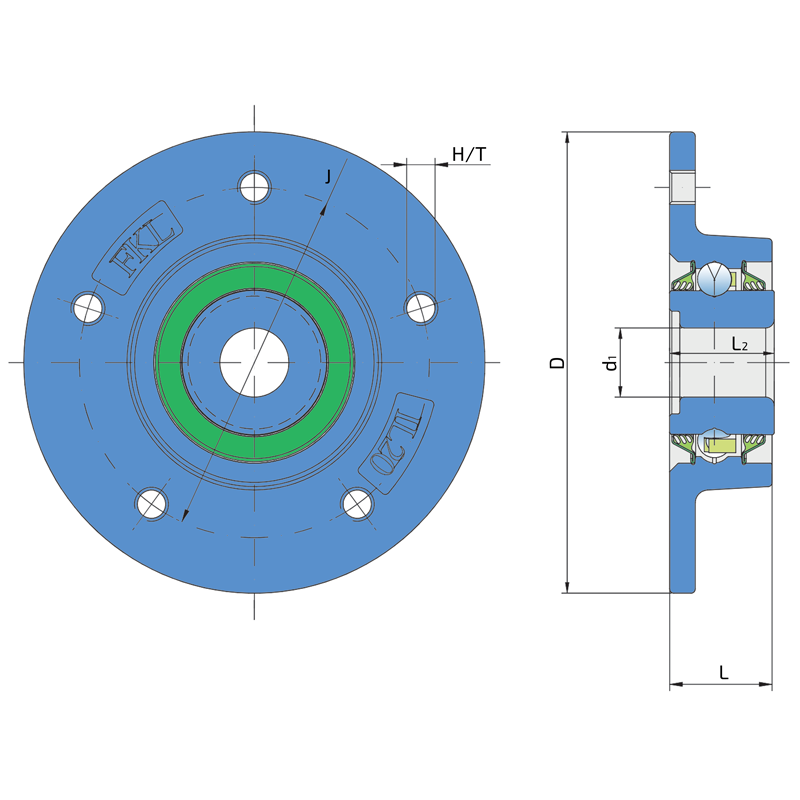

Technical specifications
| J |
Pitch circle diameter |
82 mm |
| D |
Outside diameter |
108 mm |
| H/T |
Hole/Thread |
5xM8 mm |
| d1 |
Bore diameter |
16.2 mm |
| L |
Total length |
24.5 mm |
| L2 |
Bearing width |
24.5 mm |
| kg |
Mass |
0.64 kg |
| Cdyn |
Dynamic load rating |
22 kN |
| Co |
Static load rating |
15.2 kN |
| Pu |
Fatigue load limit |
0.638 kN |

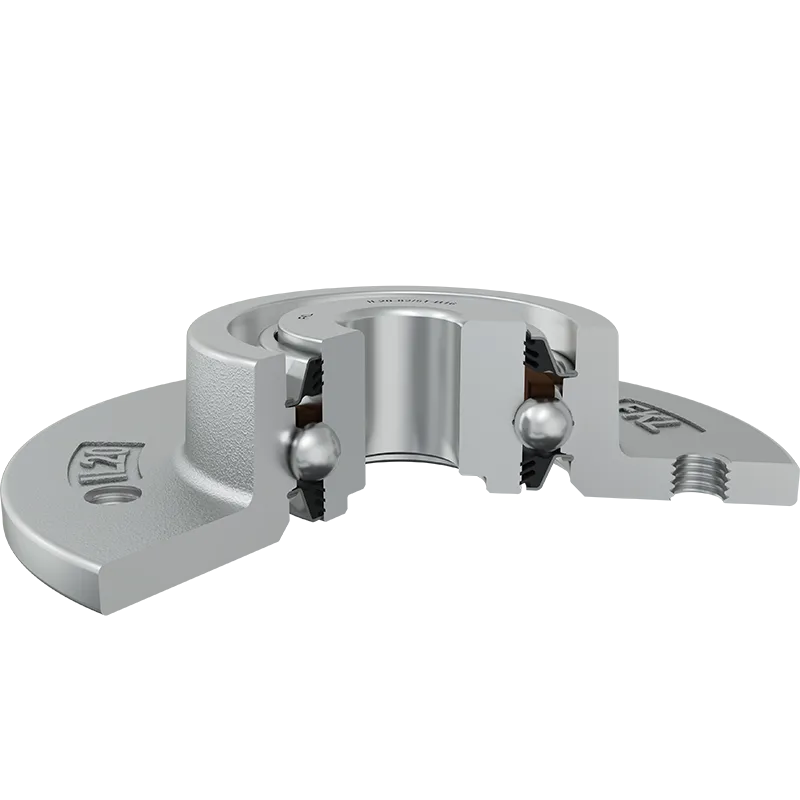

T SEAL / T SEAL (2T)
3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on
the both side.
