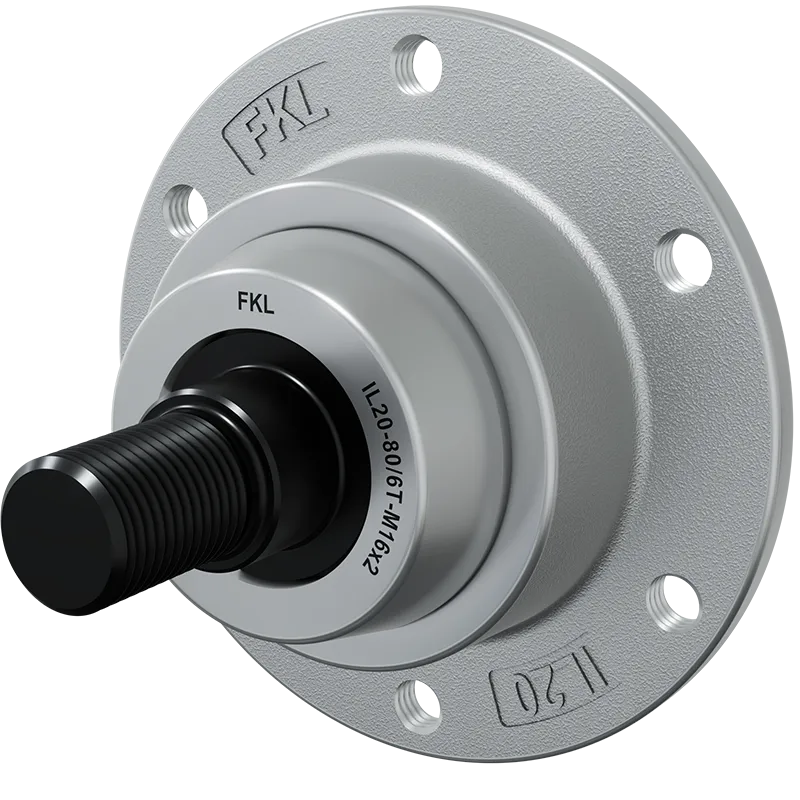

IL20-80/6T-M16x2
Technical specifications

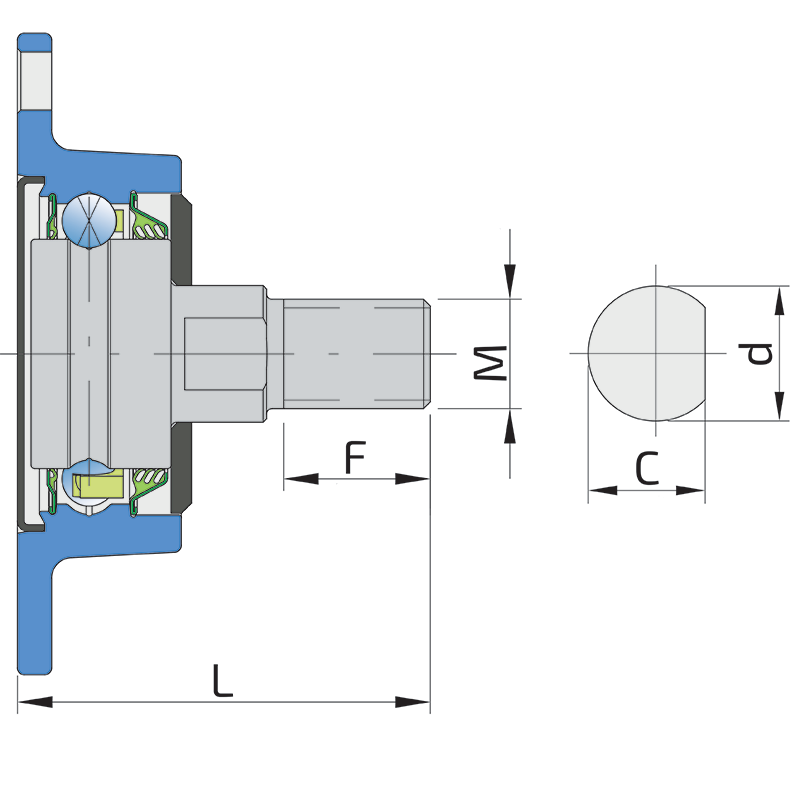

| J | Pitch circle diameter | 80 mm |
| D | Outside diameter | 94 mm |
| H/T | Hole/Thread | 6xM8x1.25 mm |
| d | Bore diameter | 20 mm |
| C | D-shape hole cut out dimension | 18.5 mm |
| M | Outher Thread | M16x2 mm |
| L | Total length | 71.6 mm |
| L1 | Total flange length | 38 mm |
| E | Length of D shape | 12.4 mm |
| F | Length of threaded part | 21.2 mm |
| kg | Mass | 0.73 kg |
| Cdyn | Dynamic load rating | 22 kN |
| Co | Static load rating | 15.2 kN |
| Pu | Fatigue load limit | 0.64 kN |

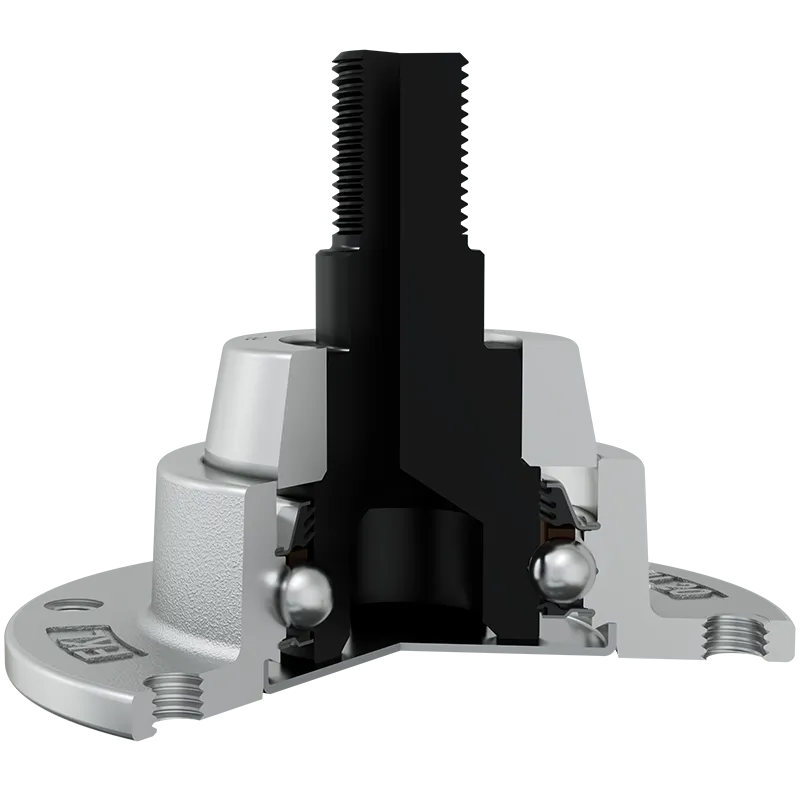

SHEET METAL SHIELD+S SEAL / T SEAL+STEEL PLATE
Sheet metal shield and S seal on the base side and 3-lip seal with Steel plate on the front side which is exposed to contaminants.
Sheet metal shield and S seal together with attached disc eliminates the possibility of contamination from the base side.
The 3-lip seal on the front side protects the bearing from contaminant penetration. The Steel plate protects the seal from mechanical damage.
Cross references
| PEER | HUB-20MM-X-ASSY-543 |
| BEDNAR | KM040306 |
