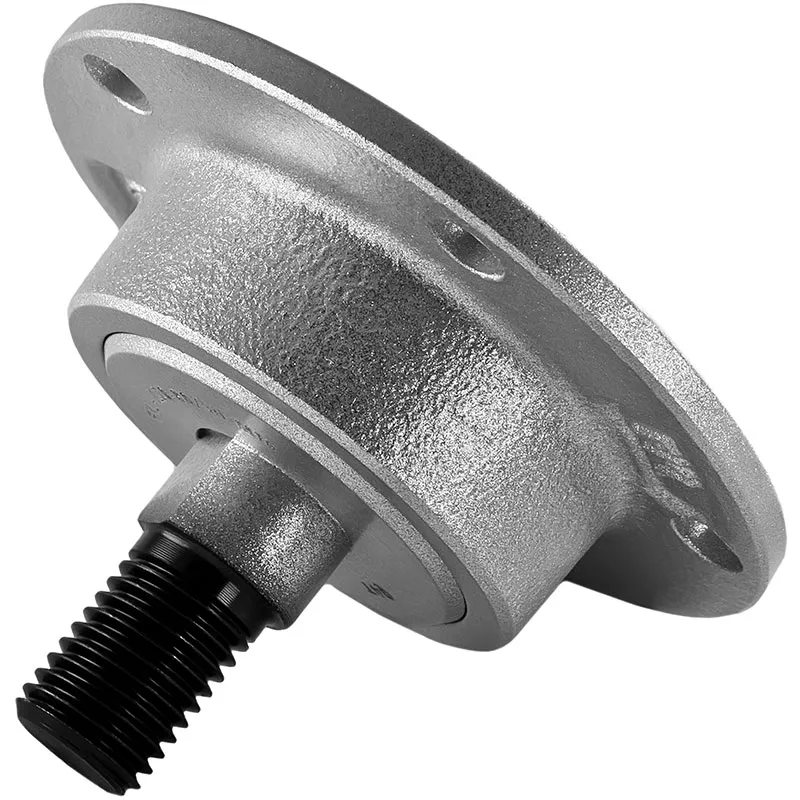

IL20-80/5H-M16

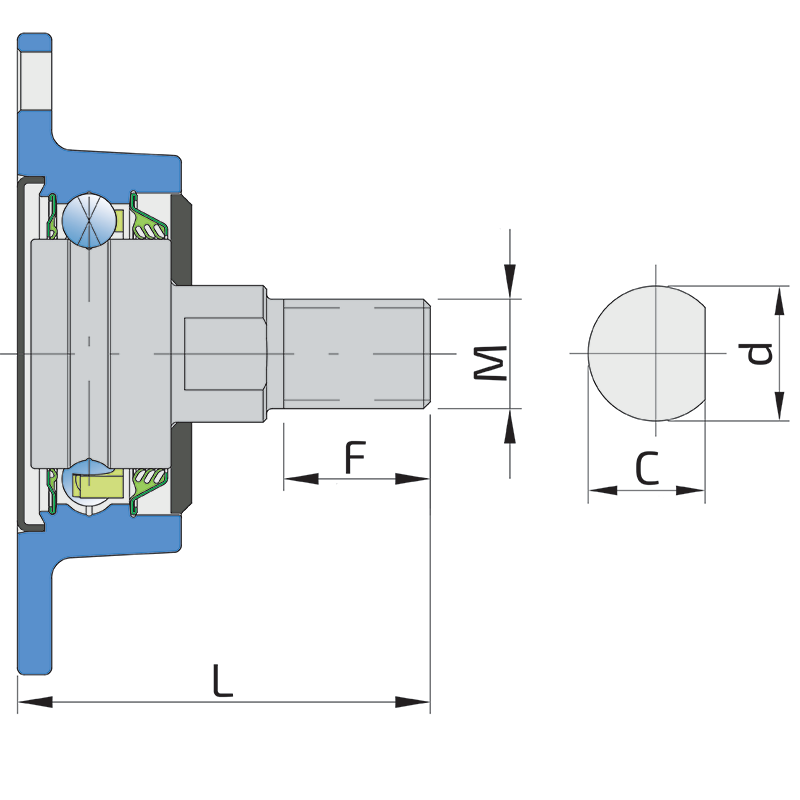

Technical specifications
| J | Pitch circle diameter | 80 mm |
| D | Outside diameter | 94 mm |
| H/T | Hole/Thread | 5x8.5 mm |
| d | Shaft diameter | 20 mm |
| M | Outher Thread | M16 mm |
| C | D-shape hole cut out dimension | 18.5 mm |
| L | Total length | 60.5 mm |
| L1 | Total flange length | 25.5 mm |
| E | Length of D shape | 13.5 mm |
| F | Length of threaded part | 21.5 mm |
| kg | Mass | 0.66 kg |
| Cdyn | Dynamic load rating | 22 kN |
| Co | Static load rating | 15.2 kN |
| Pu | Fatigue load limit | 0.64 kN |
SHEET METAL SHIELD+S SEAL / T SEAL+STEEL PLATE
Sheet metal shield and S seal on the base side and 3-lip seal with Steel plate on the front side which is exposed to contaminants.
Sheet metal shield and S seal together with attached disc eliminates the possibility of contamination from the base side.
The 3-lip seal on the front side protects the bearing from contaminant penetration. The Steel plate protects the seal from mechanical damage.
Cross references
| PEER | HUB-20MM-X |
| KERNER | 078796 |
| KVERNELAND | A135062100 |
| CAVALLERETTI GROUP | IL20-80/5H-M16 |
| CHECCHI&MAGLI | IL20-80/5H-M16 |
| OLIVER AGRO | IL20-80/5H-M16 |
| UBALDI | IL20-80/5H-M16 |
| HERMANOS BAGUES MAQUINARIA AGRICOLA | IL20-80/5H-M16 |
| MEVISA CB | IL20-80/5H-M16 |
| TALLER AGRICOLA GUERRA | IL20-80/5H-M16 |
Installations
| KVERNELAND | TURBO |
| KVERNELAND | TURBO T |
| KVERNELAND | ENDURO |
| KVERNELAND | ENDURO PRO |
| KVERNELAND | KULTISTRIP |
| CAVALLERETTI GROUP | Bio guard |
| CAVALLERETTI GROUP | Bio Sarchio |
| CAVALLERETTI GROUP | Tracker |
| OLIVER AGRO | Rotostark |
