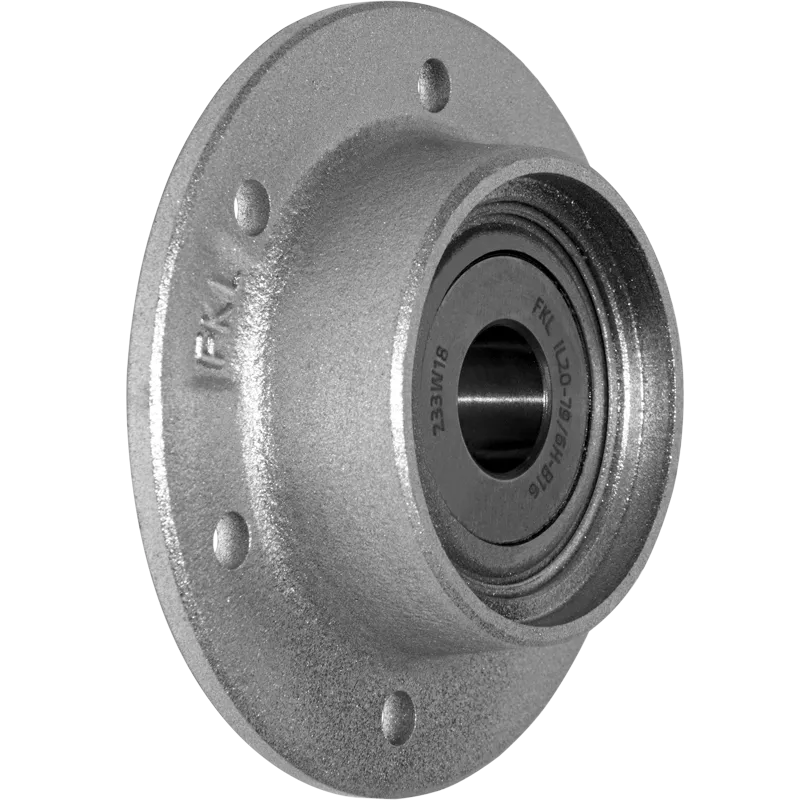

IL20-79/6H-B16

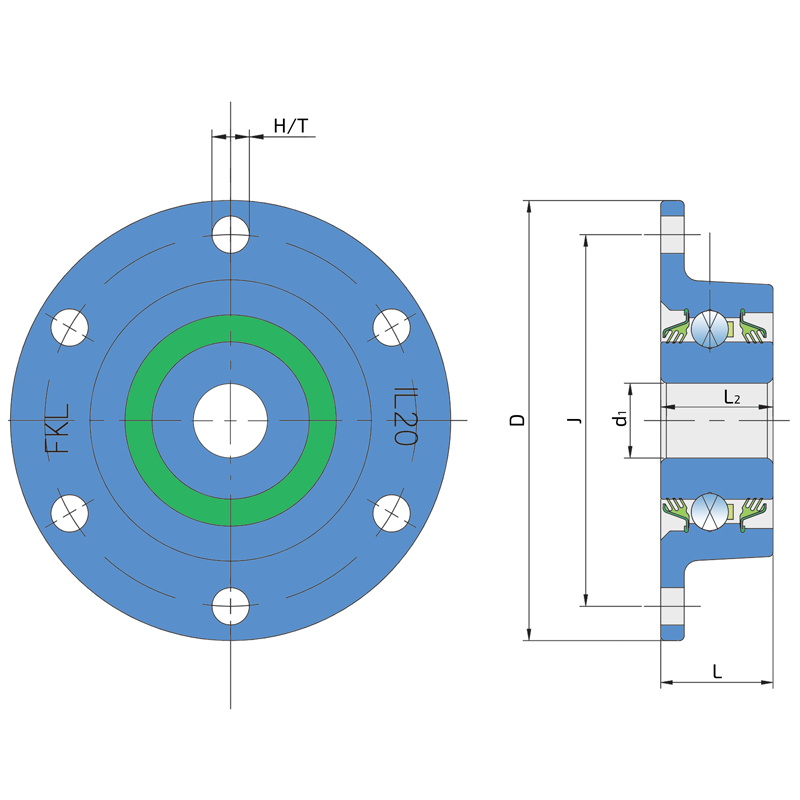

Technical specifications
| J |
Pitch circle diameter |
79.4 mm |
| D |
Outside diameter |
94 mm |
| H/T |
Hole/Thread |
6x8.1 mm |
| d1 |
Bore diameter |
16 mm |
| L |
Total length |
24 mm |
| L2 |
Bearing width |
24 mm |
| kg |
Mass |
0.5 kg |
| Cdyn |
Dynamic load rating |
22 kN |
| Co |
Static load rating |
15.2 kN |
| Pu |
Fatigue load limit |
0.64 kN |

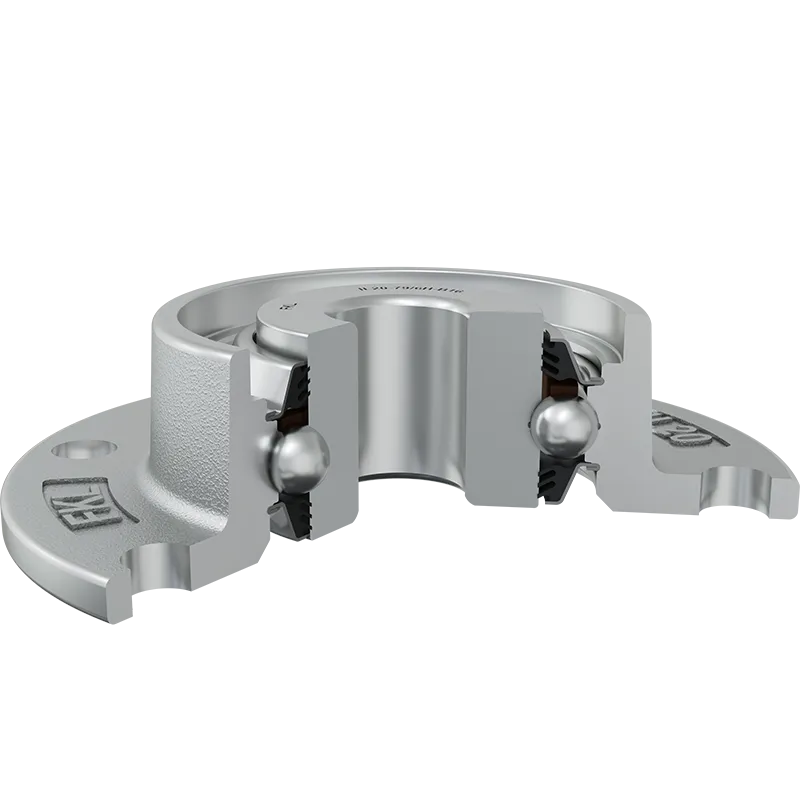

T SEAL / T SEAL (2T)
3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on
the both side.
Cross references
| VAGRO |
IL20-79/6H-B16 |
| ALLEN CUSTOM DRILLS |
IL20-79/6H-B16 |
