IL20-76.2/6H-B16-24.608
Technical specifications
| J | Pitch circle diameter | 76.2 mm |
| D | Outside diameter | 96 mm |
| H/T | Hole/Thread | 6x9.52 mm |
| L1 | Total flange length | 21 mm |
| L2 | Bearing width | 24.608 mm |
| d1 | Bore diameter | 16.129 mm |
| α | Contact angle | 25 ° |
| kg | Mass | 0.501 kg |
| Cdyn | Dynamic load rating | 22 kN |
| Co | Static load rating | 15.2 kN |
| Pu | Fatigue load limit | 0.638 kN |

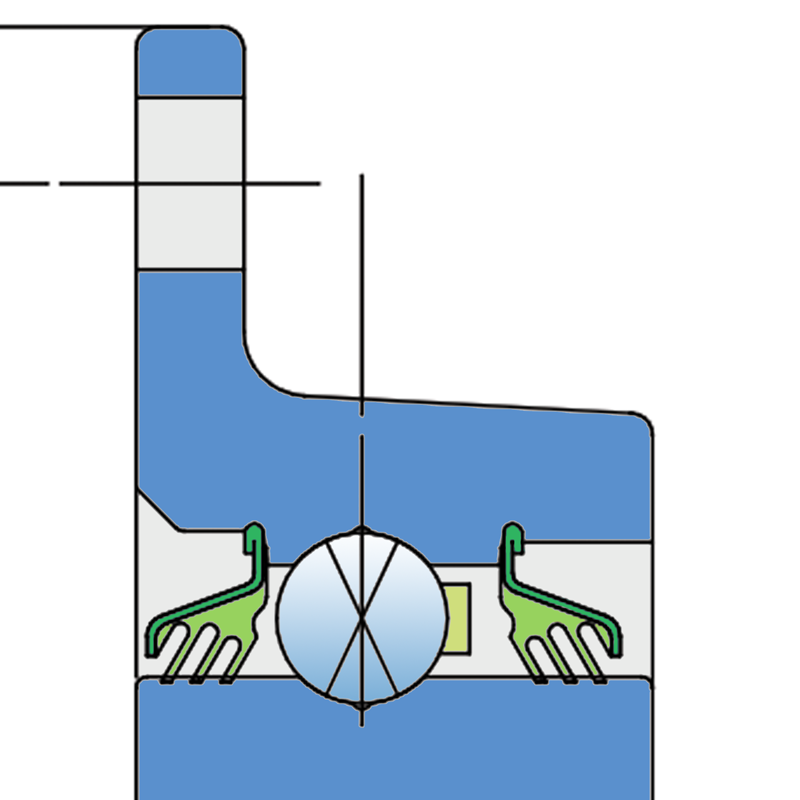

T SEAL / T SEAL (2T)
3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
.png)
Cross references
| SOLA | IL20-76.2/6H-B16-24.608 |
