IL20-75/6H-B17+GK
Technical specifications
| J | Pitch circle diameter | 75 mm |
| D | Outside diameter | 94 mm |
| H/T | Hole/Thread | 6x6.4 mm |
| d1 | Bore diameter | 17 mm |
| L | Total length | 37.7 mm |
| L1 | Total flange length | 24 mm |
| L2 | Bearing width | 18 mm |
| kg | Mass | 0.75 kg |
| Cdyn | Dynamic load rating | 22 kN |
| Co | Static load rating | 15.2 kN |
| Pu | Fatigue load limit | 0.64 kN |

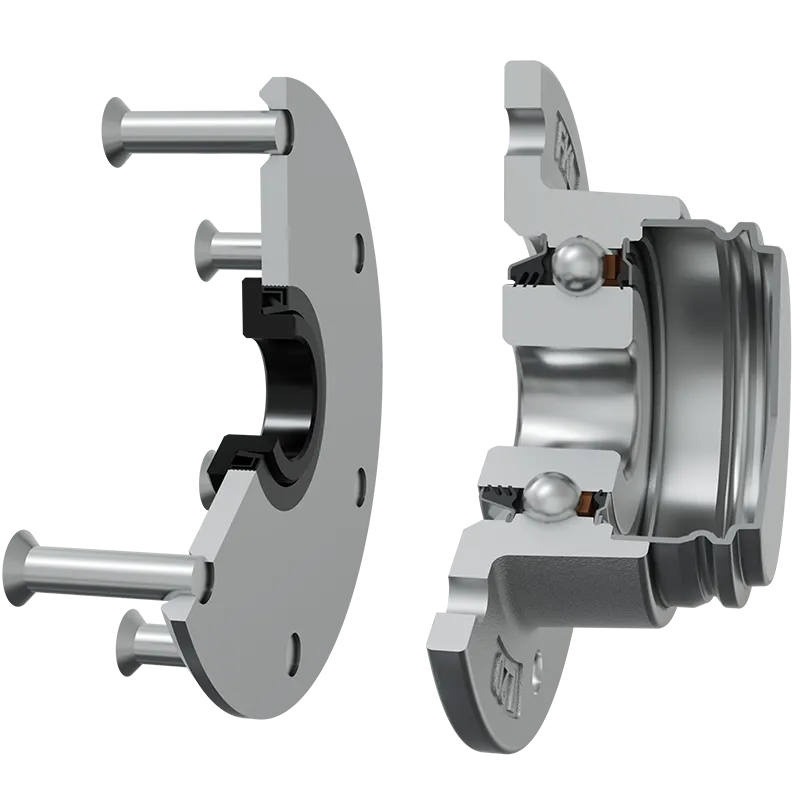

T SEAL / S SEAL+METAL PROTECTIVE CAP
3-lip seal on the base side and the S seal with Metal protective cap on the front side.
3-lip seal on the base side also protected with attached disc, protecting the bearing from contamination.
S seal with a Metal protective cap on the front side eliminates bearing contaminants.
.png)
Cross references
| GASPARDO | 15223651 |
| GASPARDO | G15226600R |
Installations
| GASPARDO | Sara |
| GASPARDO | Alitalia |
| GASPARDO | Mega 600 |
| GASPARDO | SP Dorada |
