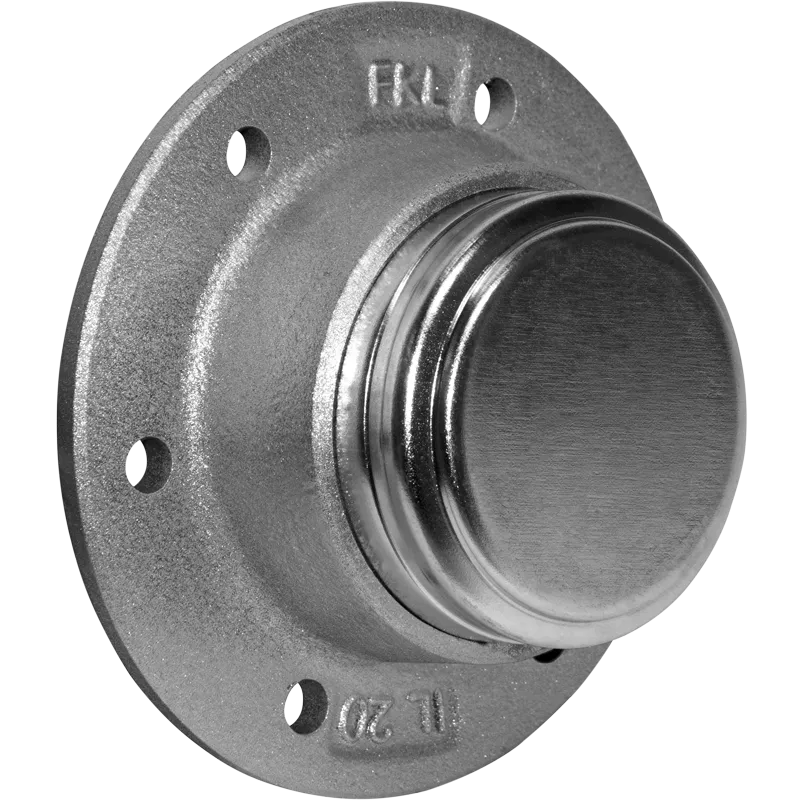

IL20-73/6H-B16

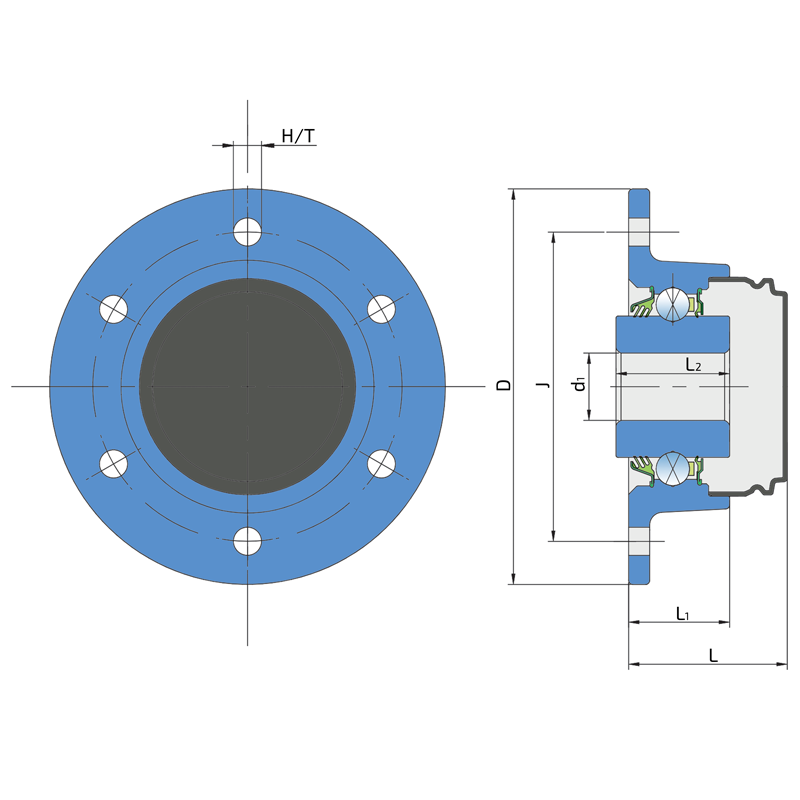

Technical specifications
| J | Pitch circle diameter | 73.5 mm |
| D | Outside diameter | 94 mm |
| H/T | Hole/Thread | 6x6.4 mm |
| d1 | Bore diameter | 16 mm |
| L | Total length | 37.7 mm |
| L1 | Total flange length | 24 mm |
| L2 | Bearing width | 27 mm |
| kg | Mass | 0.75 kg |
| Cdyn | Dynamic load rating | 22 kN |
| Co | Static load rating | 15.2 kN |
| Pu | Fatigue load limit | 0.638 kN |

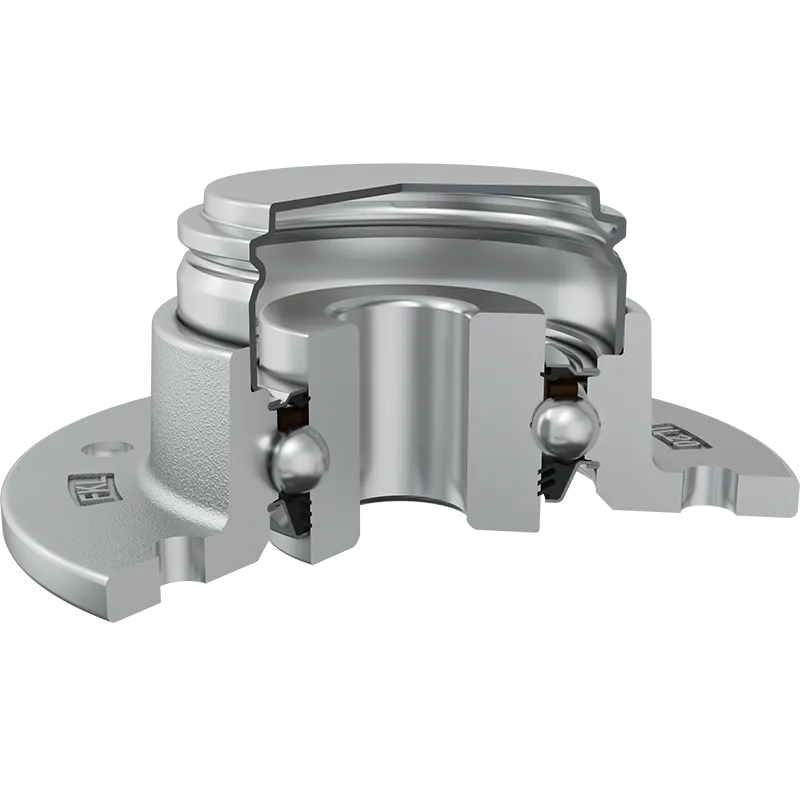

T SEAL / S SEAL+METAL PROTECTIVE CAP
3-lip seal on the base side and the S seal with Metal protective cap on the front side.
3-lip seal on the base side also protected with attached disc, protecting the bearing from contamination.
S seal with a Metal protective cap on the front side eliminates bearing contaminants.
.png)
Cross references
| HORSCH | 24156400 |
| SEMBRADORAS GIL | IL20-73/6H-B16 |
