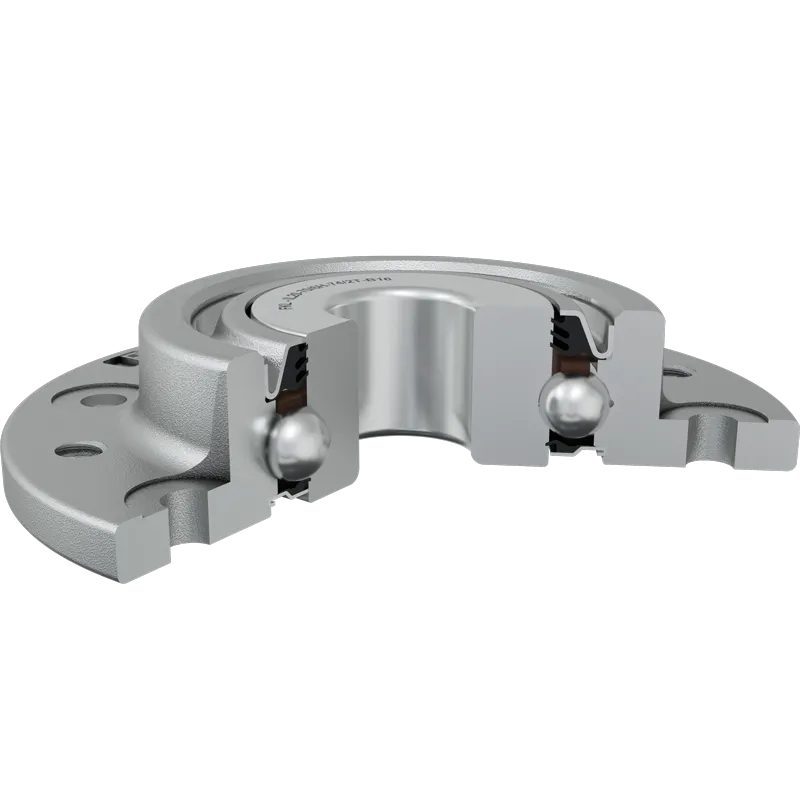

IL20-70/6H-74/2T-B16
Technical specifications
| J | Pitch circle diameter | 70 mm |
| J1 | Pitch circle diameter | 74 mm |
| D | Outside diameter | 89 mm |
| H/T | Hole/Thread | 6x5.4 mm |
| d1 | Bore diameter | 16.053 mm |
| L1 | Total flange length | 18 mm |
| L2 | Bearing width | 18.669 mm |
| α | Contact angle | 25 ° |
| kg | Mass | 0.429 kg |
| Cdyn | Dynamic load rating | 22 kN |
| Co | Static load rating | 15.2 kN |
| Pu | Fatigue load limit | 0.638 kN |

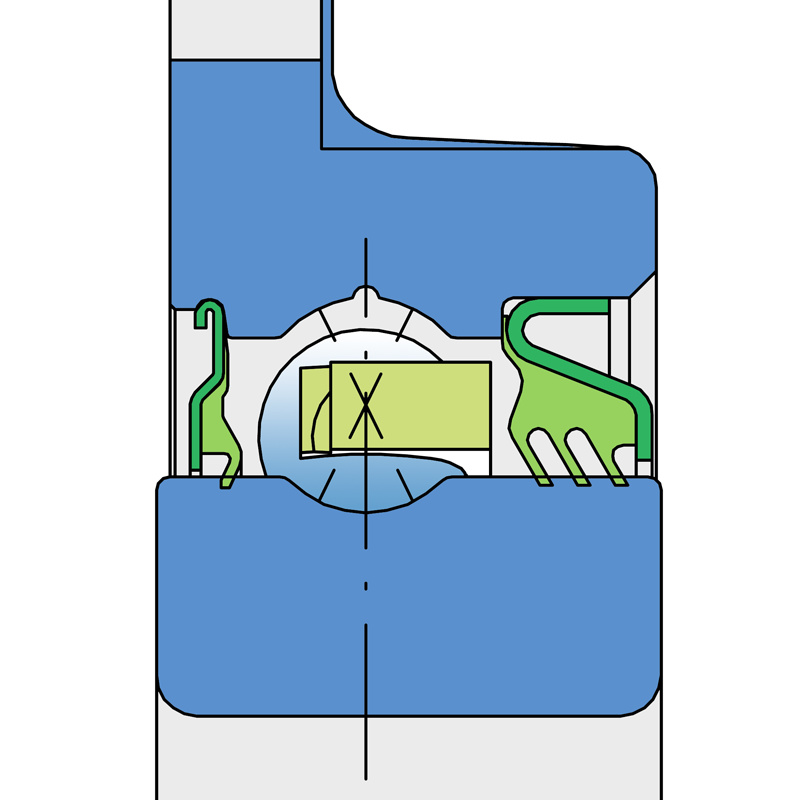

S SEAL / T SEAL
S seal on the base side and the 3-lip seal on the front side.
S seal on the base side also protected with attached disc, protecting the bearing from contamination.
3-lip seal on the front side eliminates bearing contaminants.
Cross references
| HORSCH | 00310207 |
Installations
| HORSCH | SW 2800 S |
| HORSCH | Sprinter ST |
| HORSCH | Pronto 4 DC Starr |
| HORSCH | Pronto 6 DC |
| HORSCH | Pronto 6 AS |
| HORSCH | Pronto 8 DC |
| HORSCH | Pronto 9 DC |
| HORSCH | Pronto 6 KE |
| HORSCH | Pronto 8 RX |
| HORSCH | Pronto 9 RX |
| HORSCH | Pronto 3 DC |
| HORSCH | Pronto 4 DC |
