IL20-70/6T-B12

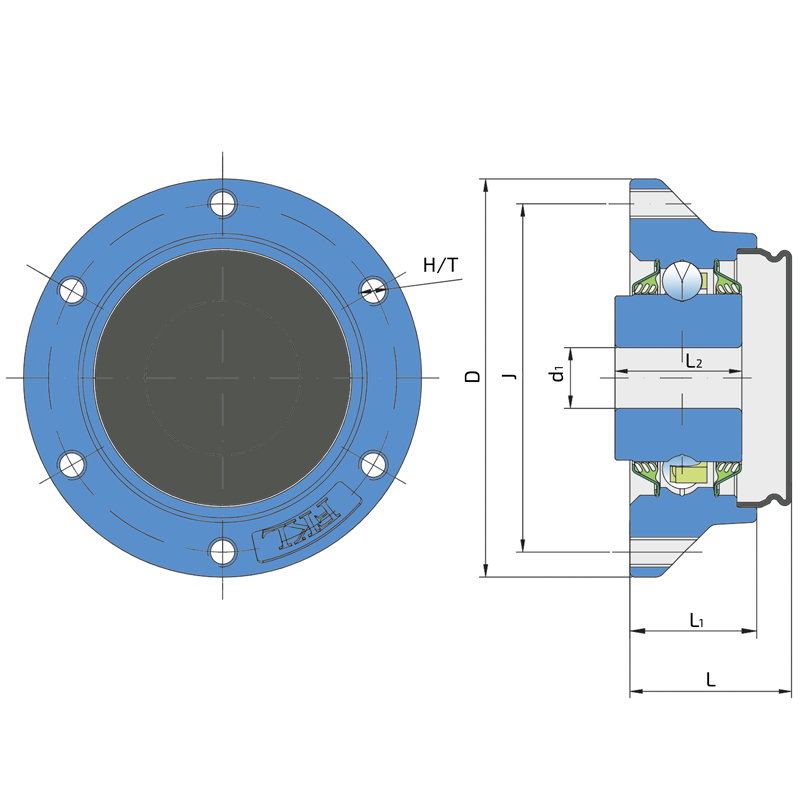

Technical specifications
| J |
Pitch circle diameter |
70 mm |
| D |
Outside diameter |
80 mm |
| H/T |
Hole/Thread |
6xM6 mm |
| d1 |
Bore diameter |
12.2 mm |
| L |
Total length |
32.5 mm |
| L1 |
Total flange length |
25.5 mm |
| L2 |
Bearing width |
25.5 mm |
| kg |
Mass |
0.59 kg |
| Cdyn |
Dynamic load rating |
22 kN |
| Co |
Static load rating |
15.2 kN |
| Pu |
Fatigue load limit |
0.638 kN |
T SEAL / T SEAL+METAL PROTECTIVE CAP
3-lip seal on the both side with Metal protective cap on the front side.
3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
Cross references
| LEMKEN |
5821020 |
| LEMKEN |
5554520 |
