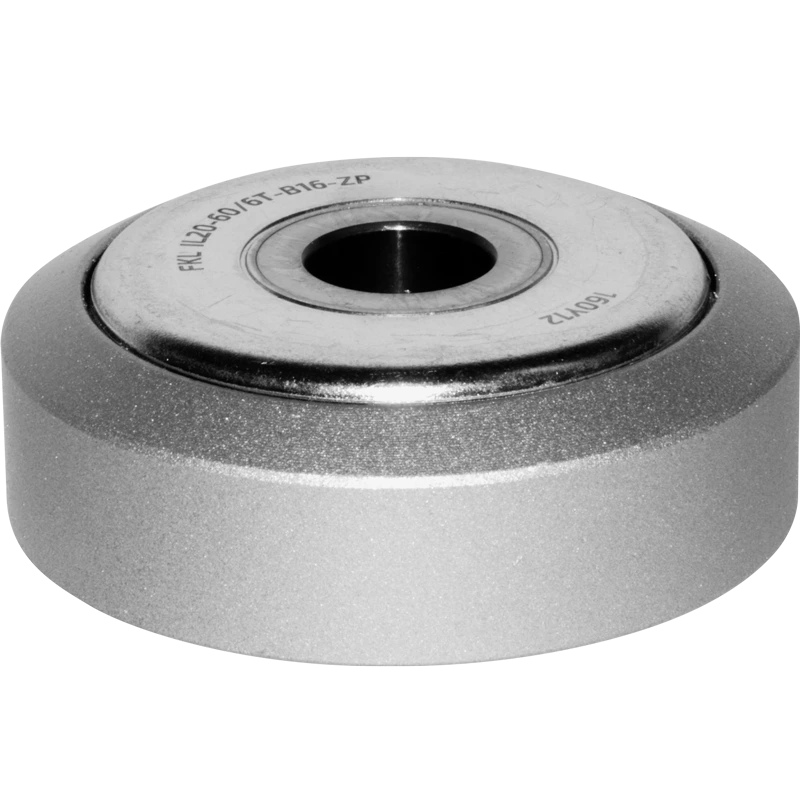

IL20-60/6T-B16-ZP

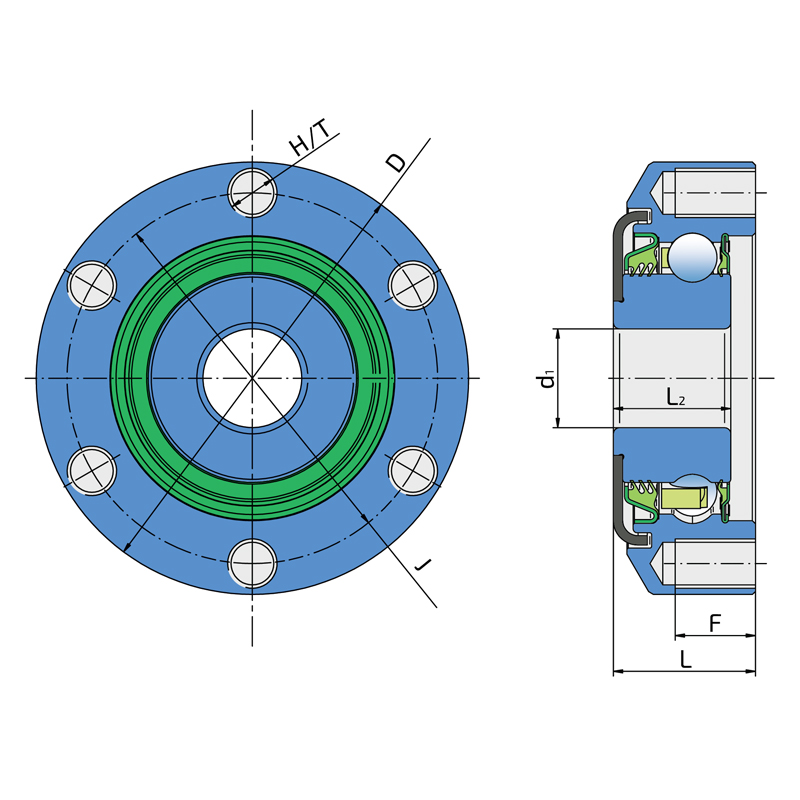

Technical specifications
| J | Pitch circle diameter | 60 mm |
| D | Outside diameter | 70 mm |
| H/T | Hole/Thread | 6xM8 mm |
| F | Length of threaded part | 13 mm |
| d1 | Bore diameter | 16 mm |
| L | Overall length | 23 mm |
| L2 | Bearing width | 19 mm |
| kg | Mass | 0.45 kg |
| Cdyn | Dynamic load rating | 22 kN |
| Co | Static load rating | 15.2 kN |
| Pu | Fatigue load limit | 0.638 kN |

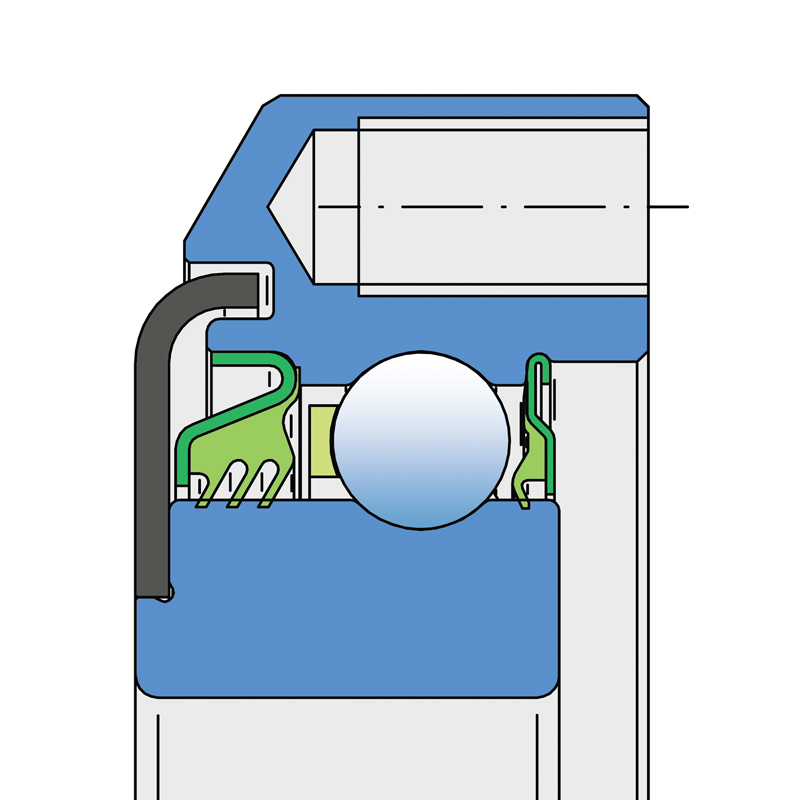

METAL SHIELD + T SEAL / S SEAL

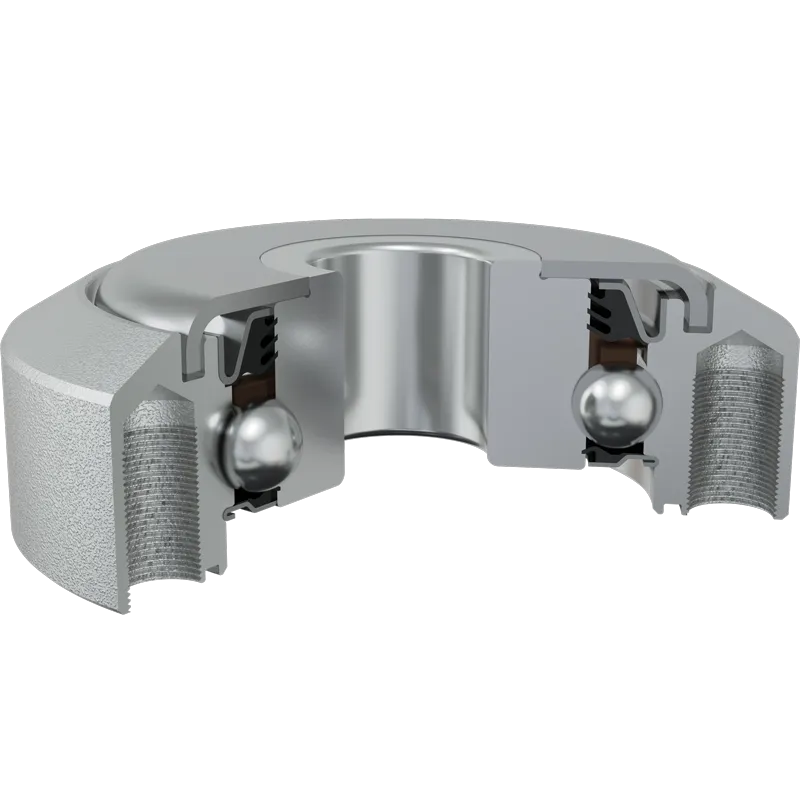

The combination of a metal shield, 3-lip seal on the front side, and an S-seal on the base side provides reliable protection of the bearing against contamination.
The S-seal on the base side and the 3-lip seal on the front side protect the bearing from the ingress of dirt, mud, dust, and water in demanding operating conditions.
This solution ensures a long bearing service life and reduces maintenance requirements.
Cross references
| GASPARDO | F04010439R |
| SKF | AGHU 1660X6F-2L-V01 |
