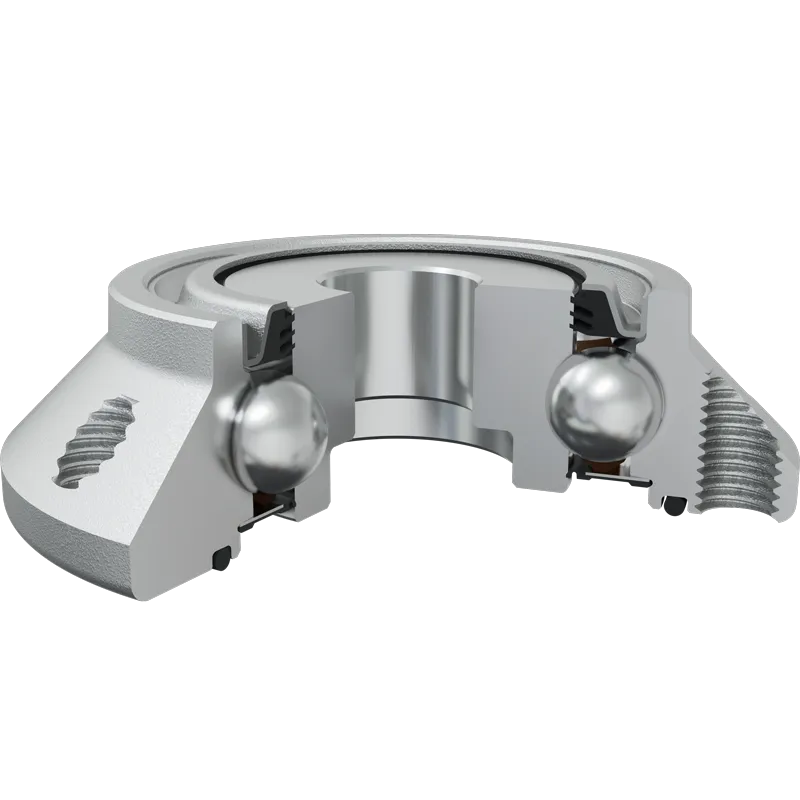

IL20/305-70/6T-B16
Technical specifications
| J |
Pitch circle diameter |
70 mm |
| D |
Outside diameter |
81 mm |
| H/T |
Hole/Thread |
6xM8 mm |
| d |
Bore diameter |
16.2 mm |
| d1 |
Bore diameter |
25 mm |
| L |
Total length |
22 mm |
| kg |
Mass |
0.45 kg |
| Cdyn |
Dynamic load rating |
34.5 kN |
| Co |
Static load rating |
54.8 kN |
| Pu |
Fatigue load limit |
2.302 kN |

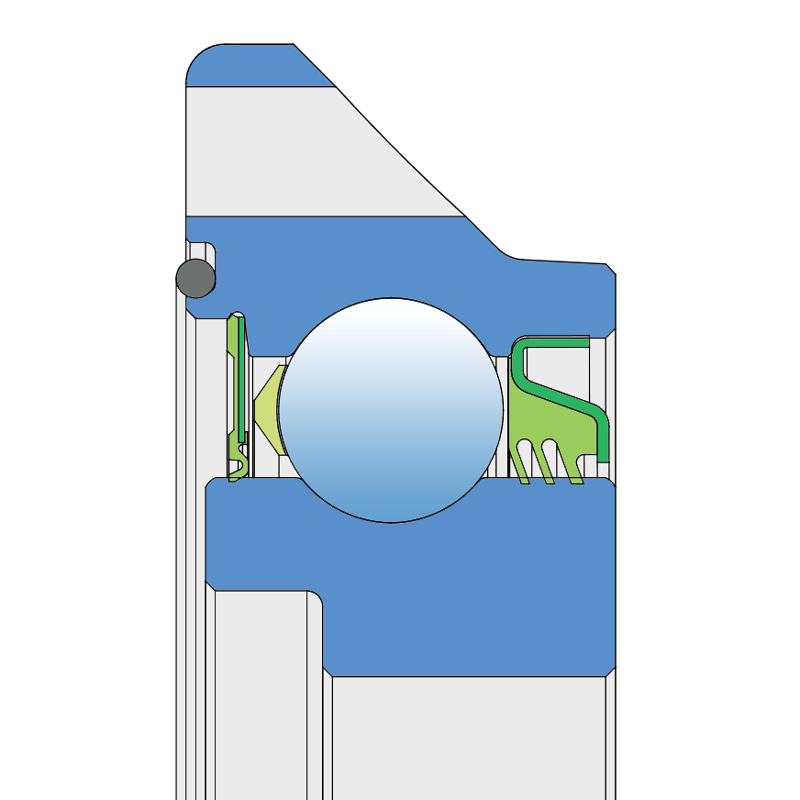

O-RING + RS SEAL / T SEAL
O-ring with an RS seal on the base side and the 3-lip seal on the front side.
O-ring with an RS seal on the base is also protected with an attached disc, protecting the bearing from contamination.
3-lip seal on the front side eliminates bearing contaminants.
