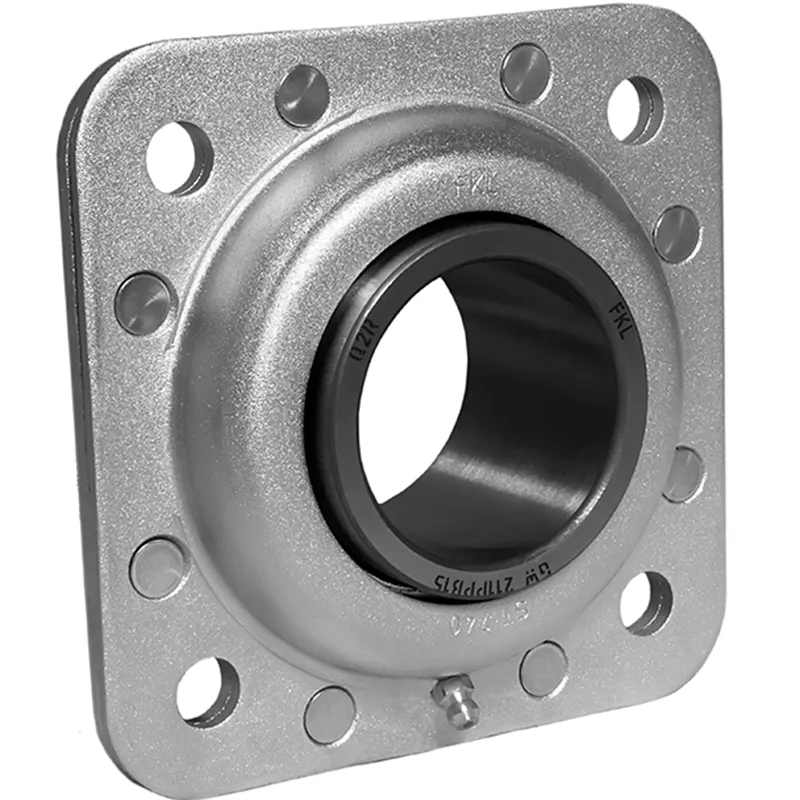

GWST 211PPB15

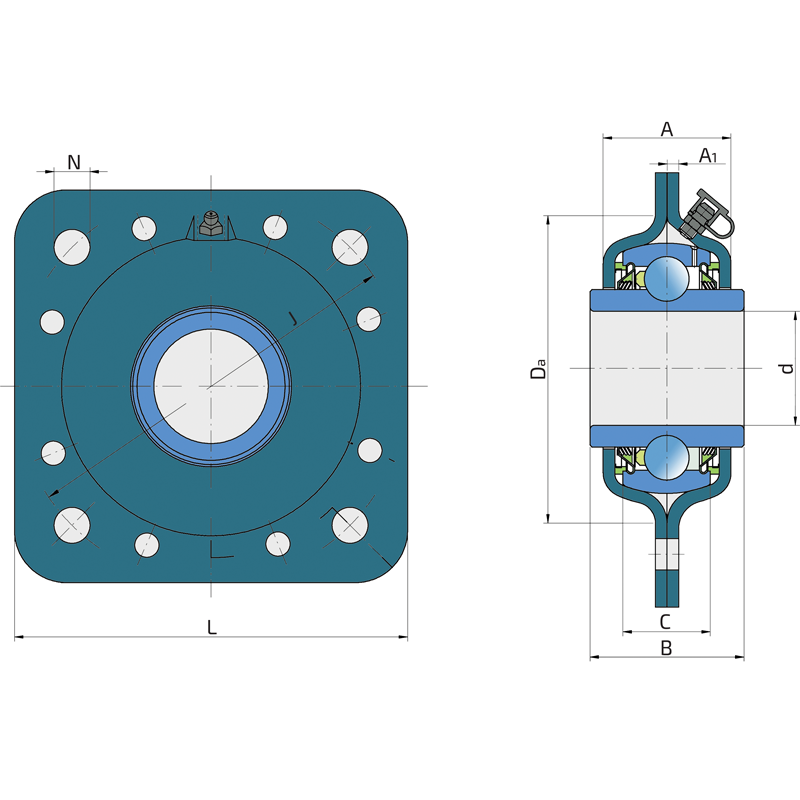

Technical specifications
| d | Bore diameter | 2.1882 inch |
| d | Bore diameter | 55.58 mm |
| B | Width inner ring | 55.55 mm |
| C | Width outer ring | 25 mm |
| Da | Centering diameter | 113 mm |
| L | Overall length | 140 mm |
| A | Distance from the housing flange to the front of the inner ring of the bearing | 44.7 mm |
| A1 | Width of the top of the housing | 4 mm |
| J | Pitch circle diameter | 140 mm |
| N | Diameter of attachment slot | 13.5 mm |
| Fr | Radial load | 2200 lbs |
| Fr | Radial load | 9.8 kN |
| Fa | Axial load | 1150 lbs |
| Fa | Axial load | 5.1 kN |
| kg | Mass | 4.51 lbs |
| kg | Mass | 2.05 kg |
| Cdyn | Dynamic load rating | 43.5 kN |
| Co | Static load rating | 29 kN |
| Pu | Fatigue load limit | 1.218 kN |

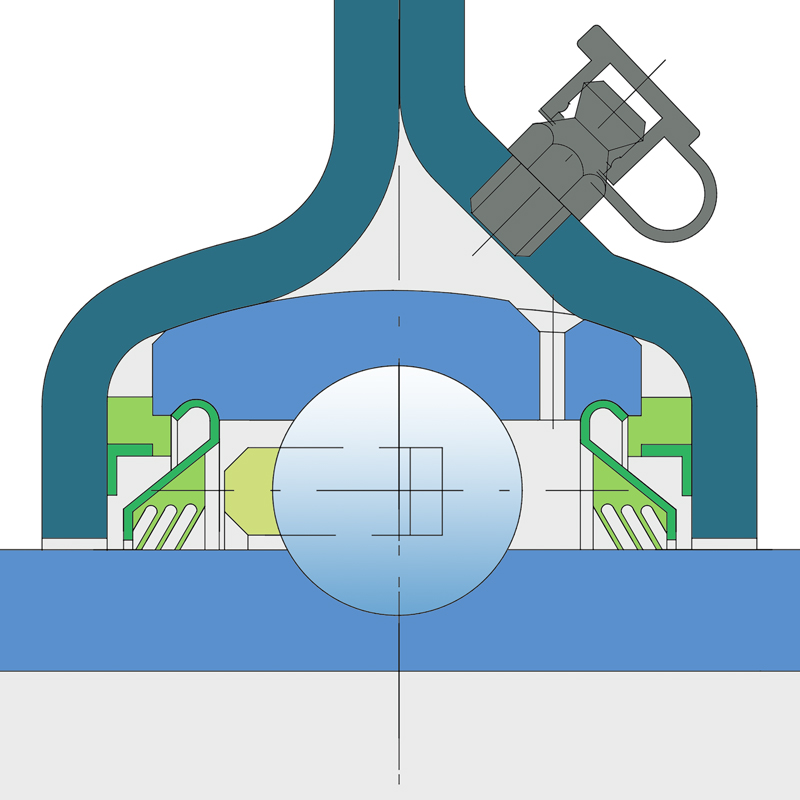

RUBBER PLUG + T SEAL / T SEAL + RUBBER PLUG

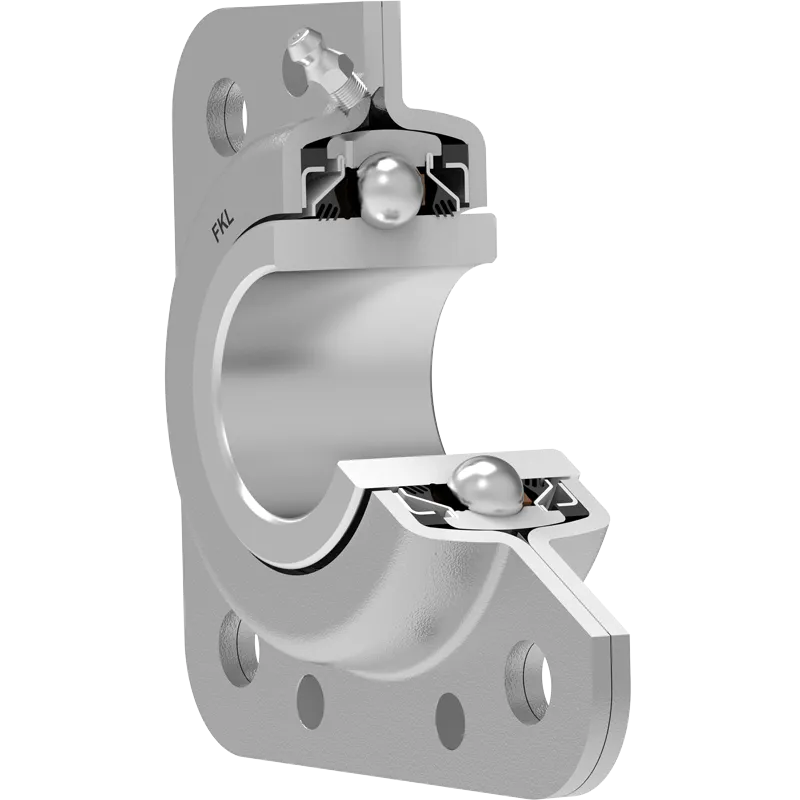

3-lip seal seal on both sides provide long lasting protection of the bearing against the penetration of contaminants. Rubber plugs are protecting the area between the bearing and sheet metal housing.
Cross references
| BEDNAR | KM040159 |
| PEER | FD211K61-2-3/16RD |
| OMIKRON | GWST 211PPB15 |
| TANJIRACA KOMERC | GWST 211PPB15 |
| NTN | FD21RBA |
| FAFNIR | DHU2.3/16R-211 |
| BCA | FD21RBA |
| FAG | ST740/GW211PPB15 |
| China | ST740 |
| FOP | GWST 211PPB15 |
| NTN | FD211RBA |
| KABAT | FD211RBA |
