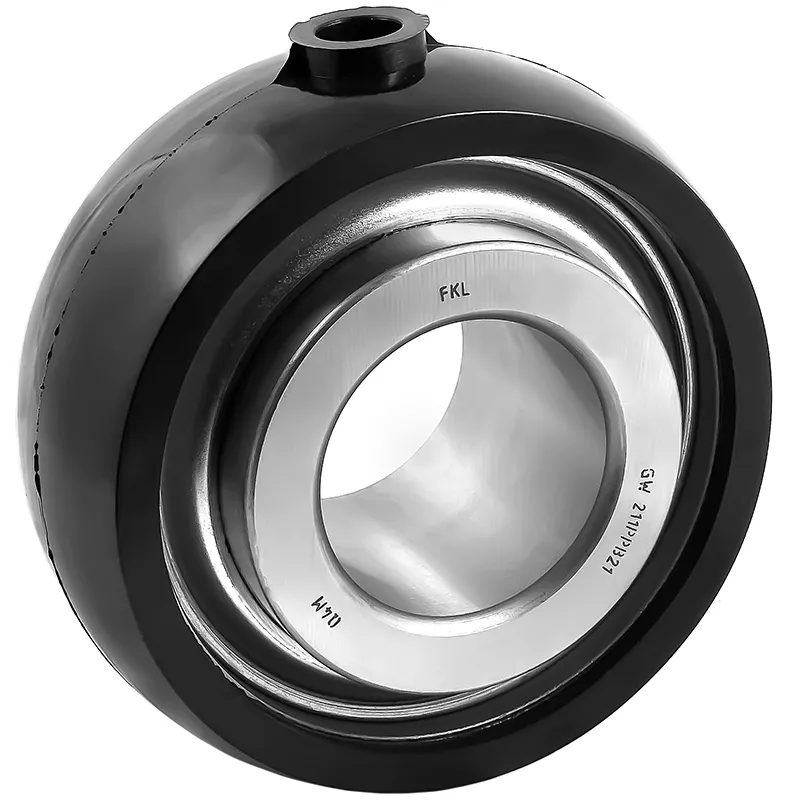

GWR 211PPB21
Technical specifications

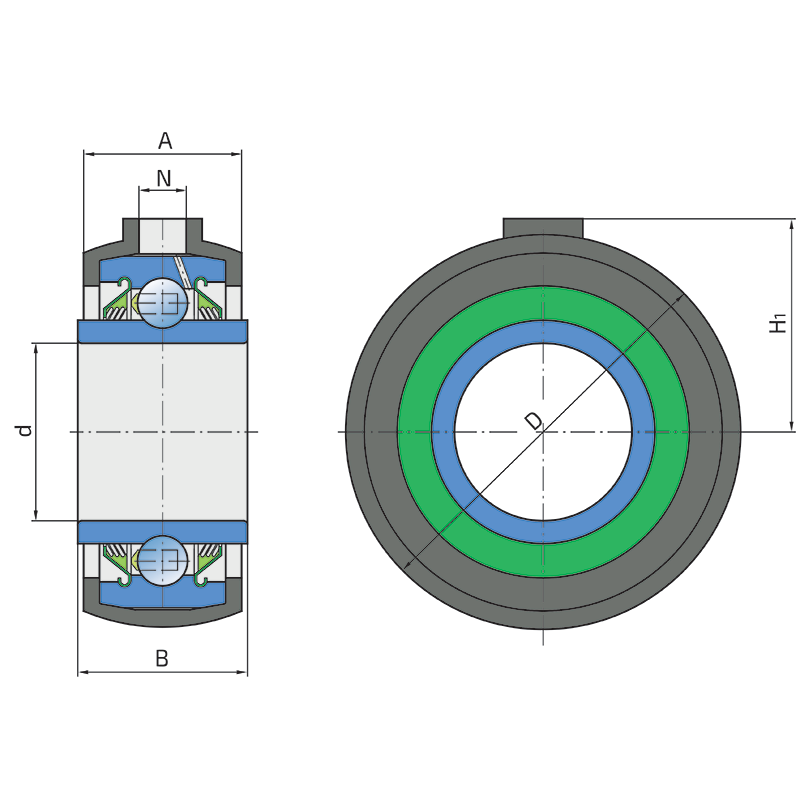

| d | Bore diameter | 45.212 mm |
| d | Bore diameter | 1.78 inch |
| D | Outside diameter | 113 mm |
| A | Housing width | 44.7 mm |
| B | Width inner ring | 53.975 mm |
| B | Width inner ring | 2.125 inch |
| H1 | Distance from the contact surface to the bearing axis | 60.5 mm |
| N | Hole diameter | 12.7 mm |
| kg | Mass | 1.62 kg |
| Cdyn | Dynamic load rating | 43.5 kN |
| Co | Static load rating | 29 kN |
| Pu | Fatigue load limit | 1.218 kN |

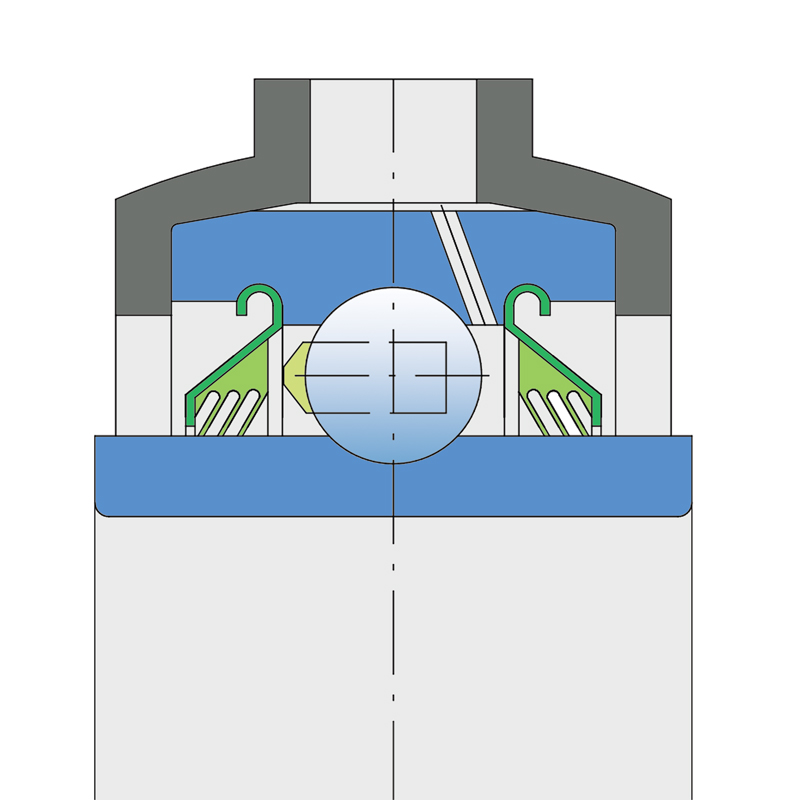

T SEAL / T SEAL (2T)
3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
Cross references
| KUHN | 40-173 |
| GREAT PLAINS | 822-026C |
| KUHN | 2410-10-0 |
| PEER | GW211PPB21+BR211RH |
| KUHN | 2410-11-0 |
| KUHN | CDS211TTR23N/3A |
| KRAUSE | 2410-11-0 |
| NTN | CDS211TTR25 |
| KUHN | Q4008360 |
| KRAUSE | Q4008370 |
| KABAT | P2410110 |
| SKF | PER.GW211RPPB21-BR |
Installations
| KRAUSE | Land Builder 4880 series |
| GREAT PLAINS | 1500TM |
| GREAT PLAINS | 2400TT Series II |
| GREAT PLAINS | 3000TM |
| GREAT PLAINS | 4000TC |
| GREAT PLAINS | 4000TM |
| GREAT PLAINS | 4000TT Series I |
| GREAT PLAINS | 4000 Series II |
| GREAT PLAINS | 4336DH |
| GREAT PLAINS | TC5323 |
| GREAT PLAINS | TCN5313 |
| KRAUSE | Discs 1740-1767 |
| KRAUSE | Discs 2400-2495 |
| KRAUSE | Discs 5812-5824 |
| KRAUSE | Discs 8300 |
| KRAUSE | Excelerator 8000-14 |
| KRAUSE | Excelerator 8000-20 |
| KRAUSE | Excelerator 8000-25 |
| KRAUSE | Excelerator 8000-30 |
| KRAUSE | Excelerator 8000-40 |
| KRAUSE | Excelerator 8000-50 |
