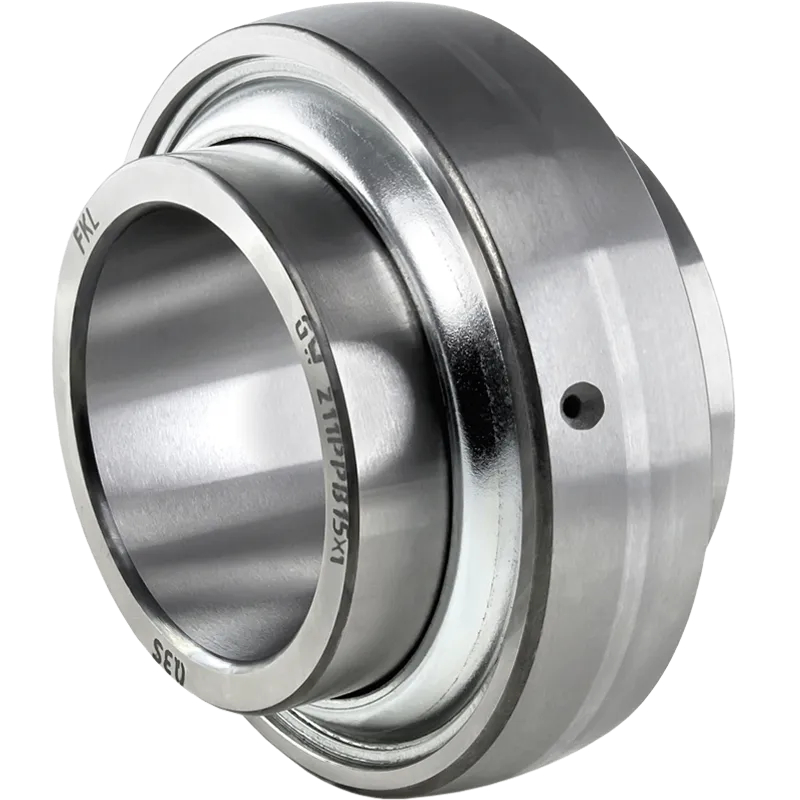

GW 211PPB15X1

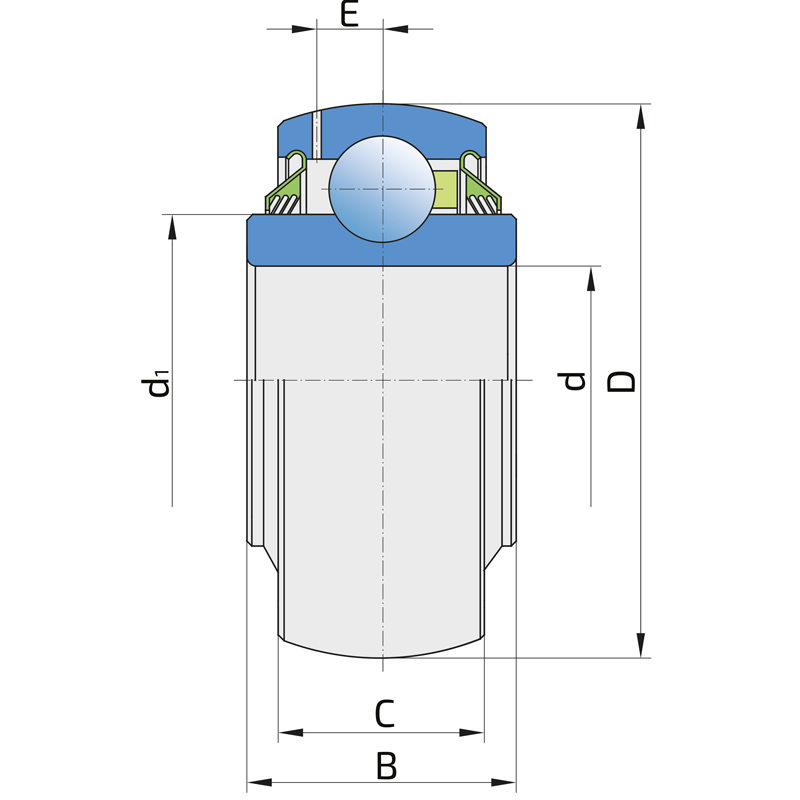

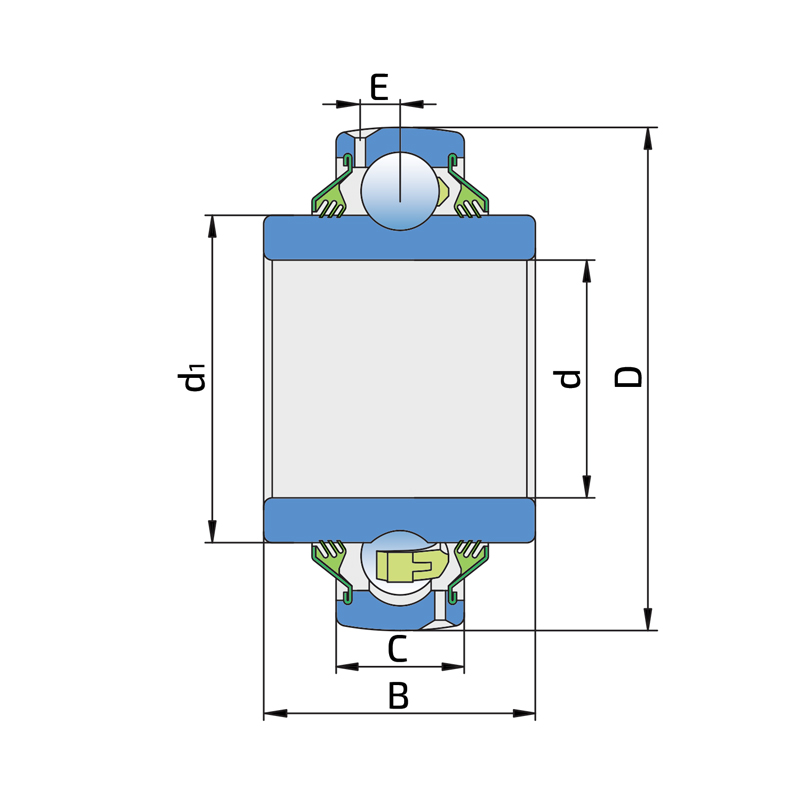

Technical specifications
| d | Bore diameter | 2.1878 inch |
| d | Bore diameter | 55.58 mm |
| D | Outside diameter | 3.937 inch |
| D | Outside diameter | 100 mm |
| B | Width inner ring | 2.187 inch |
| B | Width inner ring | 55.55 mm |
| C | Width outer ring | 0.984 inch |
| C | Width outer ring | 25 mm |
| d1 | Outer diameter inner ring | 2.72 inch |
| d1 | Outer diameter inner ring | 69.1 mm |
| E | Distance from raceway centre to the hole for lubrication | 0.28 inch |
| E | Distance from raceway centre to the hole for lubrication | 7.1 mm |
| kg | Mass | 2 lbs |
| kg | Mass | 0.91 kg |
| Cdyn | Dynamic load rating | 9700 lbs |
| Cdyn | Dynamic load rating | 43.5 kN |
| Co | Static load rating | 6500 lbs |
| Co | Static load rating | 29 kN |
| Pu | Fatigue load limit | 1.218 kN |

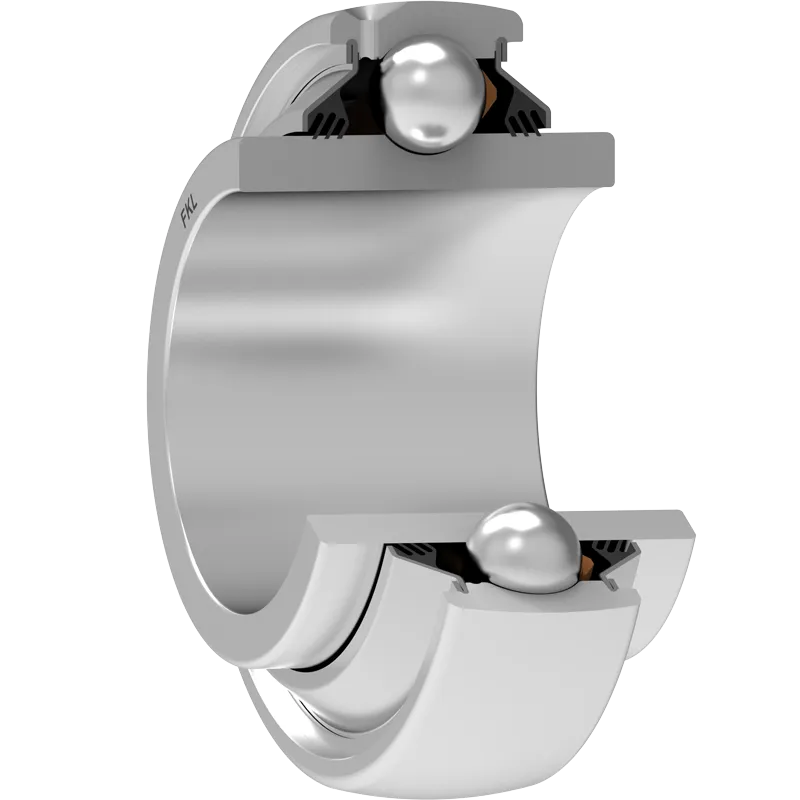

T SEAL / T SEAL (2T)
3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
