GW 211PP4
Technical specifications

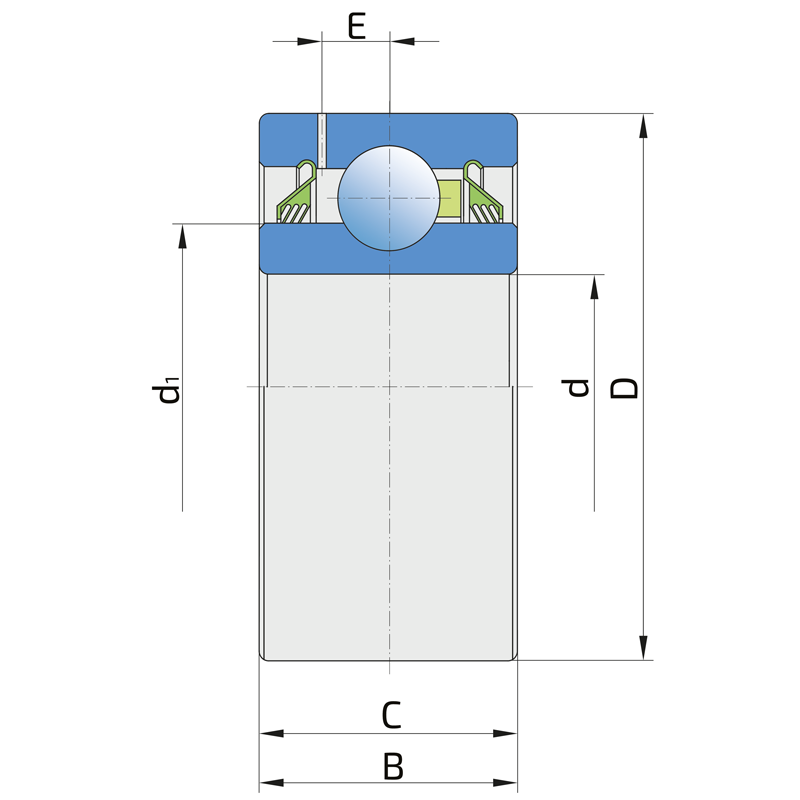

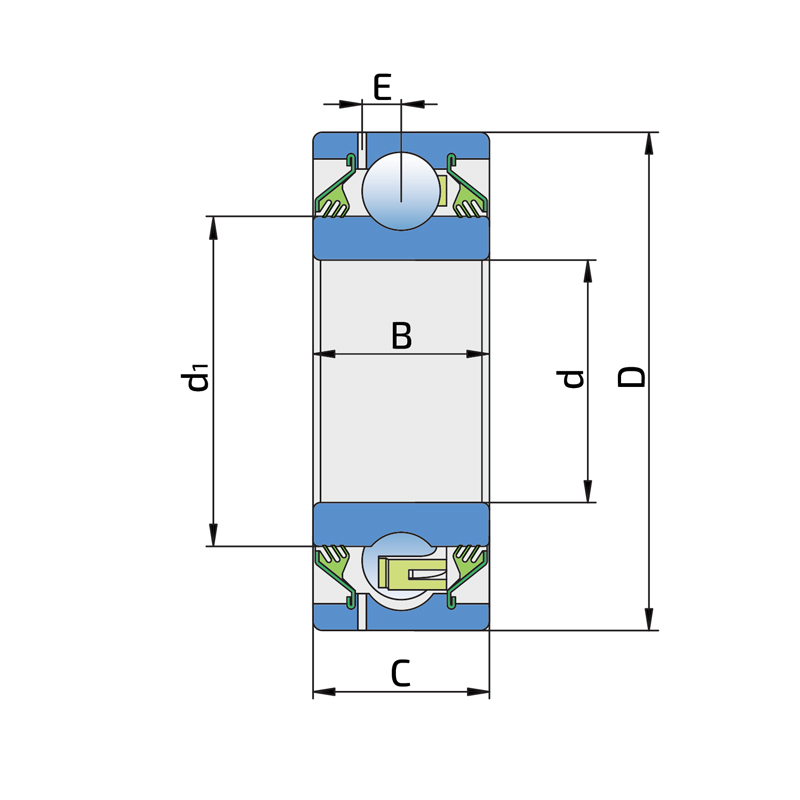

| d |
Bore diameter |
1.6598 inch |
| kg |
Mass |
3 lbs |
| Co |
Static load rating |
29 kN |
| Co |
Static load rating |
6500 lbs |
| Cdyn |
Dynamic load rating |
43.5 kN |
| Cdyn |
Dynamic load rating |
9700 lbs |
| E |
Distance from raceway centre to the hole for lubrication |
7.1 mm |
| E |
Distance from raceway centre to the hole for lubrication |
0.28 inch |
| d1 |
Outer diameter inner ring |
69.1 mm |
| d1 |
Outer diameter inner ring |
2.72 inch |
| C |
Width outer ring |
33.34 mm |
| C |
Width outer ring |
1.313 inch |
| B |
Width inner ring |
33.34 mm |
| B |
Width inner ring |
1.313 inch |
| D |
Outside diameter |
100 mm |
| D |
Outside diameter |
3.937 inch |
| d |
Bore diameter |
42.16 mm |
| kg |
Mass |
1.36 kg |
T SEAL / T SEAL (2T)
3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on
the both side.
