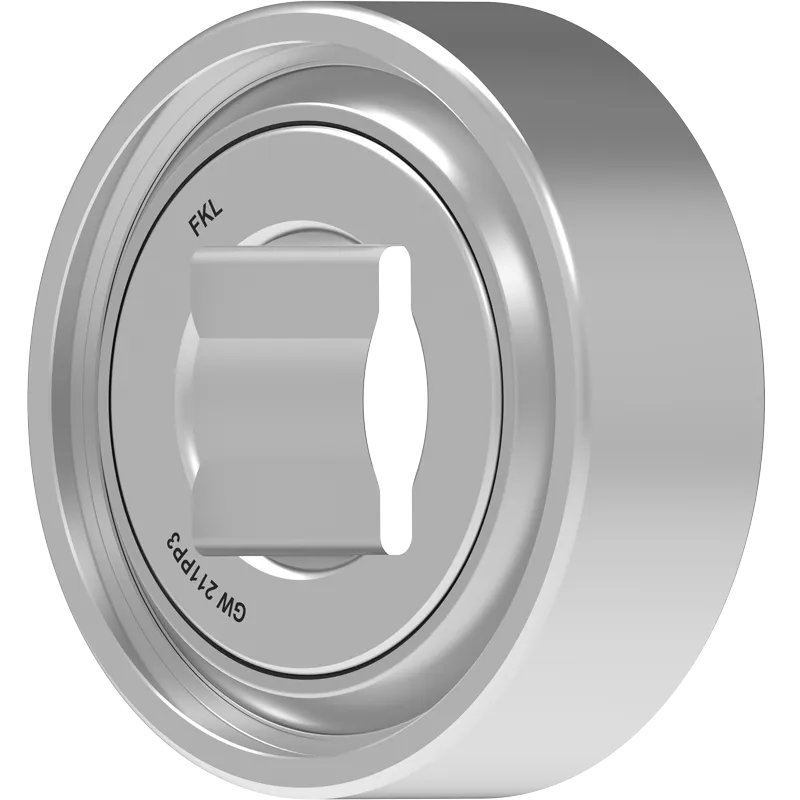

GW 211PP3
Technical specifications

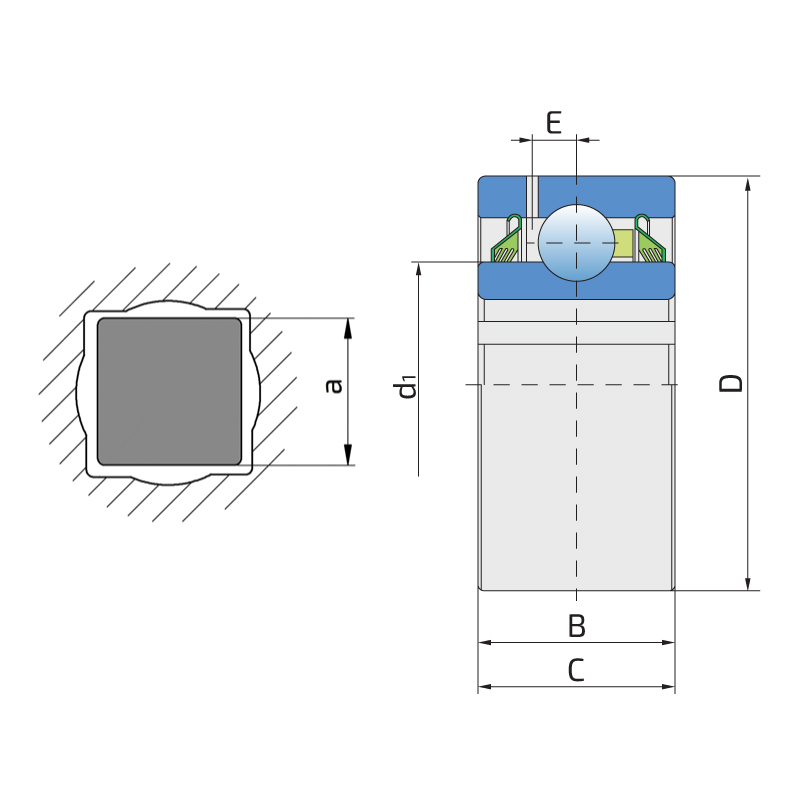

| D |
Outside diameter |
3.937 inch |
| D |
Outside diameter |
100 mm |
| B |
Width inner ring |
1.313 inch |
| B |
Width inner ring |
33.34 mm |
| C |
Width outer ring |
1.313 inch |
| C |
Width outer ring |
33.34 mm |
| d1 |
Outer diameter inner ring |
2.72 inch |
| d1 |
Outer diameter inner ring |
69.1 mm |
| E |
Distance from raceway centre to the hole for lubrication |
0.279 inch |
| E |
Distance from raceway centre to the hole for lubrication |
7.1 mm |
| a |
Hexagonal bore |
38.9 mm |
| Cdyn |
Dynamic load rating |
9700 lbs |
| Cdyn |
Dynamic load rating |
43.5 kN |
| Co |
Static load rating |
6500 lbs |
| Co |
Static load rating |
29 kN |
| kg |
Mass |
2.79 lbs |
| kg |
Mass |
1.266 kg |

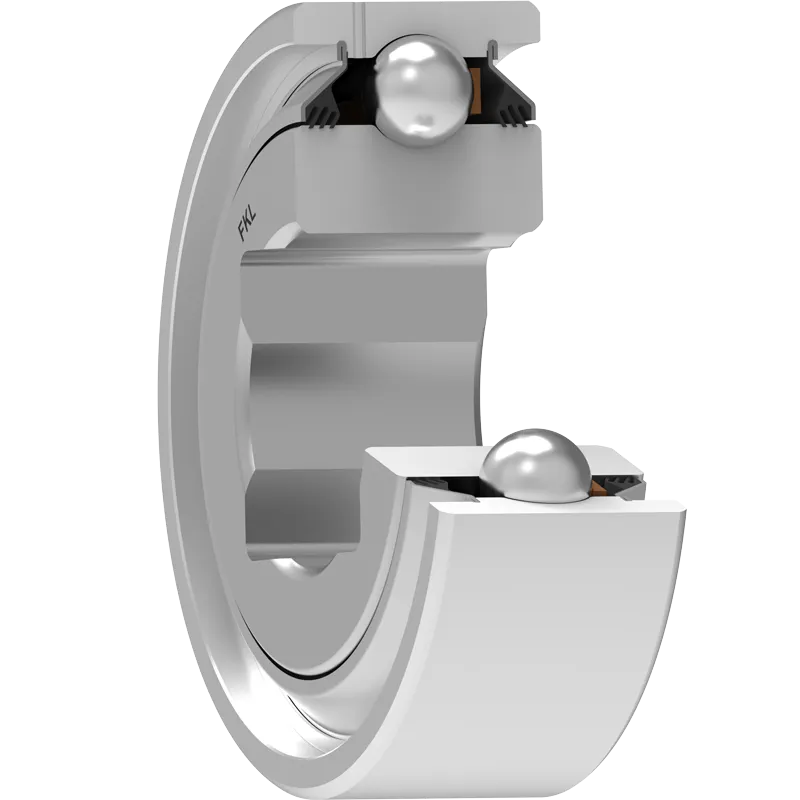

T SEAL / T SEAL (2T)
3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on
the both side.
Cross references
| INA |
GW211PP3 |
| NTN |
7AS11-11/2D1 |
| FAFNIR |
GW 211PP3 |
| KABAT |
GW 211PP3 |
