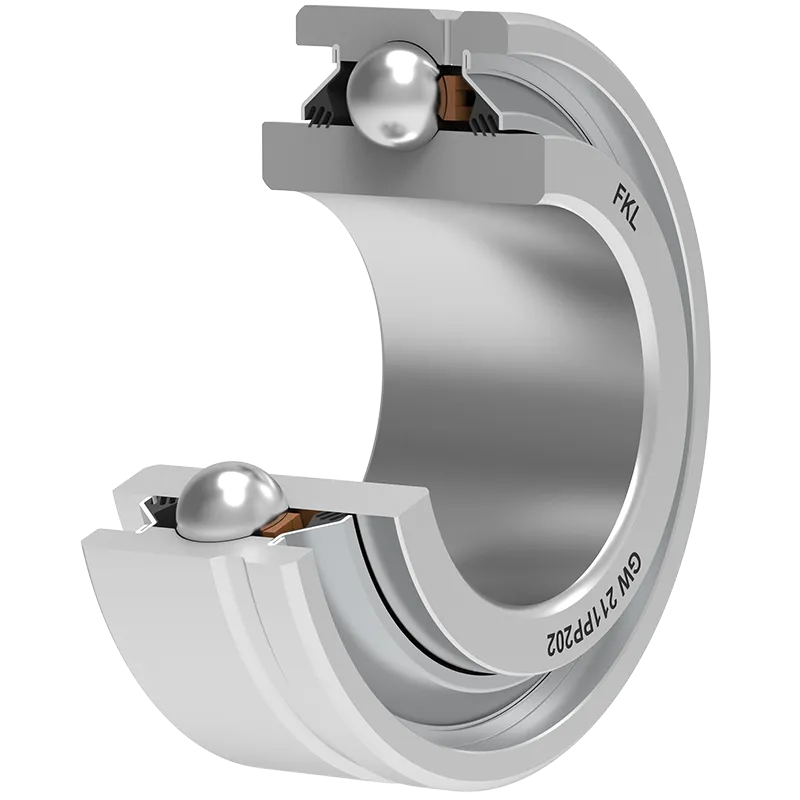

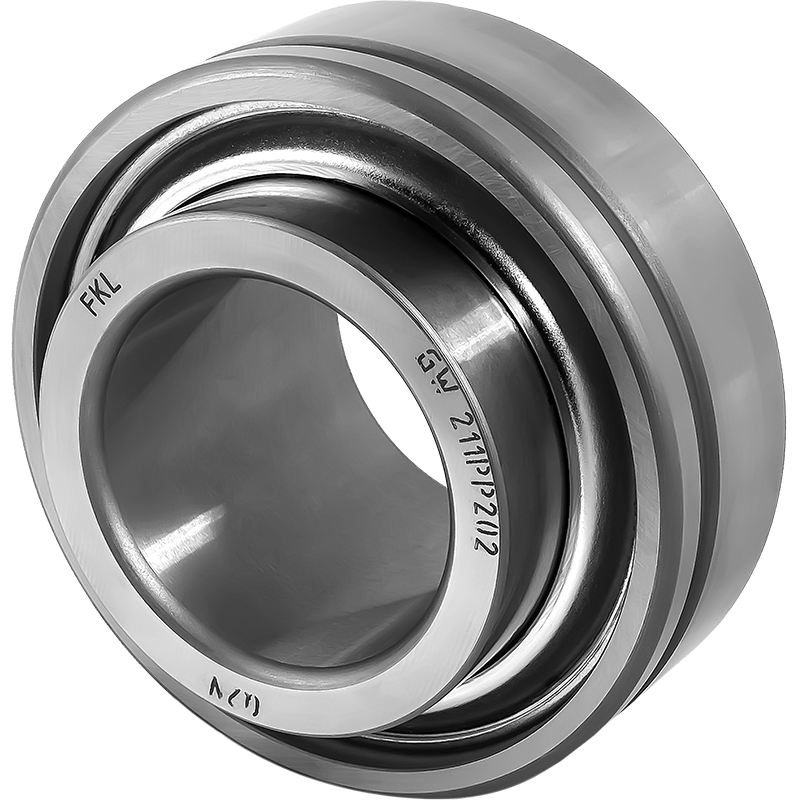

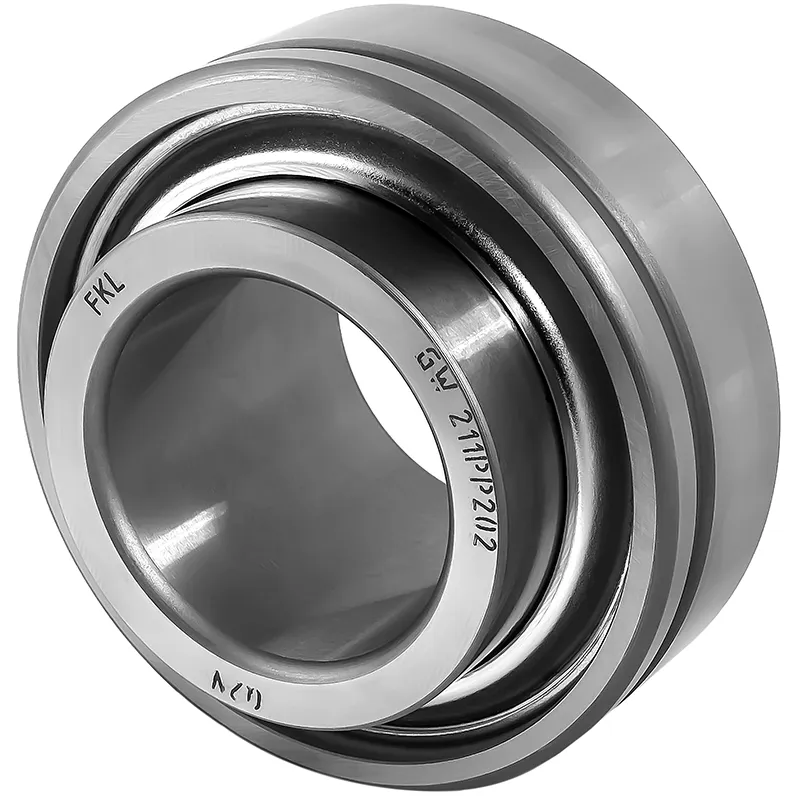

GW 211PP202

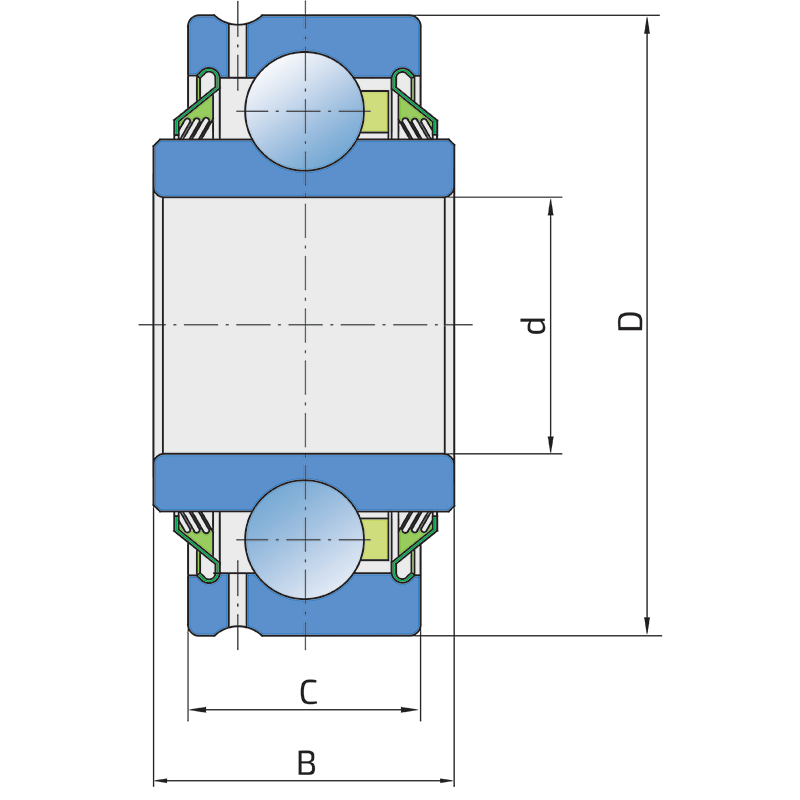

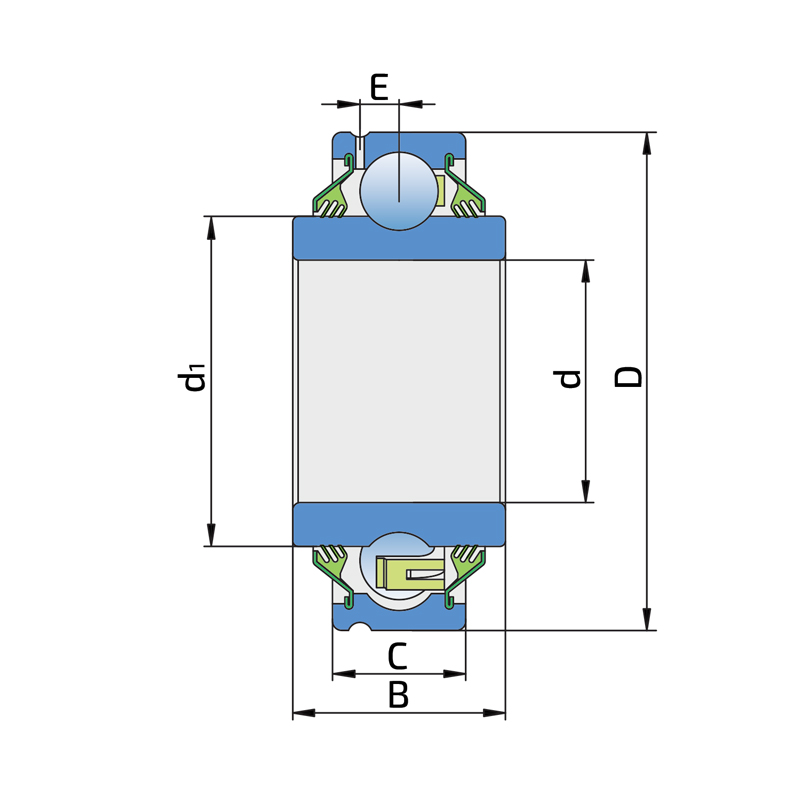

Technical specifications
| d | Bore diameter | 2.02 inch |
| d | Bore diameter | 51.308 mm |
| D | Outside diameter | 3.94 inch |
| D | Outside diameter | 100 mm |
| B | Width inner ring | 2.37 inch |
| B | Width inner ring | 60.3 mm |
| C | Width outer ring | 1.31 inch |
| C | Width outer ring | 33.34 mm |
| d1 | Outer diameter inner ring | 2.72 inch |
| d1 | Inner ring outside diameter | 69.1 mm |
| E | Distance from raceway centre to the hole for lubrication | 0.28 inch |
| E | Distance from raceway centre to the hole for lubrication | 7.1 mm |
| Cdyn | Dynamic load rating | 43.5 kN |
| Co | Static load rating | 29 kN |
| kg | Mass | 1.11 kg |

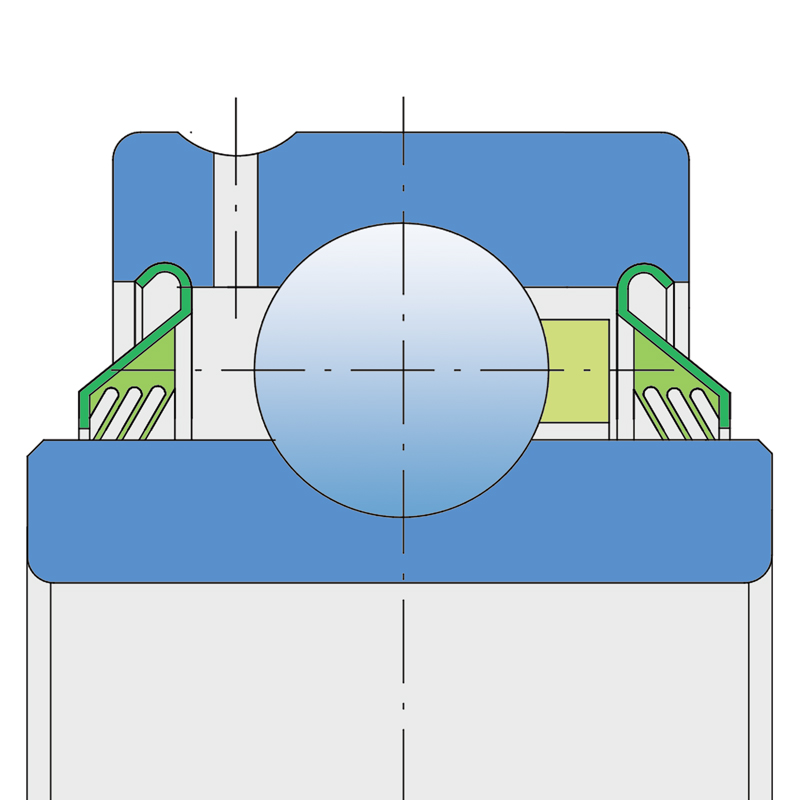

T SEAL / T SEAL (2T)
3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
.jpg)
Cross references
| SUMMERS | 8K2000 |
| INA | GW211PP202 |
| RBF | PN00026 |
Installations
| SUMMERS | DK2610 |
| SUMMERS | DK9610 |
| SUMMERS | DK9630 |
| SUMMERS | DT2510 |
| SUMMERS | DT9510 |
| SUMMERS | DT9530 |
| SUMMERS | DC2815 |
| SUMMERS | DC2830 |
| SUMMERS | DC2835 |
| SUMMERS | CC2815 |
| SUMMERS | CC2830 |
| SUMMERS | CC2835 |
| SUMMERS | VRT2530 |
| SUMMERS | VRT3530 |
| SUMMERS | SC1030 |
| SUMMERS | SC1510 |
| SUMMERS | SC1530 |
| SUMMERS | SC1535 |
| SUMMERS | SC1550 |
| SUMMERS | SC1556 |
