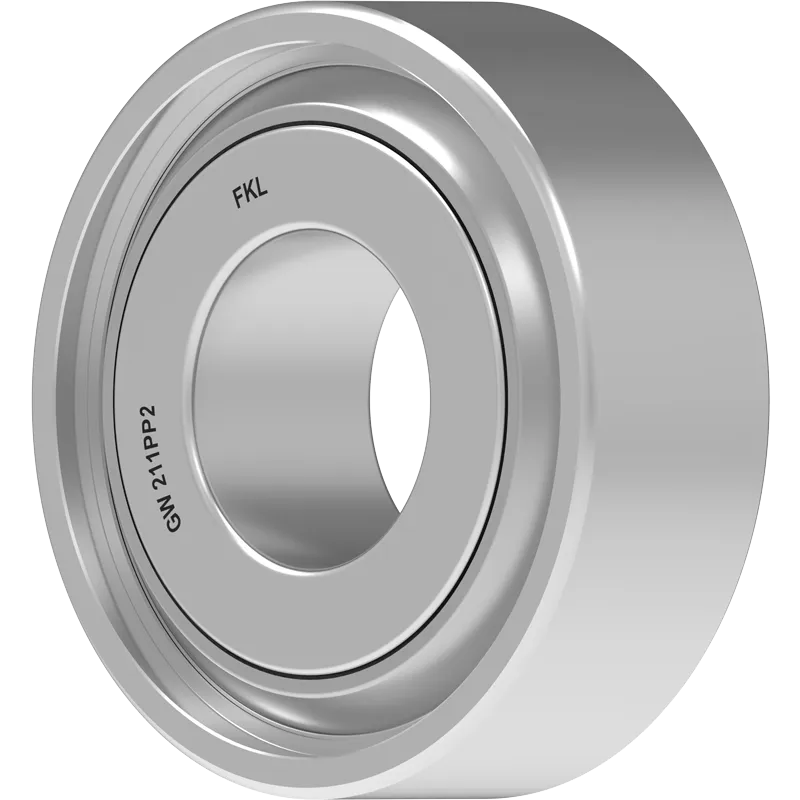

GW 211PP2

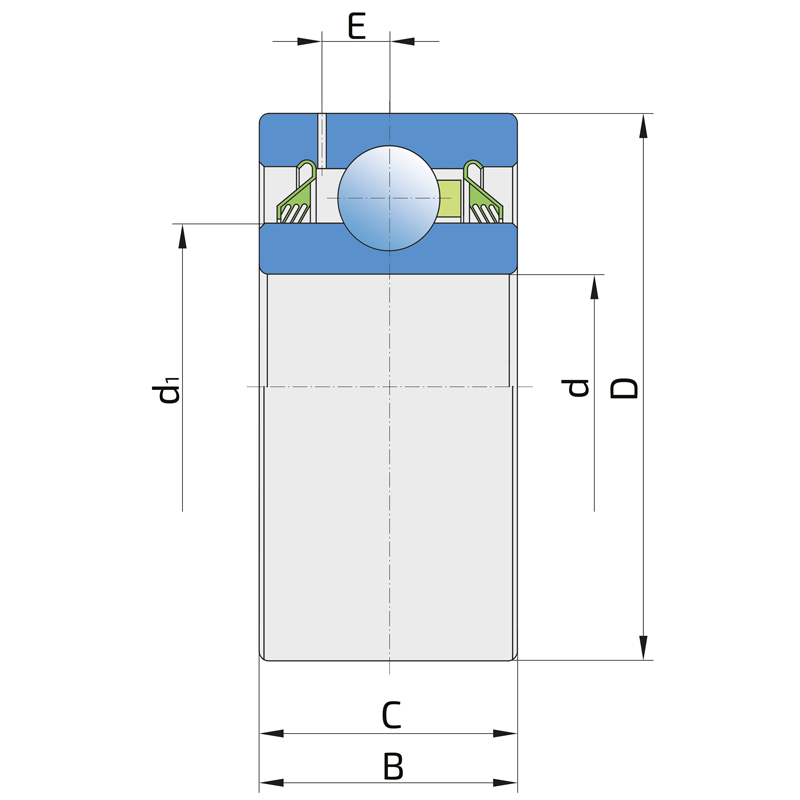

Technical specifications
| d | Bore diameter | 2.1882 inch |
| kg | Mass | 3 lbs |
| Co | Static load rating | 29 kN |
| Co | Static load rating | 6500 lbs |
| Cdyn | Dynamic load rating | 43.5 kN |
| Cdyn | Dynamic load rating | 9700 lbs |
| E | Distance from raceway centre to the hole for lubrication | 7.1 mm |
| E | Distance from raceway centre to the hole for lubrication | 0.28 inch |
| d1 | Outer diameter inner ring | 69.1 mm |
| d1 | Outer diameter inner ring | 2.72 inch |
| C | Width outer ring | 33.34 mm |
| C | Width outer ring | 1.313 inch |
| B | Width inner ring | 33.34 mm |
| B | Width inner ring | 1.313 inch |
| D | Outside diameter | 100 mm |
| D | Outside diameter | 3.937 inch |
| d | Bore diameter | 55.58 mm |
| kg | Mass | 1.36 kg |

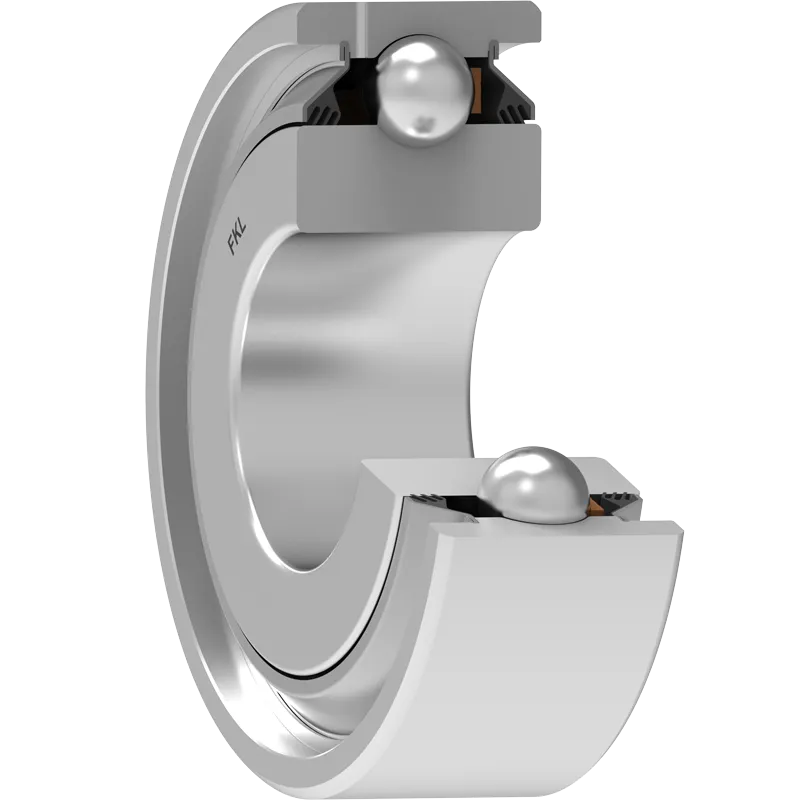

T SEAL / T SEAL (2T)
3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
Cross references
| INA | GW211PP2 |
| NTN | 7AS11-11/2D1 |
| FAFNIR | GW211PP2 |
| BCA | DC211TTR2 |
| TORRINGTON | GW211PP2 |
| NDH | 35RBG3-211E3 |
| Bush-Hog | 14-6-244 |
| KABAT | GW 211PP2 |
