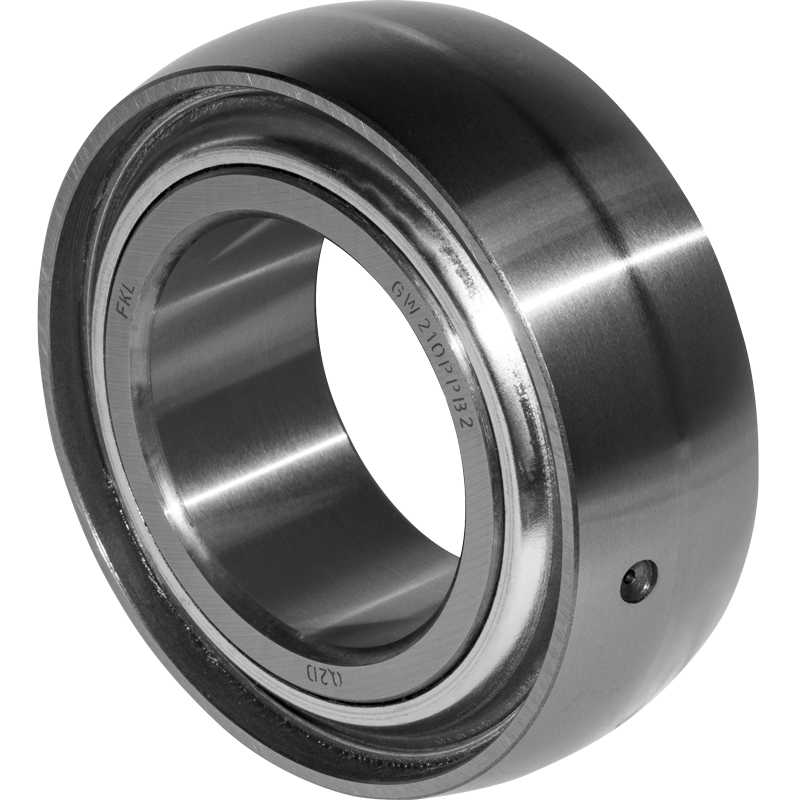

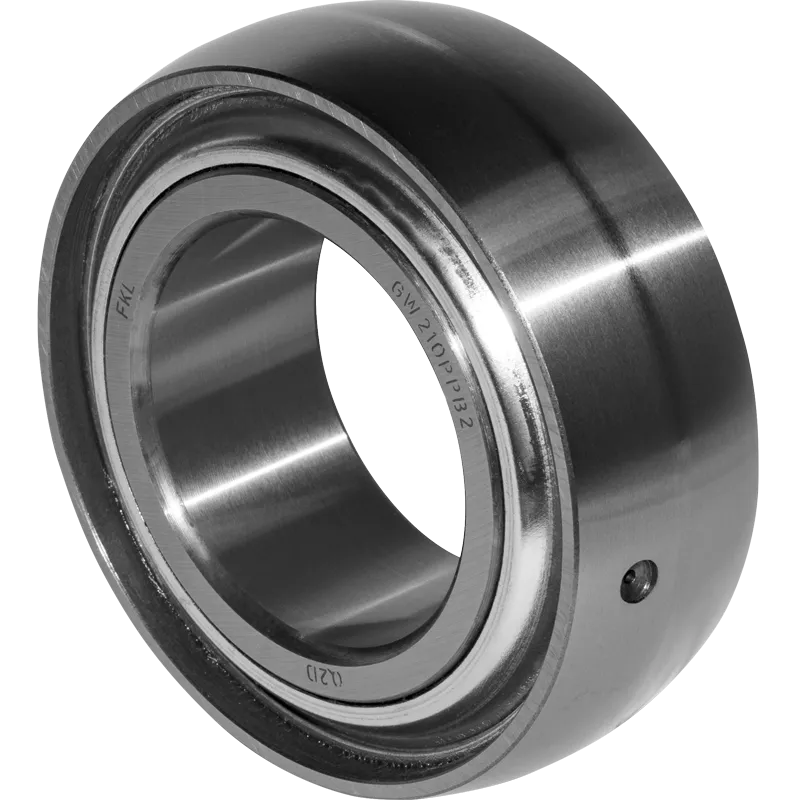

GW 210PPB2
Technical specifications

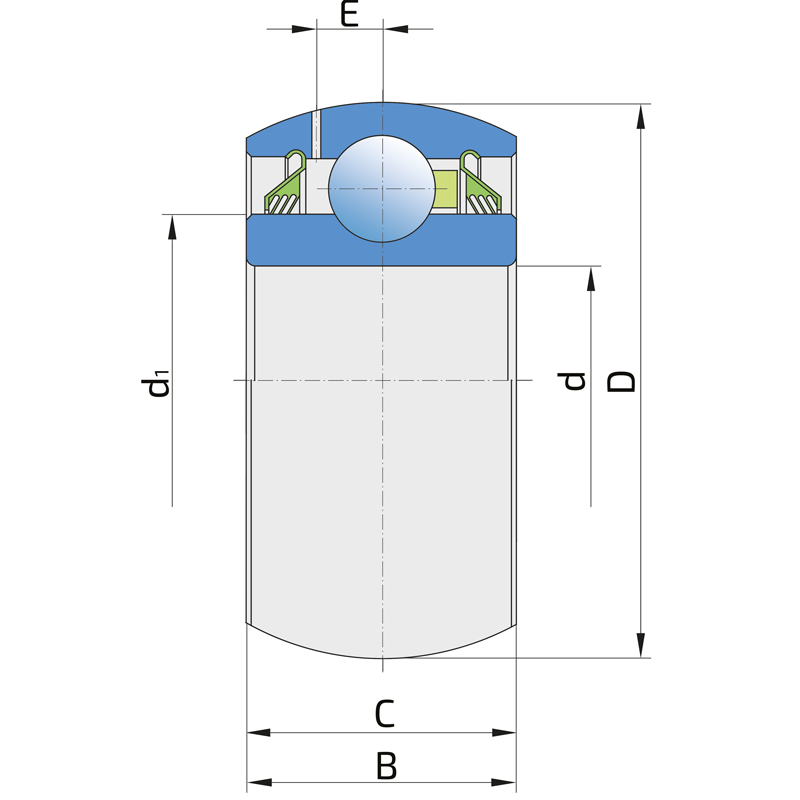

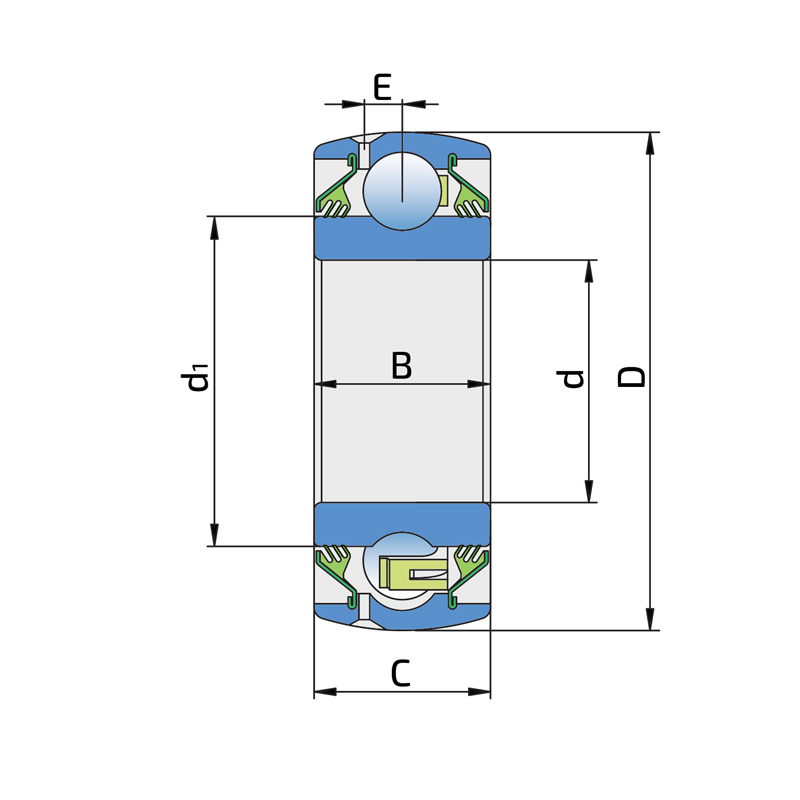

| d |
Bore diameter |
1.9382 inch |
| kg |
Mass |
1.5 lbs |
| Co |
Static load rating |
23.2 kN |
| Co |
Static load rating |
5200 lbs |
| Cdyn |
Dynamic load rating |
35 kN |
| Cdyn |
Dynamic load rating |
7800 lbs |
| E |
Distance from raceway centre to the hole for lubrication |
6.6 mm |
| E |
Distance from raceway centre to the hole for lubrication |
0.26 inch |
| d1 |
Outer diameter inner ring |
62.5 mm |
| d1 |
Outer diameter inner ring |
2.461 inch |
| C |
Width outer ring |
30 mm |
| C |
Width outer ring |
1.188 inch |
| B |
Width inner ring |
30.18 mm |
| B |
Width inner ring |
1.188 inch |
| D |
Outside diameter |
90 mm |
| D |
Outside diameter |
3.543 inch |
| d |
Bore diameter |
49.23 mm |
| kg |
Mass |
0.68 kg |

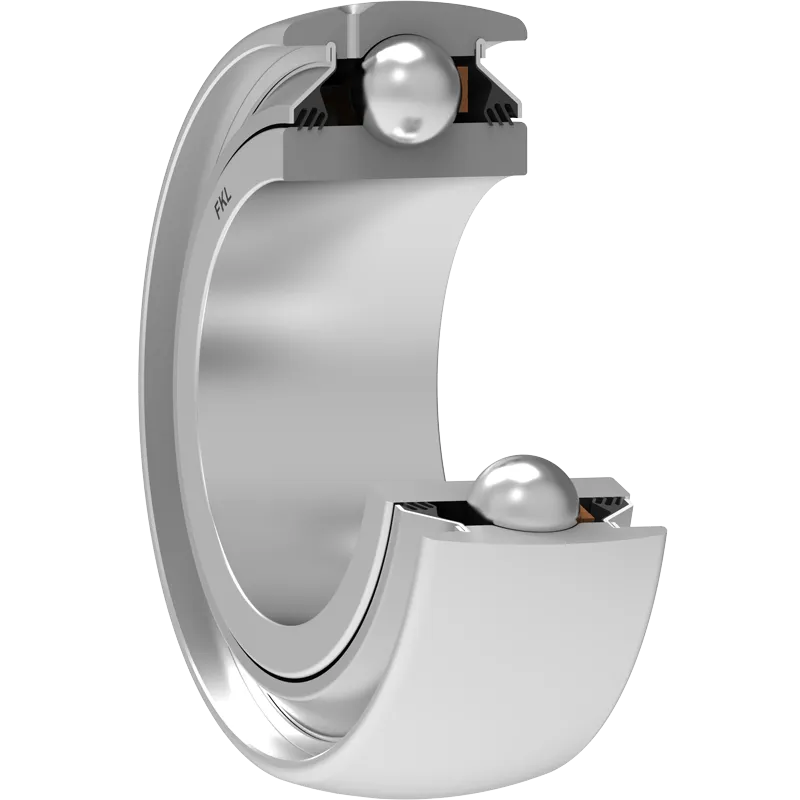

T SEAL / T SEAL (2T)
3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on
the both side.
Cross references
| INA |
GW210PPB2 |
| NTN |
3AC10-115/16D1 |
| FAFNIR |
GW210PPB2 |
| BCA |
DS210TTR2 |
| TORRINGTON |
GW210PPB2 |
| LINK BELT |
31RG3-210E3 |
| CASE |
T53781 |
| KABAT |
GW 210PPB2 |
