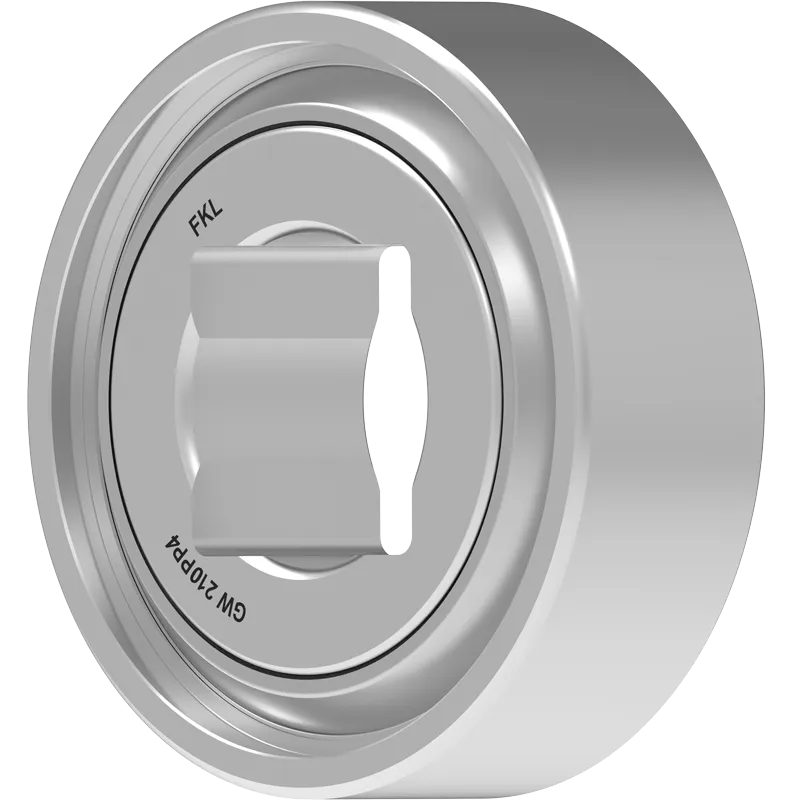

GW 210PP4
Technical specifications

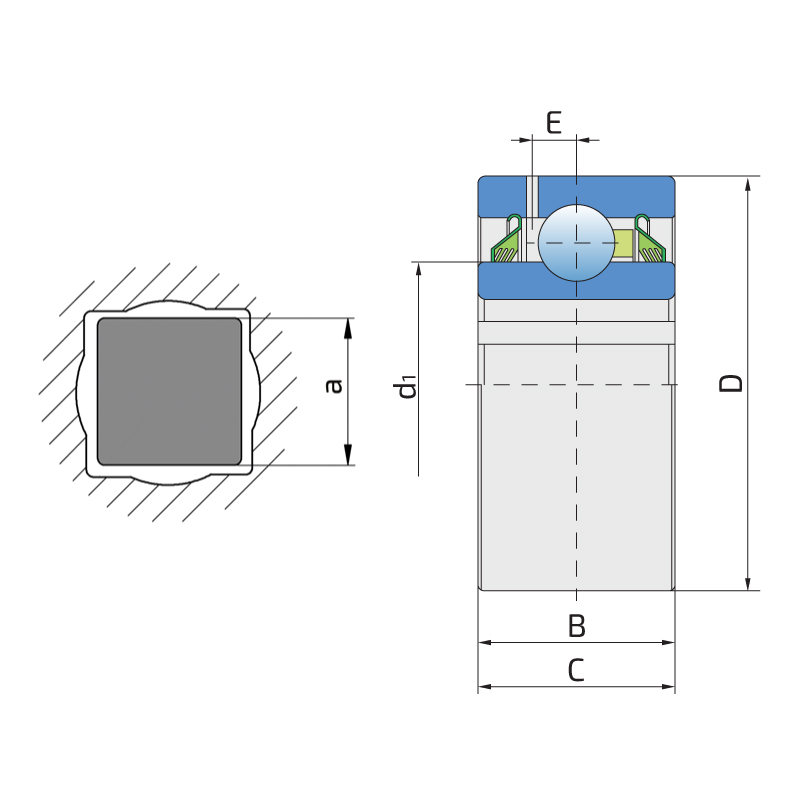

| D |
Outside diameter |
3.5433 inch |
| D |
Outside diameter |
90 mm |
| B |
Width inner ring |
1.188 inch |
| B |
Width inner ring |
30.18 mm |
| C |
Width outer ring |
1.188 inch |
| C |
Width outer ring |
30.18 mm |
| d1 |
Outer diameter inner ring |
2.461 inch |
| d1 |
Outer diameter inner ring |
62.5 mm |
| E |
Distance from raceway centre to the hole for lubrication |
0.26 inch |
| E |
Distance from raceway centre to the hole for lubrication |
6.6 mm |
| a |
Hexagonal bore |
30 mm |
| Cdyn |
Dynamic load rating |
7800 lbs |
| Cdyn |
Dynamic load rating |
35 kN |
| Co |
Static load rating |
5200 lbs |
| Co |
Static load rating |
23.2 kN |
| kg |
Mass |
2.31 lbs |
| kg |
Mass |
1.048 kg |

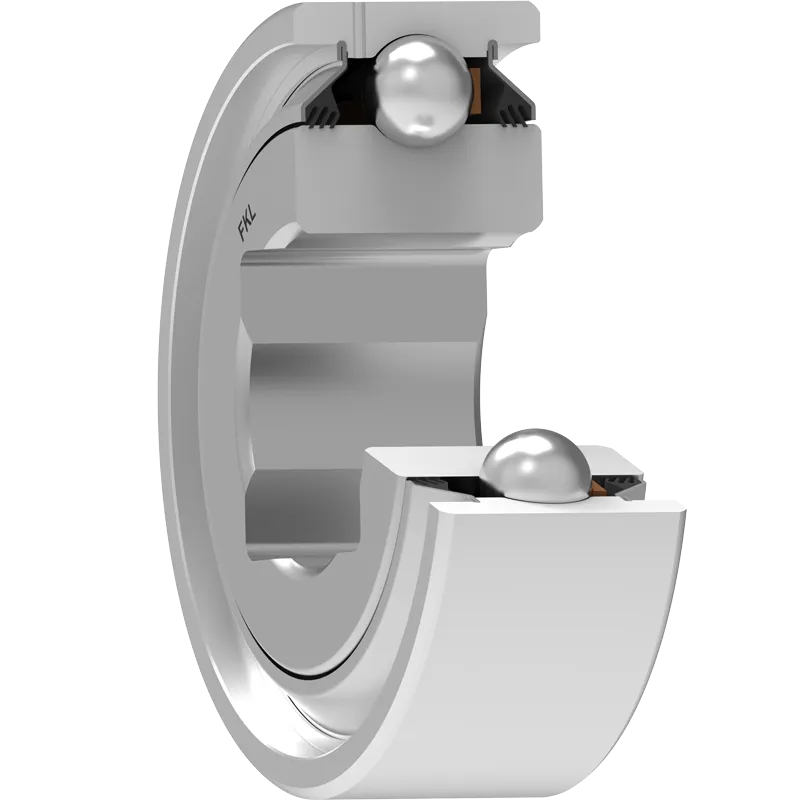

T SEAL / T SEAL (2T)
3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on
the both side.
Cross references
| INA |
GW210PP4 |
| NTN |
7AS10-11/8D1 |
| FAFNIR |
GW210PP4 |
| KABAT |
GW 210PP4 |
