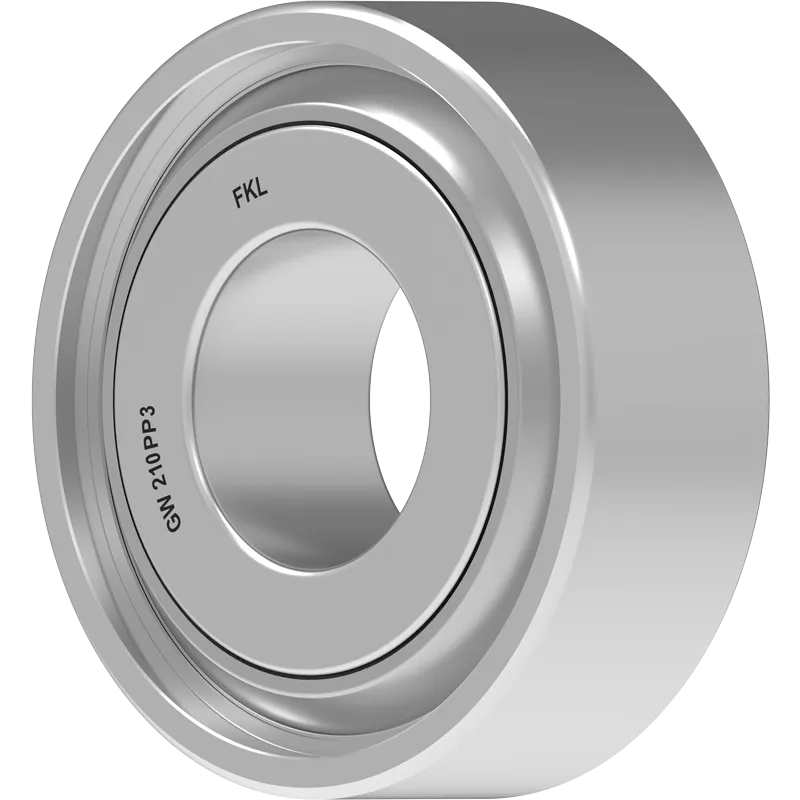

GW 210PP3
Technical specifications

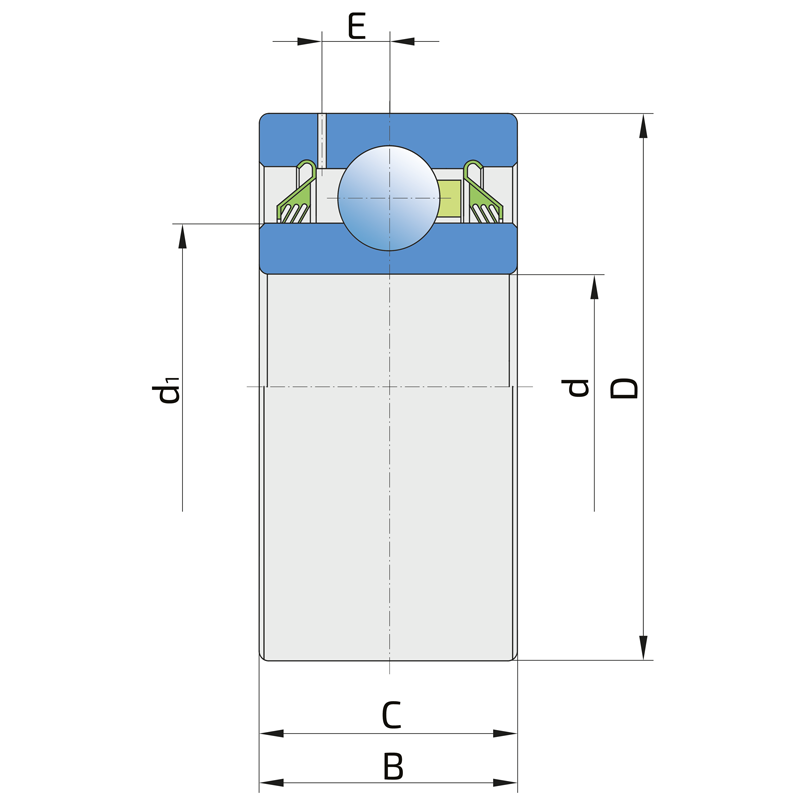

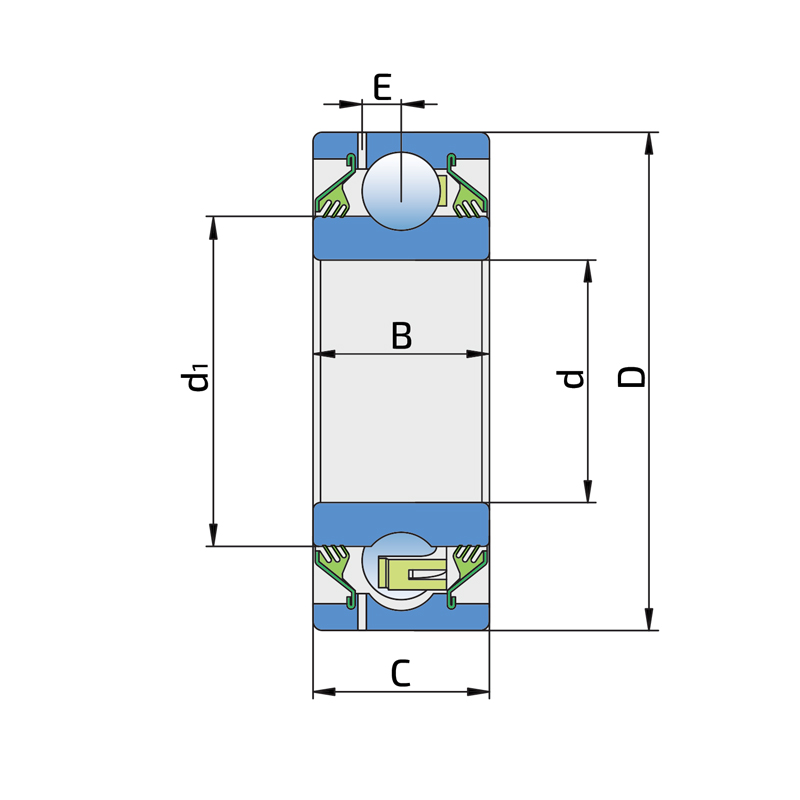

| d |
Bore diameter |
1.4067 inch |
| kg |
Mass |
2.25 lbs |
| Co |
Static load rating |
23.2 kN |
| Co |
Static load rating |
5200 lbs |
| Cdyn |
Dynamic load rating |
35 kN |
| Cdyn |
Dynamic load rating |
7800 lbs |
| E |
Distance from raceway centre to the hole for lubrication |
6.6 mm |
| E |
Distance from raceway centre to the hole for lubrication |
0.26 inch |
| d1 |
Outer diameter inner ring |
62.5 mm |
| d1 |
Outer diameter inner ring |
2.461 inch |
| C |
Width outer ring |
30.18 mm |
| C |
Width outer ring |
1.188 inch |
| B |
Width inner ring |
30.18 mm |
| B |
Width inner ring |
1.188 inch |
| D |
Outside diameter |
90 mm |
| D |
Outside diameter |
3.543 inch |
| d |
Bore diameter |
35.73 mm |
| kg |
Mass |
1.02 kg |

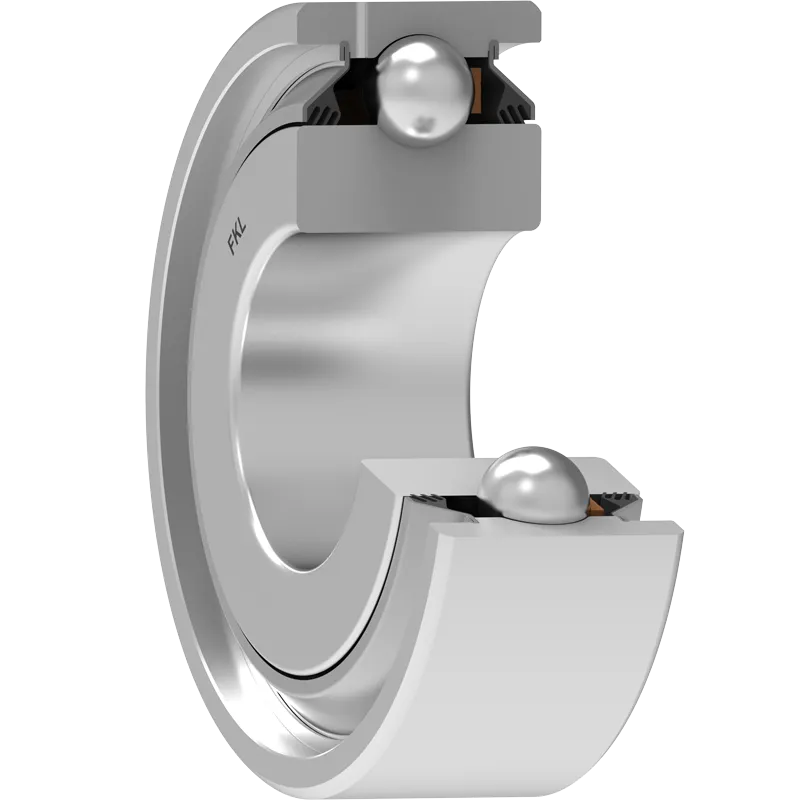

T SEAL / T SEAL (2T)
3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on
the both side.
