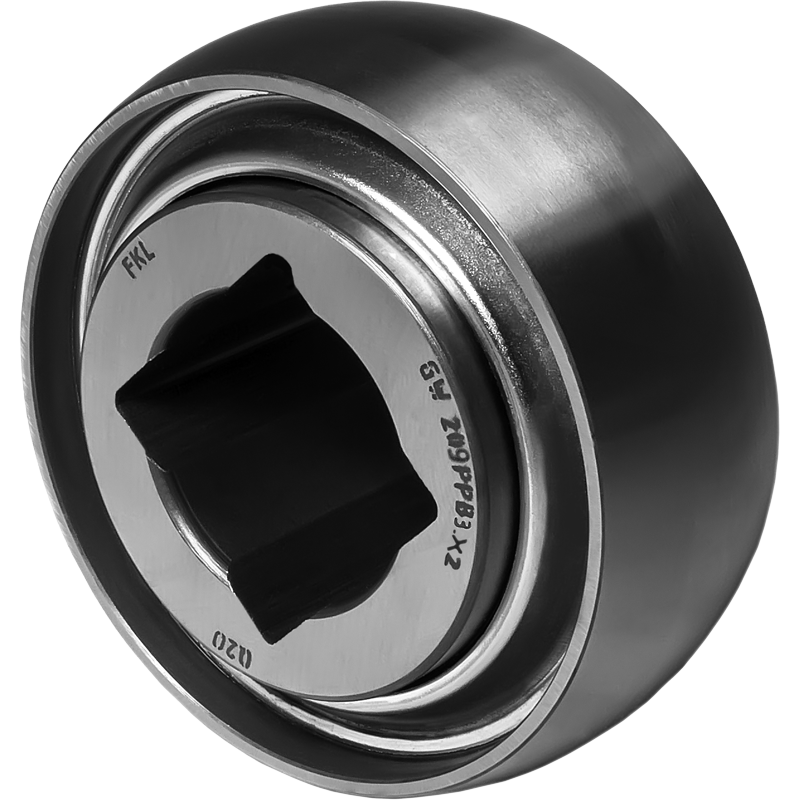

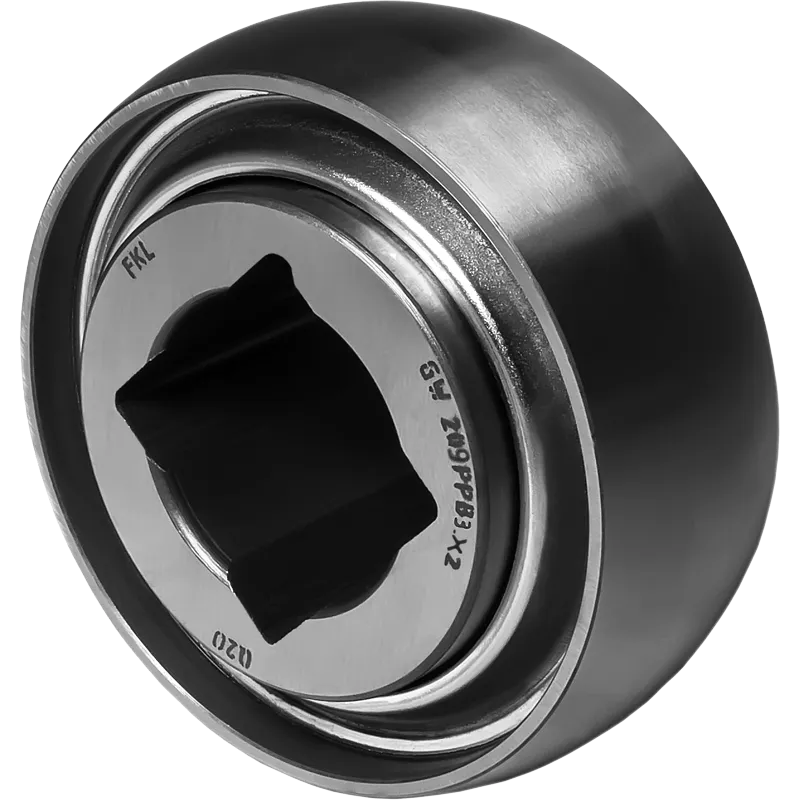

GW 209PPB3.X2

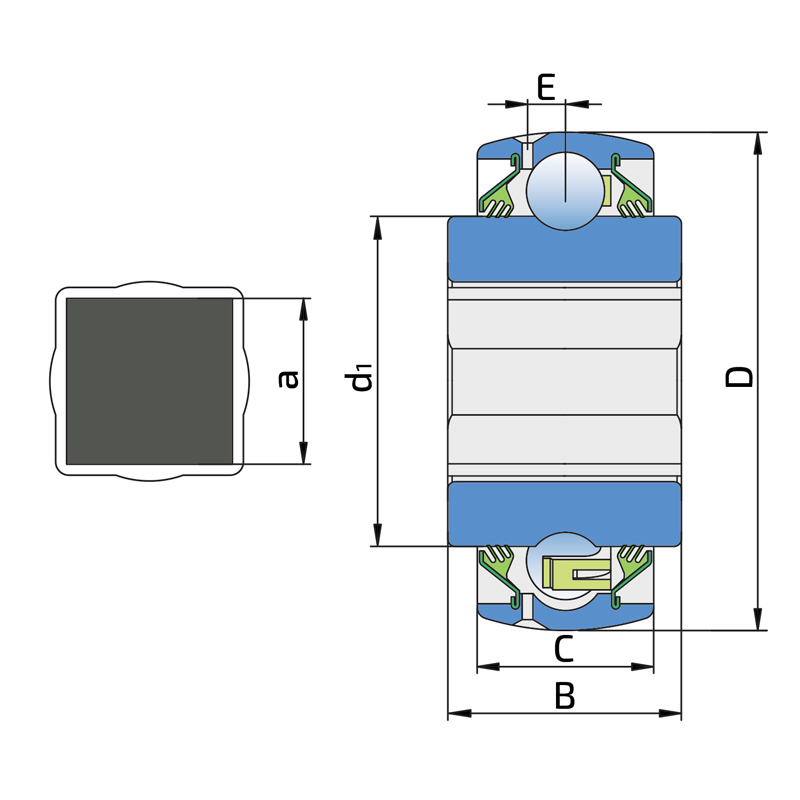

Technical specifications
| D | Outside diameter | 3.3465 inch |
| D | Outside diameter | 85 mm |
| B | Width inner ring | 1.772 inch |
| B | Width inner ring | 45 mm |
| C | Width outer ring | 1.188 inch |
| C | Width outer ring | 30.18 mm |
| d1 | Outer diameter inner ring | 2.228 inch |
| d1 | Outer diameter inner ring | 56.6 mm |
| E | Distance from raceway centre to the hole for lubrication | 0.26 inch |
| E | Distance from raceway centre to the hole for lubrication | 6.6 mm |
| a | Hexagonal bore | 25 mm |
| Cdyn | Dynamic load rating | 7300 lbs |
| Cdyn | Dynamic load rating | 32.5 kN |
| Co | Static load rating | 4600 lbs |
| Co | Static load rating | 20.4 kN |
| kg | Mass | 2.16 lbs |
| kg | Mass | 0.98 kg |
T SEAL / T SEAL (2T)
3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
Cross references
| INA | GW209PPB3.X2 |
