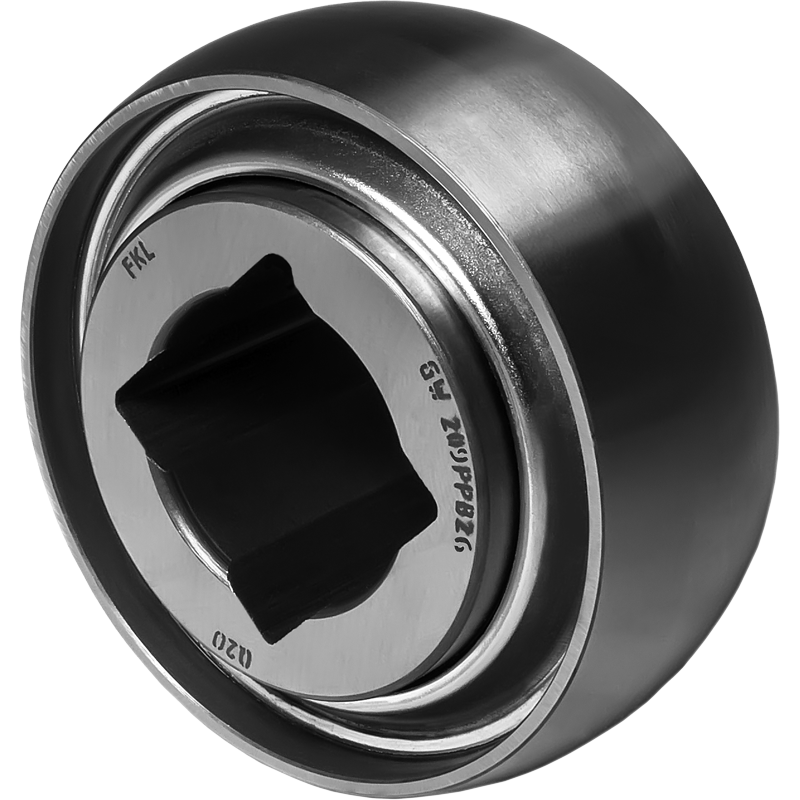

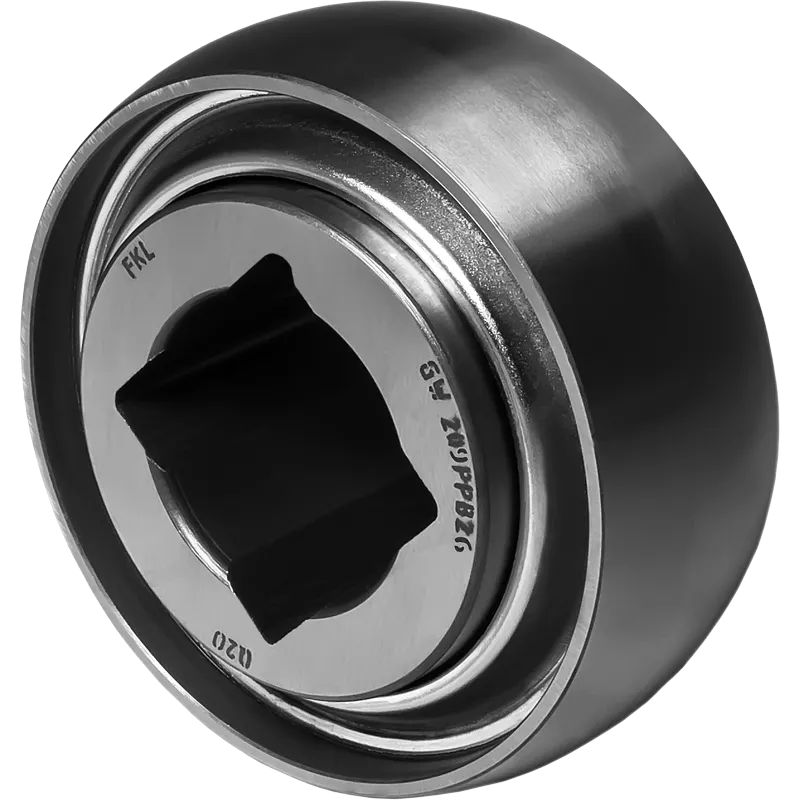

GW 209PPB26

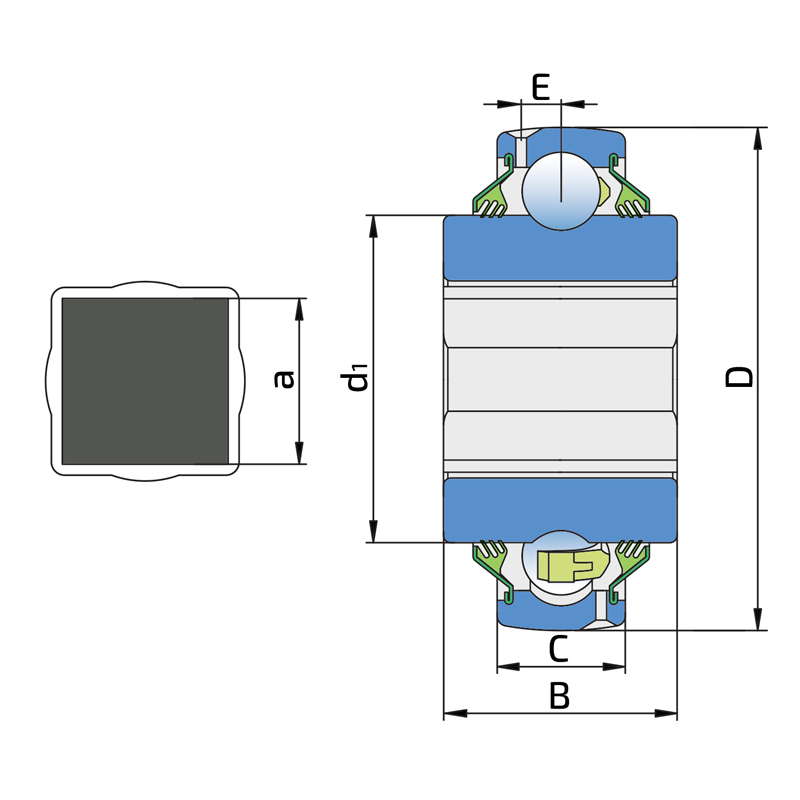

Technical specifications
| D |
Outside diameter |
3.3465 inch |
| D |
Outside diameter |
85 mm |
| B |
Width inner ring |
1.687 inch |
| B |
Width inner ring |
42.85 mm |
| C |
Width outer ring |
0.866 inch |
| C |
Width outer ring |
22 mm |
| d1 |
Outer diameter inner ring |
2.228 inch |
| d1 |
Outer diameter inner ring |
56.6 mm |
| E |
Distance from raceway centre to the hole for lubrication |
0.256 inch |
| E |
Distance from raceway centre to the hole for lubrication |
6.5 mm |
| a |
Hexagonal bore |
25 mm |
| Cdyn |
Dynamic load rating |
7300 lbs |
| Cdyn |
Dynamic load rating |
32.5 kN |
| Co |
Static load rating |
4600 lbs |
| Co |
Static load rating |
20.4 kN |
| kg |
Mass |
2.09 lbs |
| kg |
Mass |
0.95 kg |

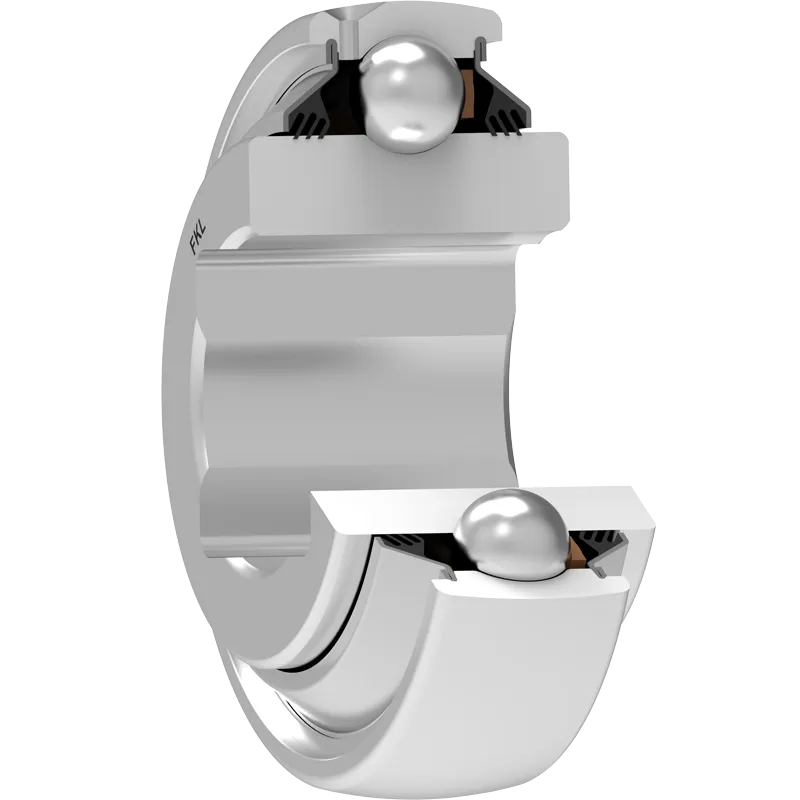

T SEAL / T SEAL (2T)
3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on
the both side.
