GW 209PPB2

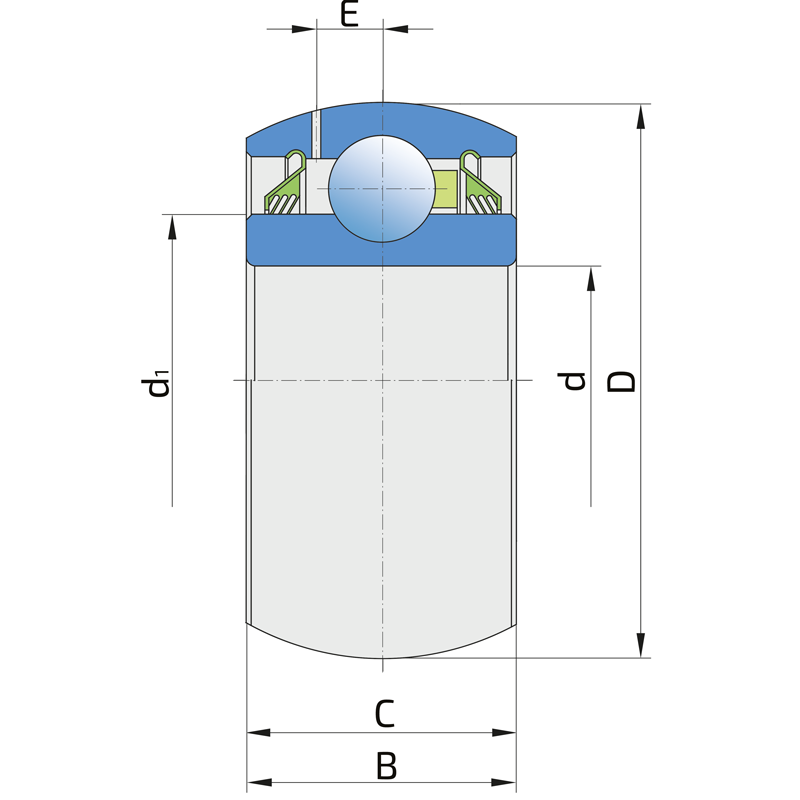

Technical specifications
| d |
Bore diameter |
1.7717 inch |
| kg |
Mass |
1.44 lbs |
| Co |
Static load rating |
20.4 kN |
| Co |
Static load rating |
4600 lbs |
| Cdyn |
Dynamic load rating |
32.5 kN |
| Cdyn |
Dynamic load rating |
7300 lbs |
| E |
Distance from raceway centre to the hole for lubrication |
6.5 mm |
| E |
Distance from raceway centre to the hole for lubrication |
0.256 inch |
| d1 |
Outer diameter inner ring |
56.6 mm |
| d1 |
Outer diameter inner ring |
2.228 inch |
| C |
Width outer ring |
30.2 mm |
| C |
Width outer ring |
1.189 inch |
| B |
Width inner ring |
30.2 mm |
| B |
Width inner ring |
1.189 inch |
| D |
Outside diameter |
85 mm |
| D |
Outside diameter |
3.3465 inch |
| d |
Bore diameter |
45 mm |
| kg |
Mass |
0.65 kg |

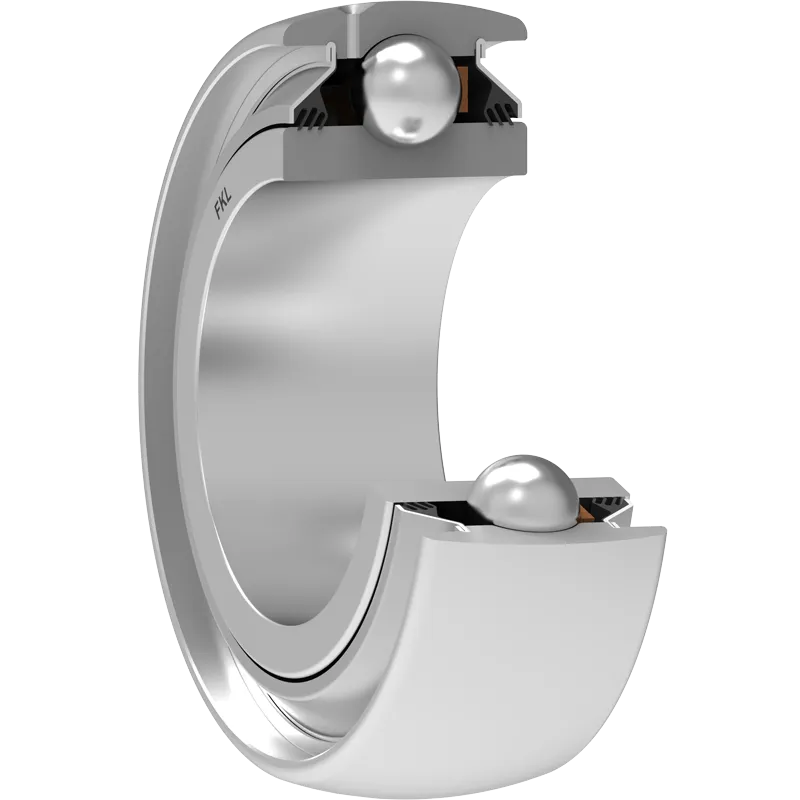

T SEAL / T SEAL (2T)
3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on
the both side.
Cross references
| MASSEY FERGUSON |
835050M1 |
| INA |
GW209PPB2 |
| NTN |
3AC09D1 |
| FAFNIR |
GW209PPB2 |
| BCA |
DS209TTR2 |
| TORRINGTON |
GW209PPB2 |
| LINK BELT |
RG3-209E3 |
| NTN |
3AC09LLJC3PX1 |
| NEW HOLLAND |
276882 |
| KABAT |
GW 209PPB2 |
Installations
| MASSEY FERGUSON |
MF29 |
| MASSEY FERGUSON |
MF33 |
| MASSEY FERGUSON |
MF34 |
| MASSEY FERGUSON |
MF39 |
| MASSEY FERGUSON |
MF68 |
