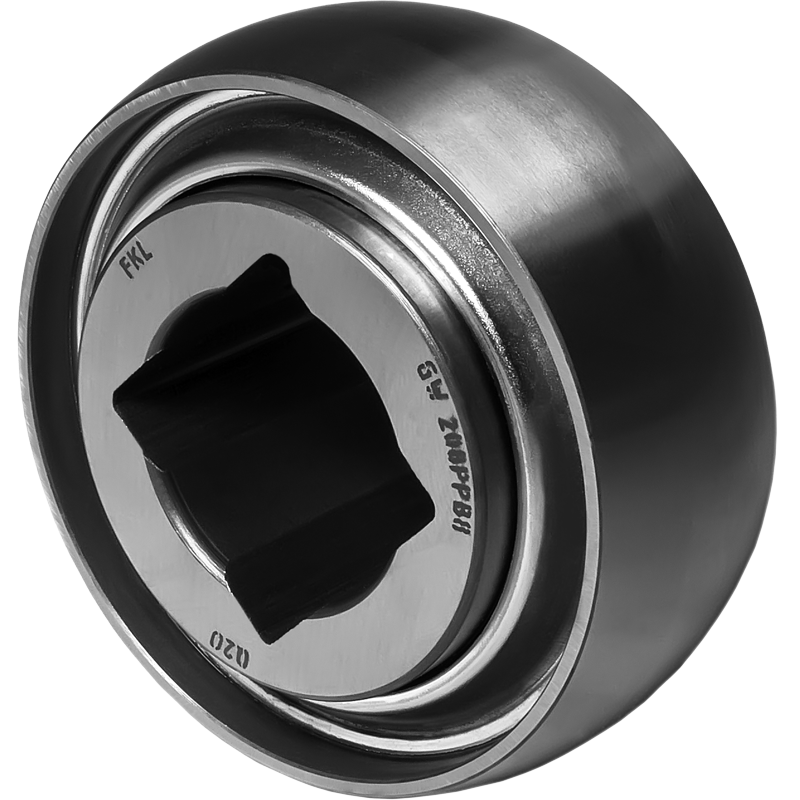

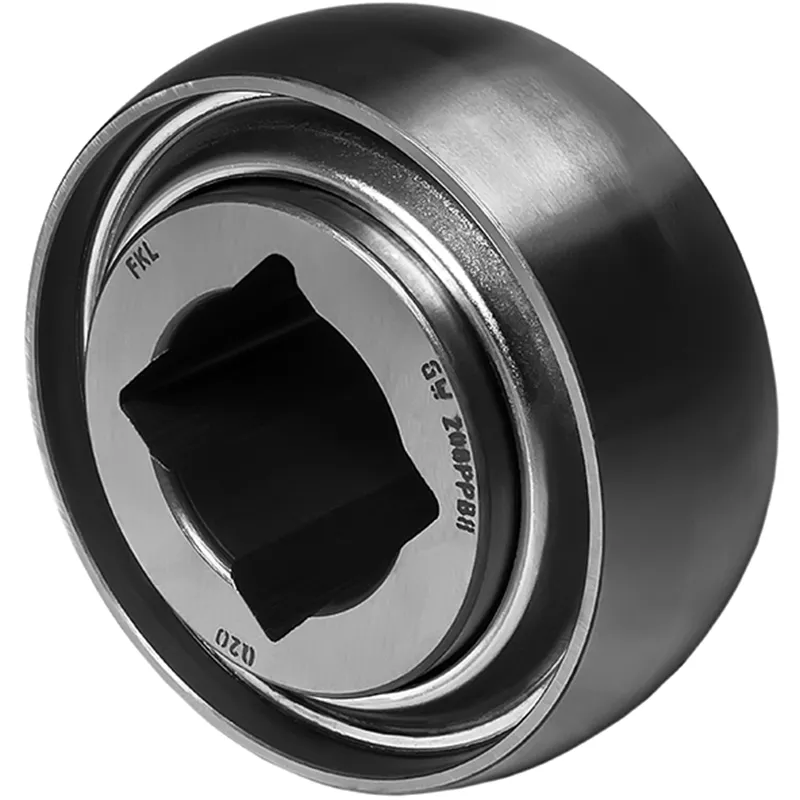

GW 208PPB8

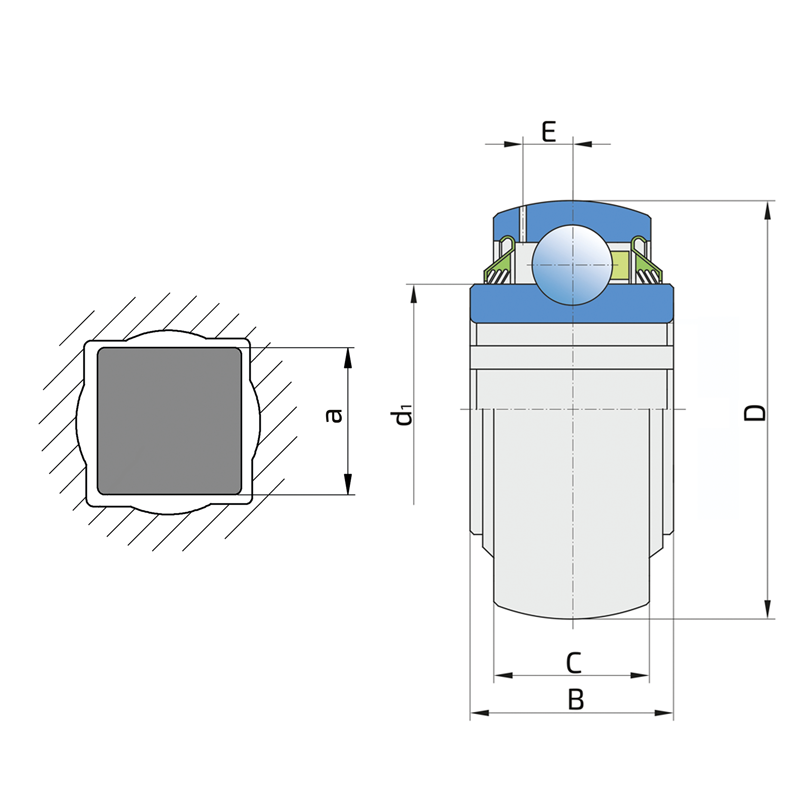

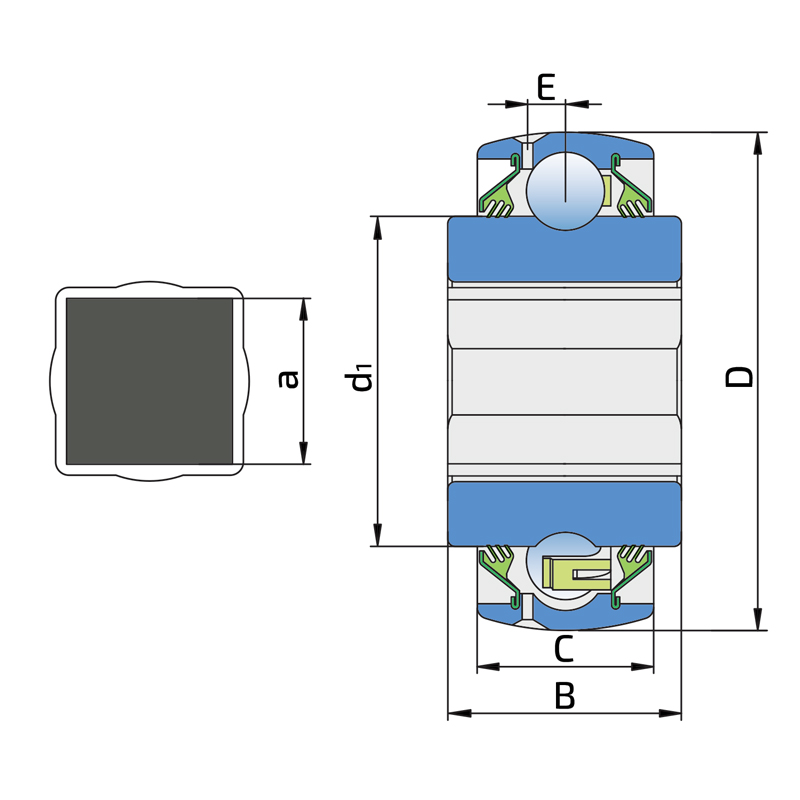

Technical specifications
| D | Outside diameter | 3.1496 inch |
| kg | Mass | 1.75 lbs |
| Co | Static load rating | 19.8 kN |
| Co | Static load rating | 4400 lbs |
| Cdyn | Dynamic load rating | 32.5 kN |
| Cdyn | Dynamic load rating | 7300 lbs |
| a | Shaft size | 30 mm |
| a | Shaft size | 1.18 inch |
| E | Distance from raceway centre to the hole for lubrication | 6.6 mm |
| E | Distance from raceway centre to the hole for lubrication | 0.26 inch |
| d1 | Outer diameter inner ring | 52 mm |
| d1 | Outer diameter inner ring | 2.05 inch |
| C | Width outer ring | 30.1 mm |
| C | Width outer ring | 1.188 inch |
| B | Width inner ring | 36.5 mm |
| B | Width inner ring | 1.437 inch |
| D | Outside diameter | 80 mm |
| kg | Mass | 0.79 kg |

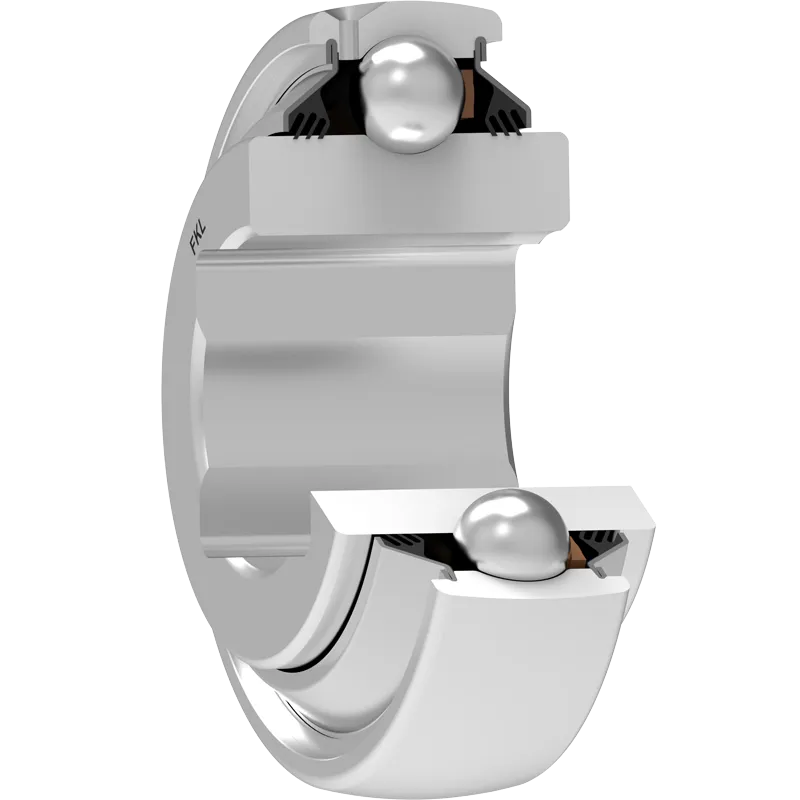

T SEAL / T SEAL (2T)
3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
Cross references
| INA | GW208PPB8 |
| NTN | 2AS08-11/8D1 |
| FAFNIR | GW208PPB8 |
| OLIVER AGRO | SBP238481B |
| NEW HOLLAND | SBP238481B |
| KABAT | GW 208PPB8 |
| LINK BELT | I8SG2-2E08E3 |
| BCA | DS208TTR8 |
