GW 208PPB6

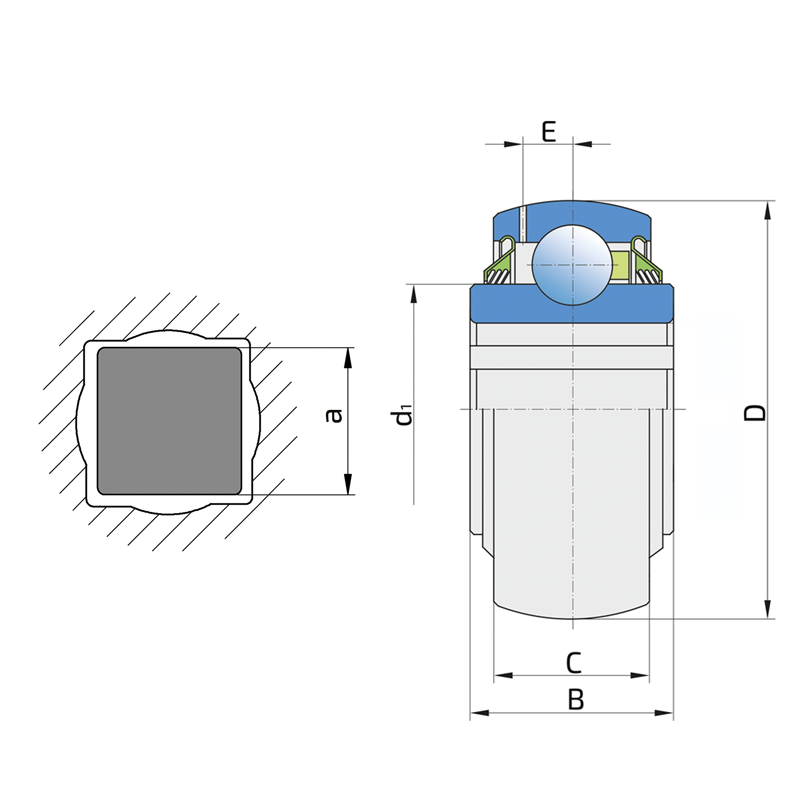

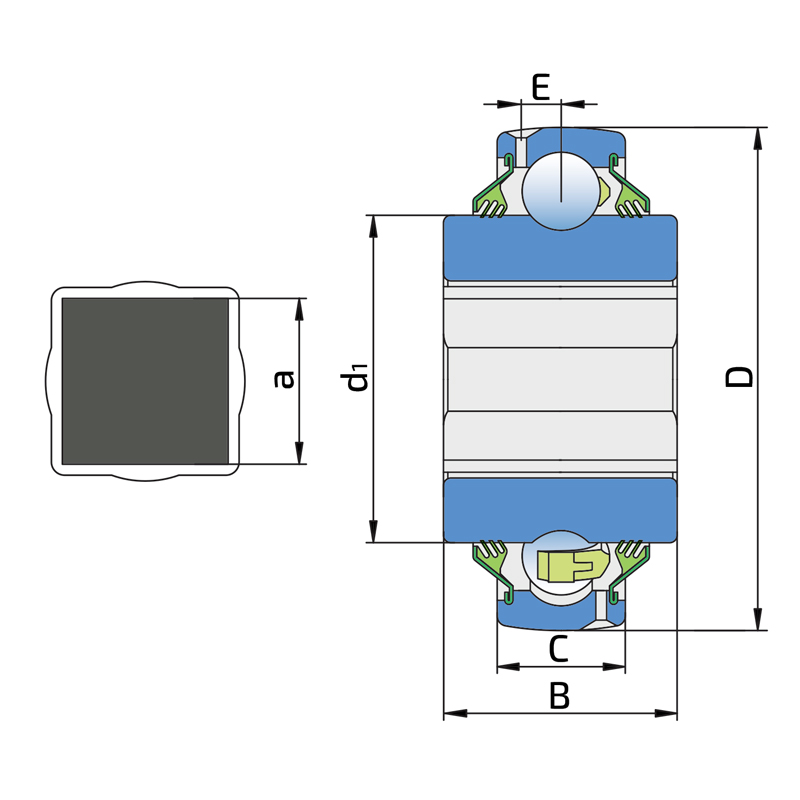

Technical specifications
| D | Outside diameter | 3.1496 inch |
| D | Outside diameter | 80 mm |
| B | Width inner ring | 1.437 inch |
| B | Width inner ring | 36.5 mm |
| C | Width outer ring | 0.827 inch |
| C | Width outer ring | 21 mm |
| d1 | Outer diameter inner ring | 2.05 inch |
| d1 | Outer diameter inner ring | 52 mm |
| E | Distance from raceway centre to the hole for lubrication | 0.24 inch |
| E | Distance from raceway centre to the hole for lubrication | 6.15 mm |
| a | Shaft size | 1.024 inch |
| a | Shaft size | 26 mm |
| Cdyn | Dynamic load rating | 7300 lbs |
| Cdyn | Dynamic load rating | 32.5 kN |
| Co | Static load rating | 4400 lbs |
| Co | Static load rating | 19.8 kN |
| kg | Mass | 1.48 lbs |
| kg | Mass | 0.67 kg |

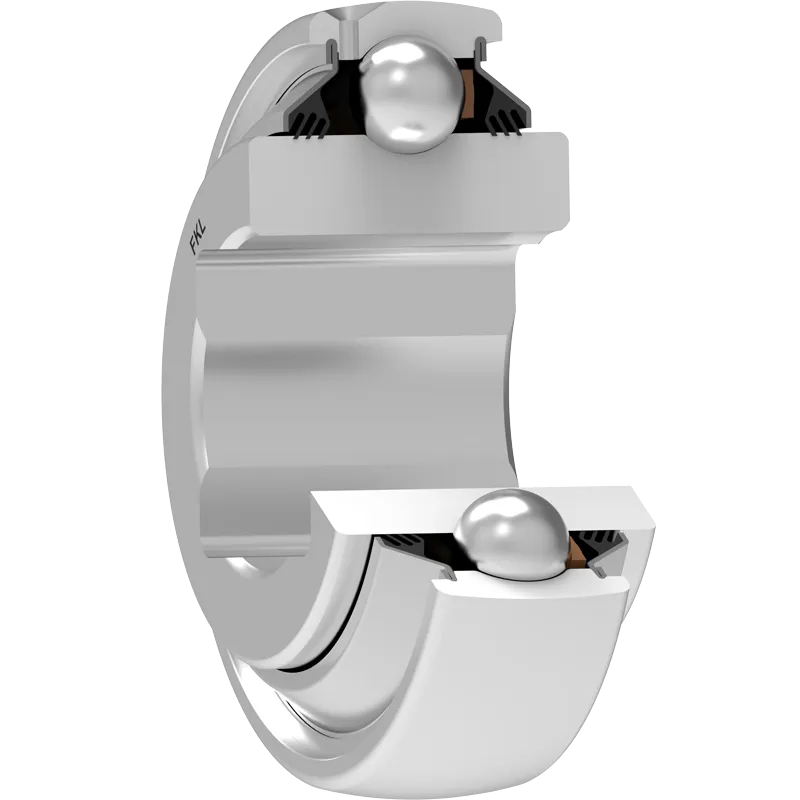

T SEAL / T SEAL (2T)
3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
Cross references
| INA | GW208PPB6 |
| FAFNIR | GW208PPB6 |
| BCA | DS208TTR6 |
| LINK BELT | 16SG7-208E3 |
