GW 208PPB17
Technical specifications

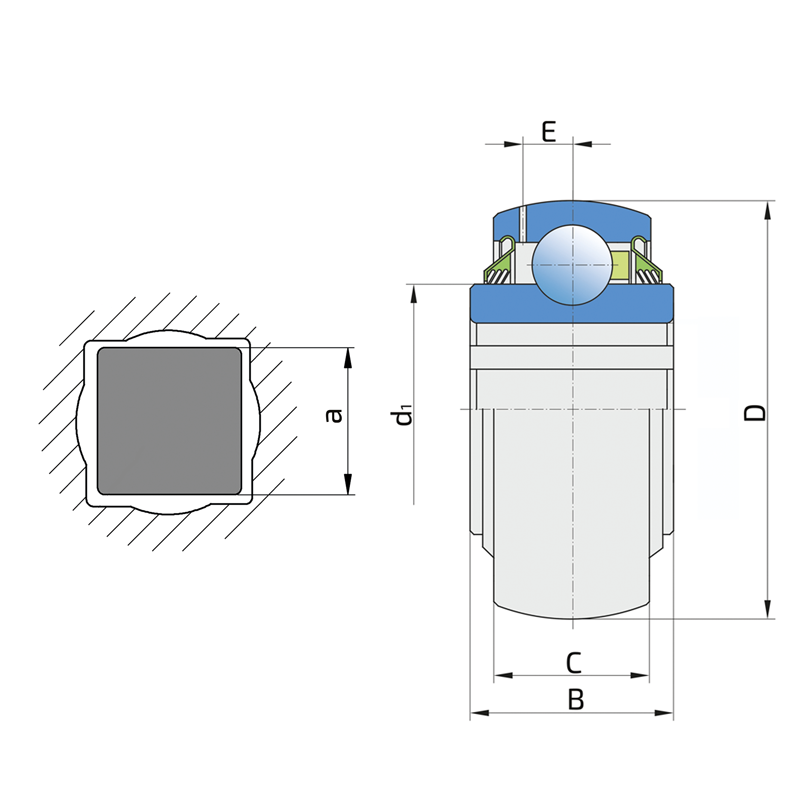

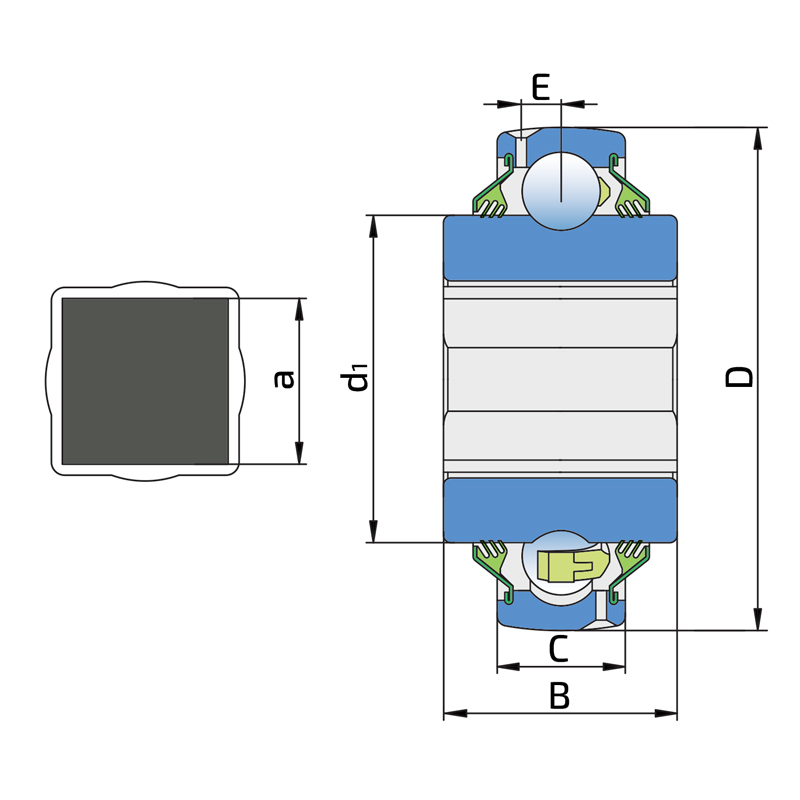

| D |
Outside diameter |
3.3578 inch |
| kg |
Mass |
2.01 lbs |
| Co |
Static load rating |
19.8 kN |
| Co |
Static load rating |
4400 lbs |
| Cdyn |
Dynamic load rating |
32.5 kN |
| Cdyn |
Dynamic load rating |
7300 lbs |
| a |
Shaft size |
28.6 mm |
| a |
Shaft size |
1 1/8 inch |
| E |
Distance from raceway centre to the hole for lubrication |
6.6 mm |
| E |
Distance from raceway centre to the hole for lubrication |
0.26 inch |
| d1 |
Outer diameter inner ring |
52 mm |
| d1 |
Outer diameter inner ring |
2.05 inch |
| C |
Width outer ring |
30.18 mm |
| C |
Width outer ring |
1.188 inch |
| B |
Width inner ring |
36.5 mm |
| B |
Width inner ring |
1.437 inch |
| D |
Outside diameter |
85.74 mm |
| kg |
Mass |
0.912 kg |
T SEAL / T SEAL (2T)
3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on
the both side.
Cross references
| INA |
GW208PPB17 |
| FAFNIR |
GW208PPB17 |
