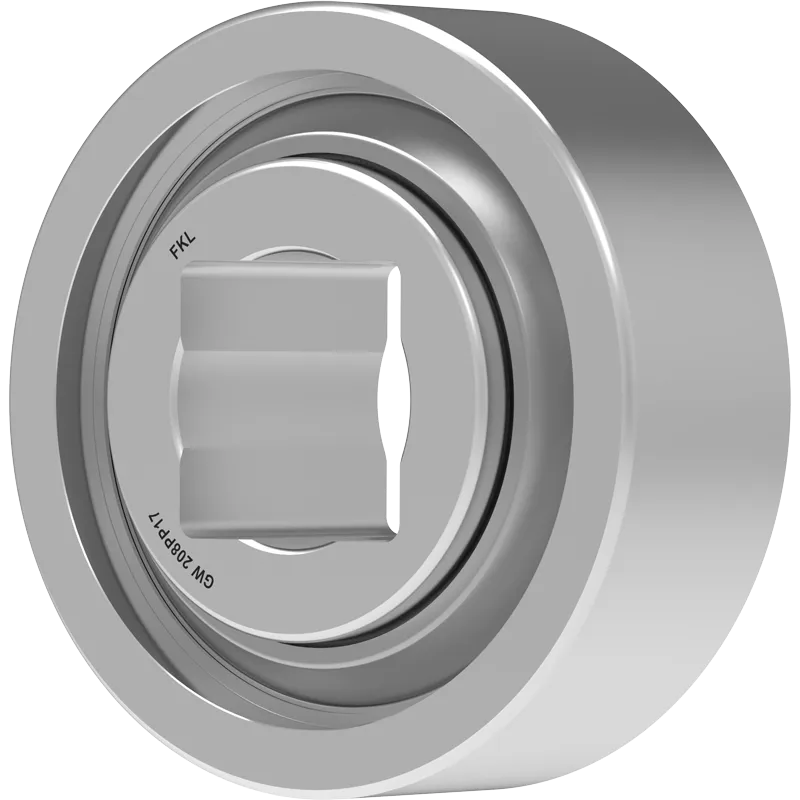

GW 208PP17

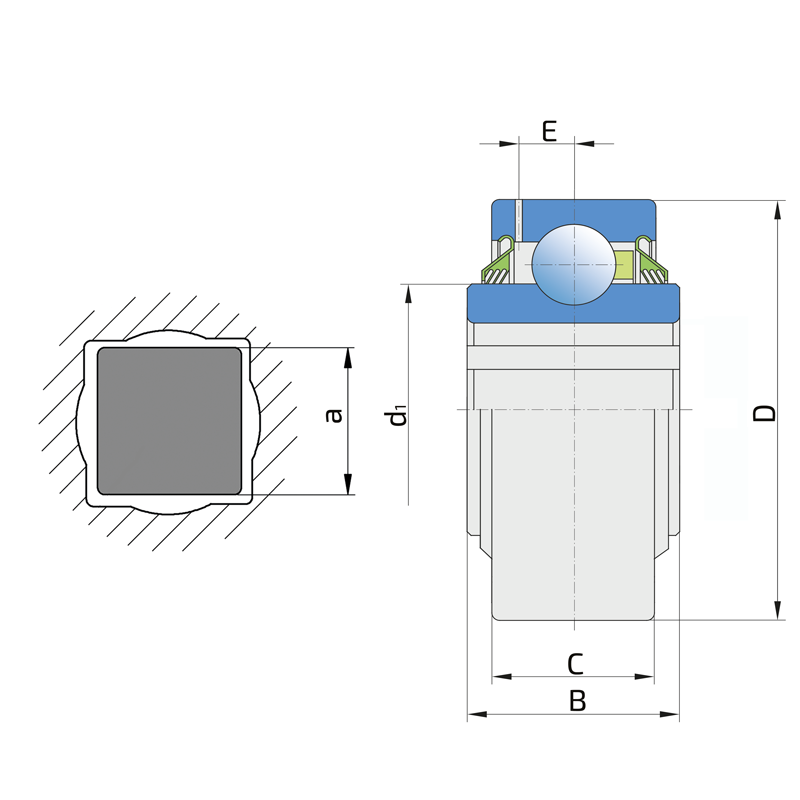

Technical specifications
| D |
Outside diameter |
3.3756 inch |
| D |
Outside diameter |
85.74 mm |
| B |
Width inner ring |
1.437 inch |
| B |
Width inner ring |
36.5 mm |
| C |
Width outer ring |
1.185 inch |
| C |
Width outer ring |
30.1 mm |
| d1 |
Outer diameter inner ring |
2.05 inch |
| d1 |
Outer diameter inner ring |
52 mm |
| E |
Distance from raceway centre to the hole for lubrication |
0.256 inch |
| E |
Distance from raceway centre to the hole for lubrication |
6.5 mm |
| a |
Shaft size |
1 1/8 inch |
| a |
Shaft size |
28.6 mm |
| kg |
Mass |
2.04 lbs |
| kg |
Mass |
0.925 kg |
| Cdyn |
Dynamic load rating |
7300 lbs |
| Cdyn |
Dynamic load rating |
32.5 kN |
| Co |
Static load rating |
4400 lbs |
| Co |
Static load rating |
19.8 kN |
| Pu |
Fatigue load limit |
0.832 kN |

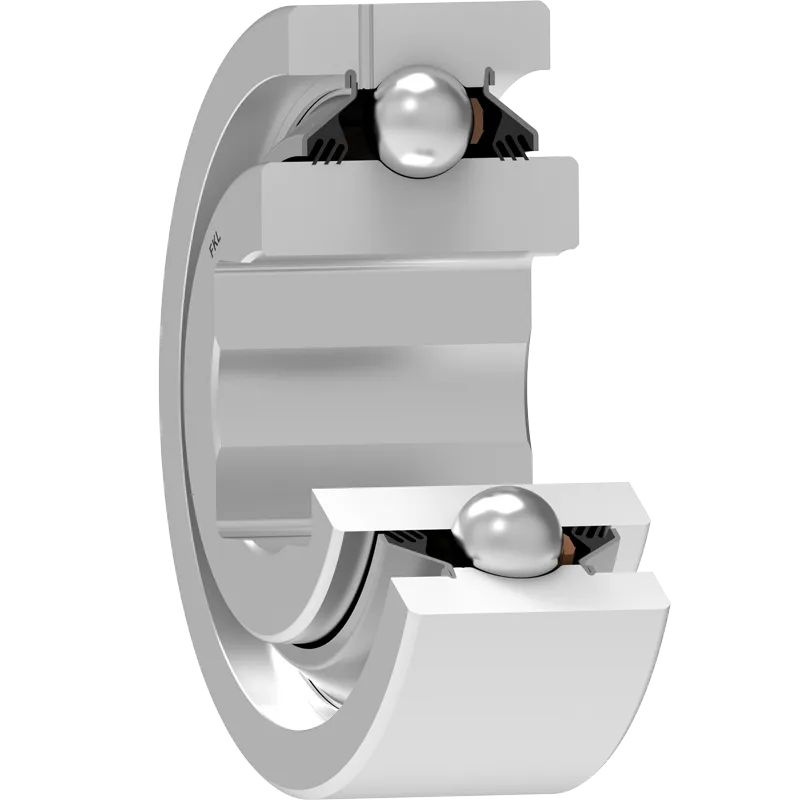

T SEAL / T SEAL (2T)
3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on
the both side.
Cross references
| INA |
GW208PP17 |
| BCA |
DC208TTR17 |
| FEDERAL MOGUL |
DC208TTR17 |
| FAFNIR |
GW208PP17 |
| TORRINGTON |
GW208PP17 |
| Bush-Hog |
14-24-63 |
| Bush-Hog |
14-36-183 |
| KABAT |
GW 208PP17 |
