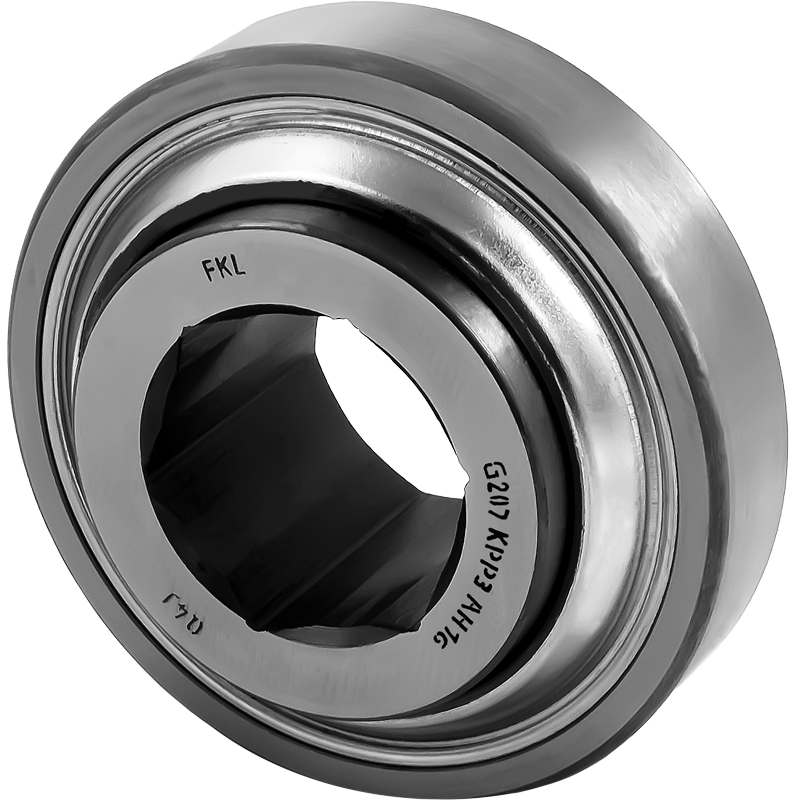

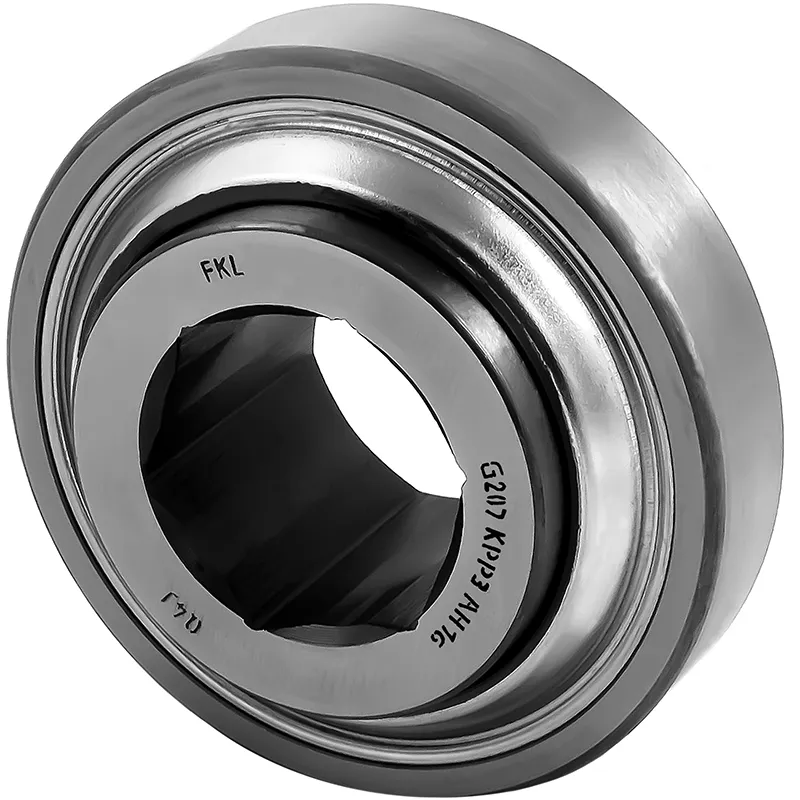

G207 KPP3 AH16

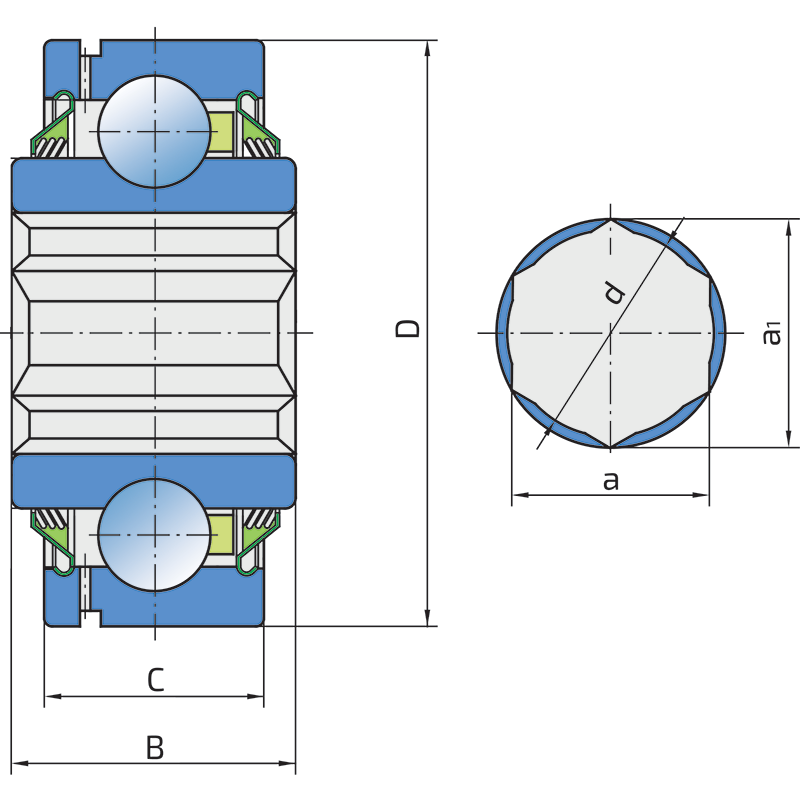

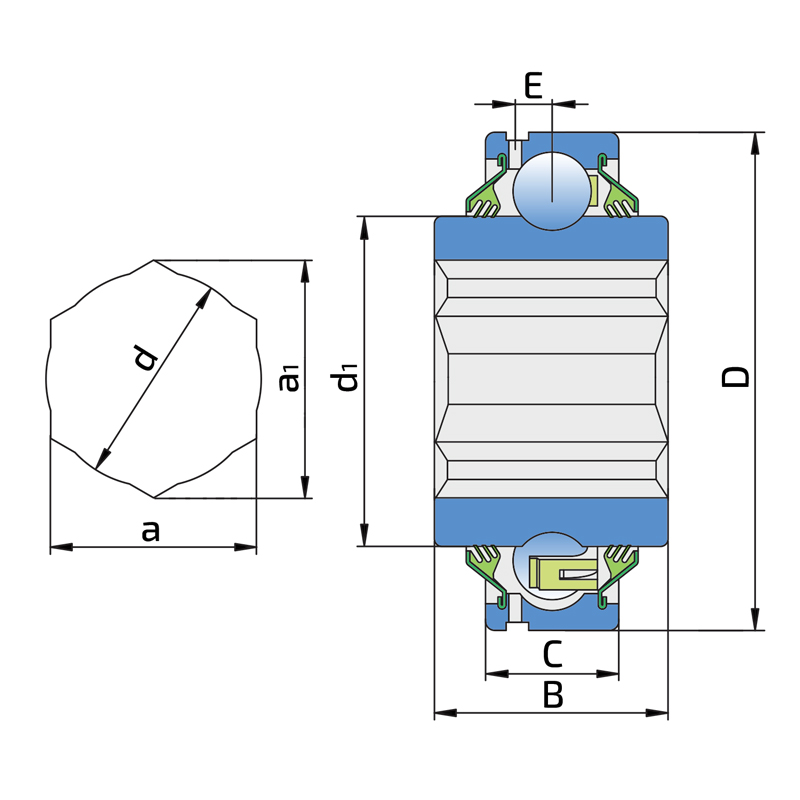

Technical specifications
| D | Outside diameter | 72 mm |
| D | Outside diameter | 2.8346 inch |
| C | Width outer ring | 19 mm |
| C | Width outer ring | 0.748 inch |
| d | Bore diameter | 32.5 mm |
| d | Bore diameter | 1.28 inch |
| d1 | Outer diameter inner ring | 46.1 mm |
| d1 | Outer diameter inner ring | 1.815 inch |
| B | Width inner ring | 38 mm |
| B | Width inner ring | 1.496 inch |
| a | Hexagonal bore | 31.78 mm |
| a | Hexagonal bore | 1.251 inch |
| a1 | Diagonal of the hexagon | 36.46 mm |
| E | Distance from raceway centre to the hole for lubrication | 5.3 mm |
| E | Distance from raceway centre to the hole for lubrication | 0.21 inch |
| kg | Mass | 0.65 kg |
| Cdyn | Dynamic load rating | 25.5 kN |
| Co | Static load rating | 15.3 kN |
| Pu | Fatigue load limit | 0.64 kN |

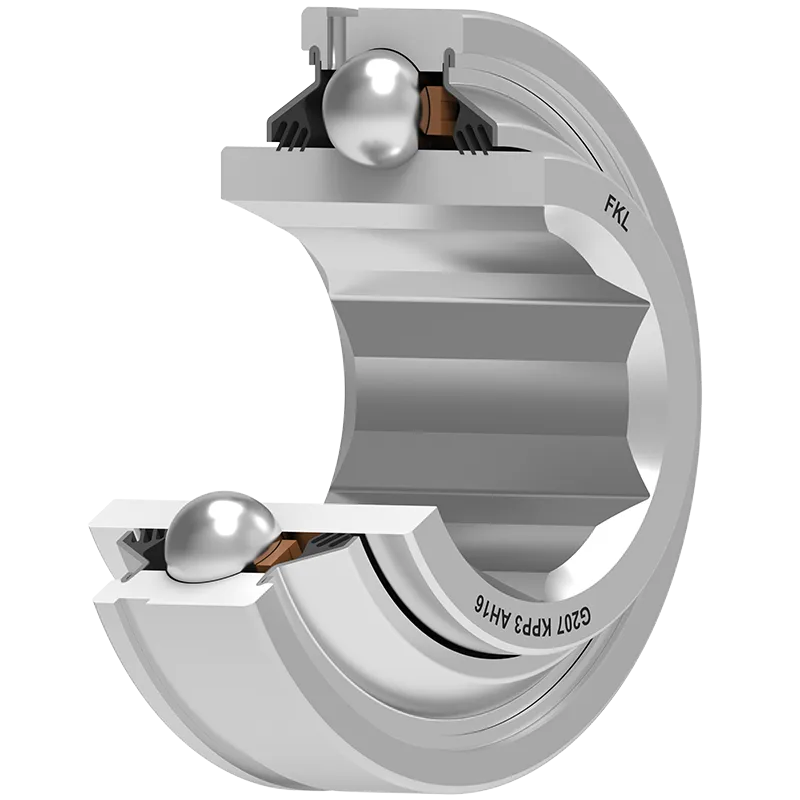

T SEAL / T SEAL (2T)
3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
Cross references
| JOHN DEERE | JD10458 |
| NTN | SBX07-A02.C4 |
