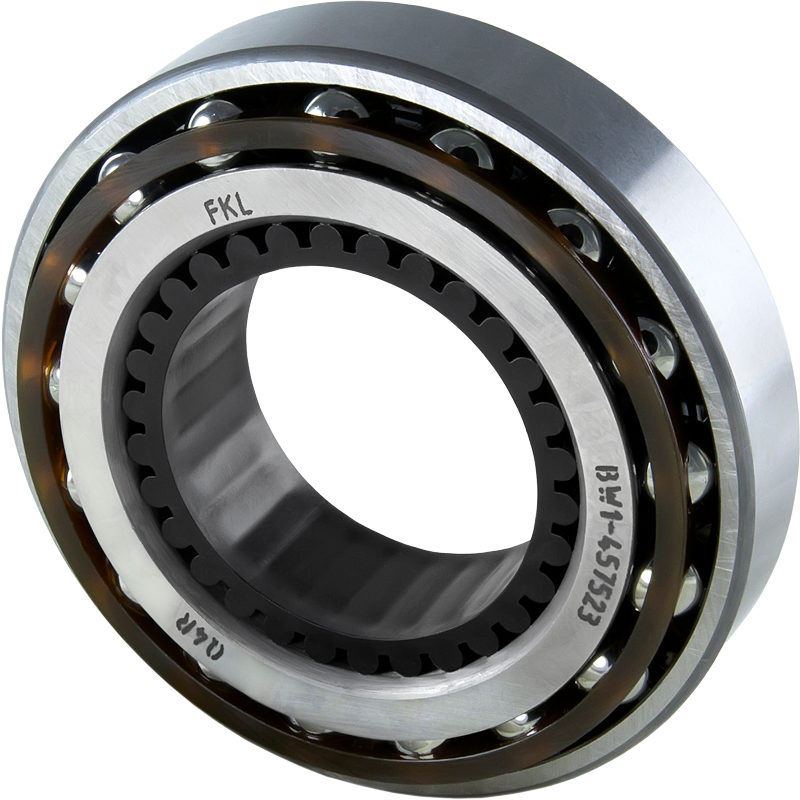

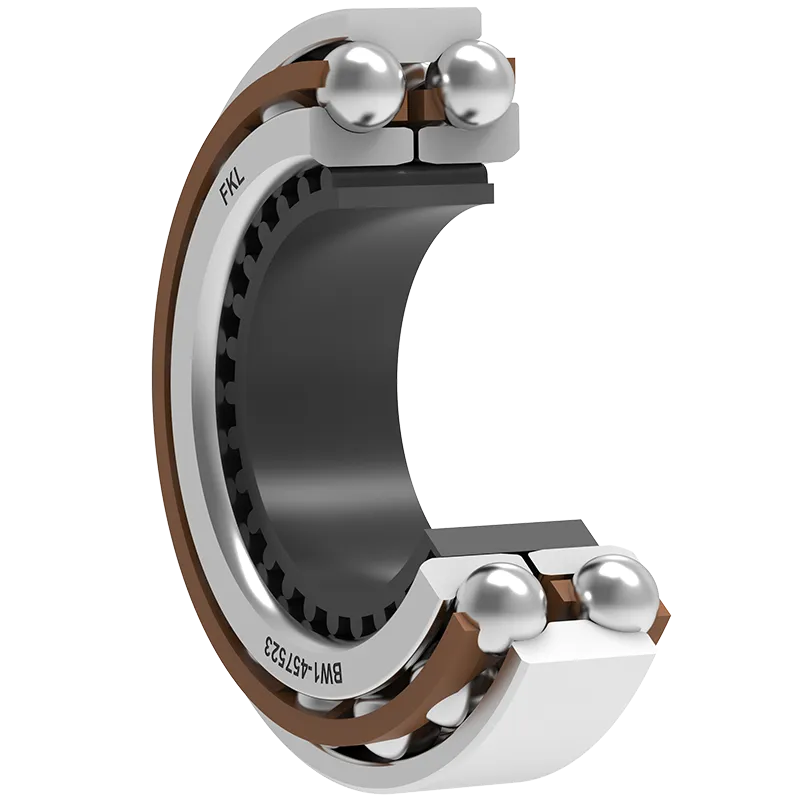

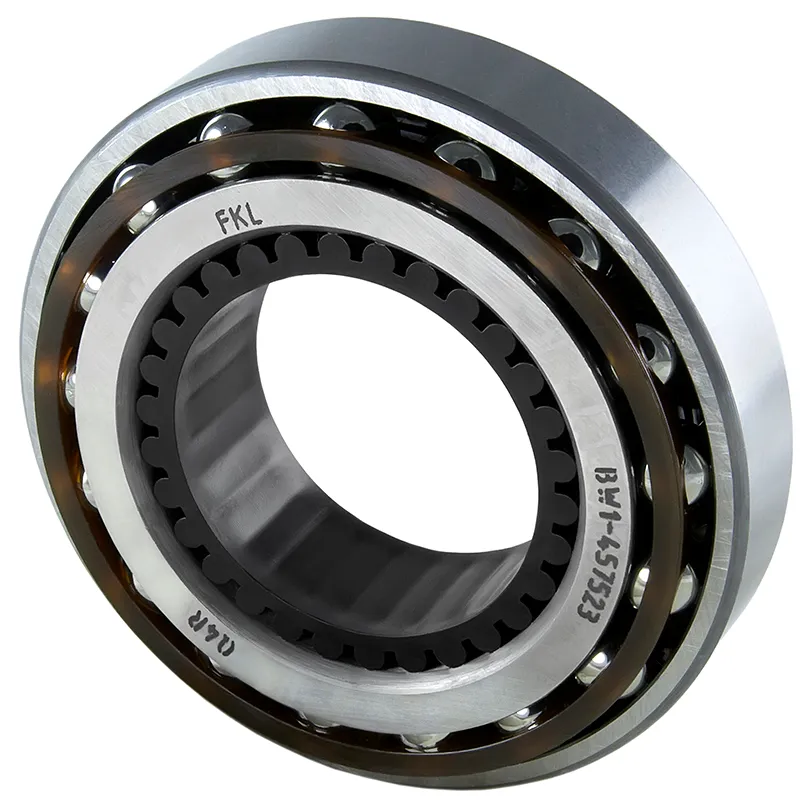

BW1-457523

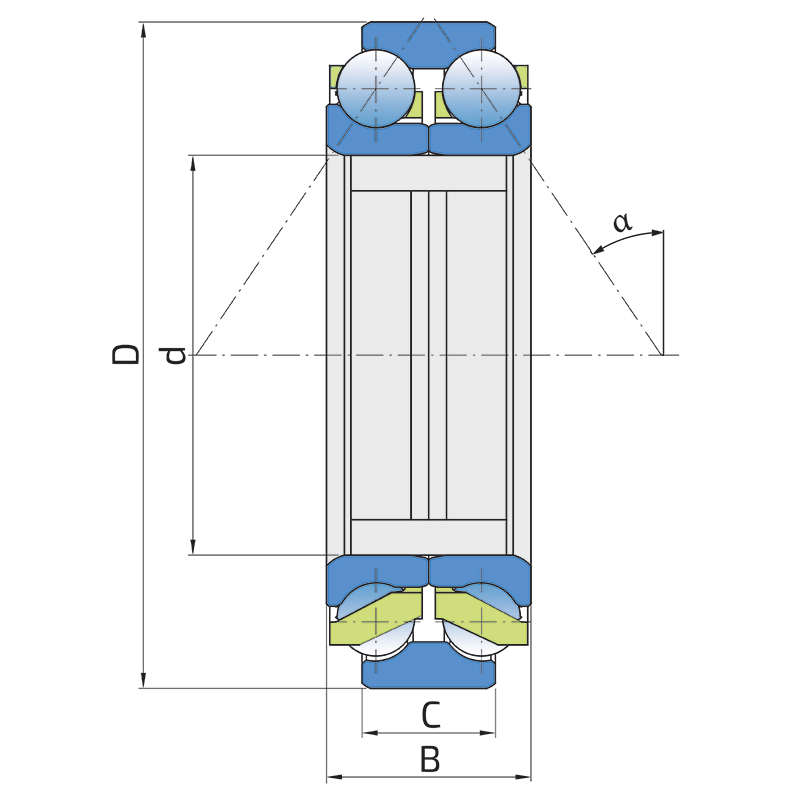

Technical specifications
| d |
Bore diameter |
45 mm |
| D |
Outside diameter |
75 mm |
| B |
Width inner ring |
23 mm |
| C |
D-shape hole cut out dimension |
15 mm |
| α |
Contact angle |
34 ° |
| kg |
Mass |
0.345 kg |
| Cdyn |
Dynamic load rating |
35 kN |
| Co |
Static load rating |
34 kN |
| Pu |
Fatigue load limit |
1.428 kN |
Cross references
| PFI |
PW4575002715CS |
| KUHN |
GB12508 |
| KUHN |
2085190X |
| PFI |
PA45750023/15CS |
| SNR |
GB 10721 S03 |
| JF-STOLL |
GX2400S |
| JF-STOLL |
GX2800S |
| JF-STOLL |
GX3200S |
| FERSA |
BB00165 |
| JOHN DEERE |
EB 81104577 |
| JOHN DEERE |
911191202R |
| KUHN |
81104577 |
| KONGSKILDE |
2085-627X |
| SNR |
GB 12508 |
Installations
| KUHN |
GMD 500 |
| KUHN |
GMD 600 |
| KUHN |
GMD 700 |
