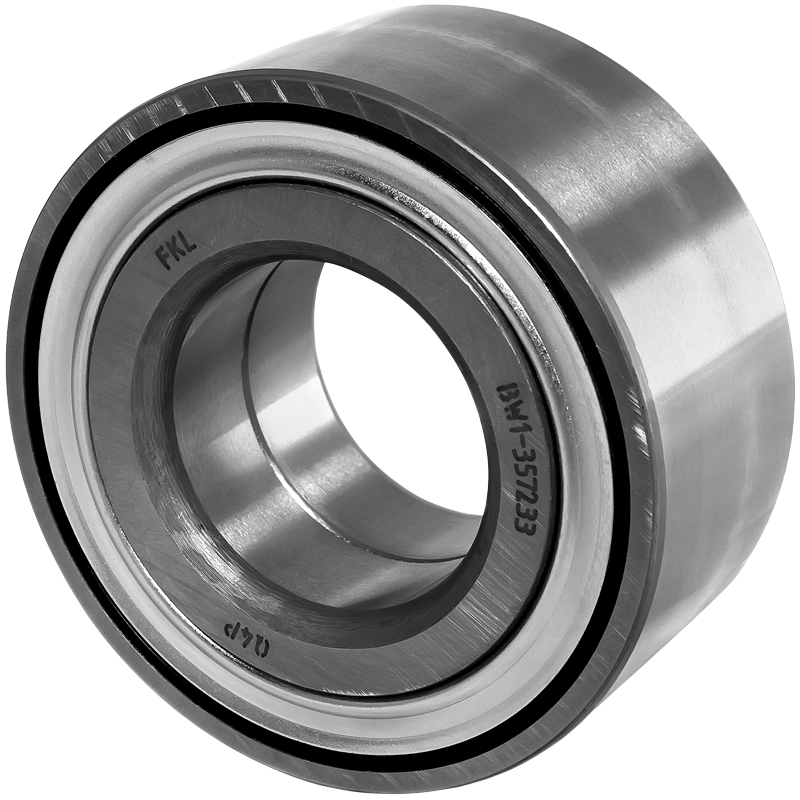

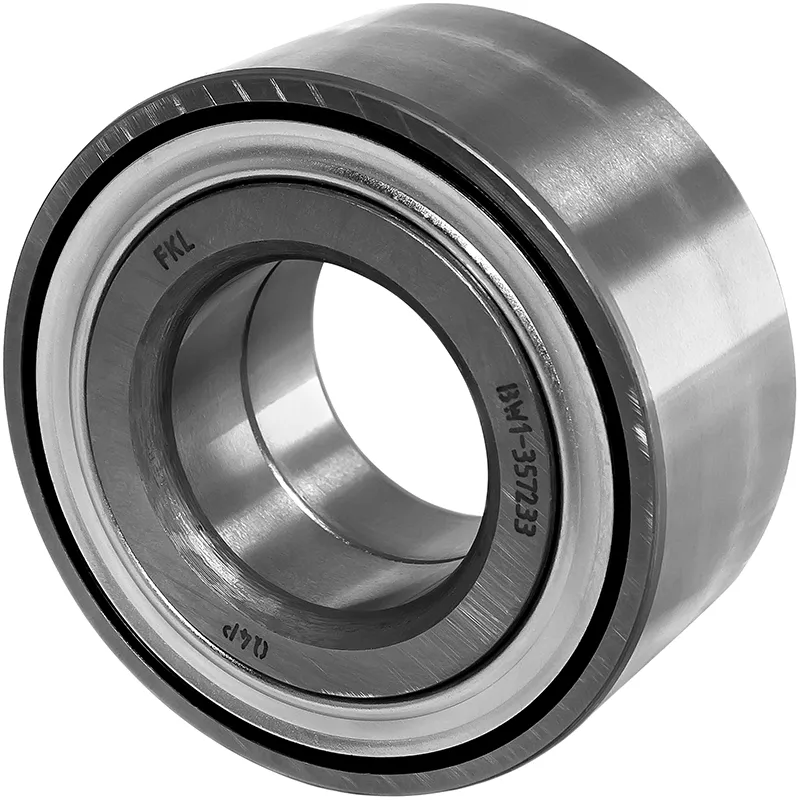

BW1-357233

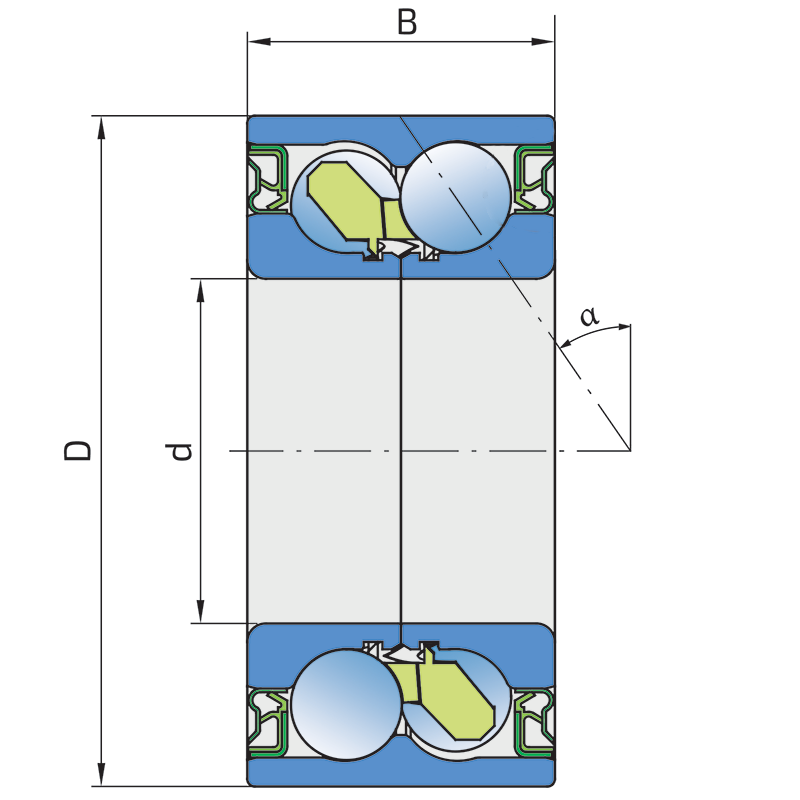

Technical specifications
| d |
Bore diameter |
35 mm |
| D |
Outside diameter |
72.043 mm |
| B |
Width inner ring |
33 mm |
| α |
Contact angle |
40 ° |
| kg |
Mass |
0.553 kg |
| Cdyn |
Dynamic load rating |
47.4 kN |
| Co |
Static load rating |
38.3 kN |
| Pu |
Fatigue load limit |
1.609 kN |

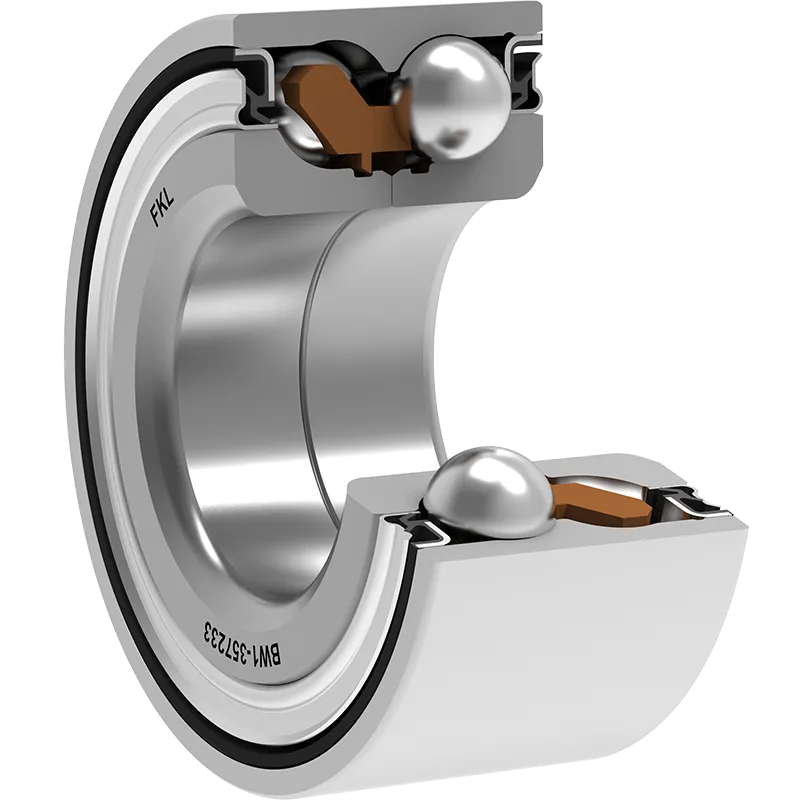

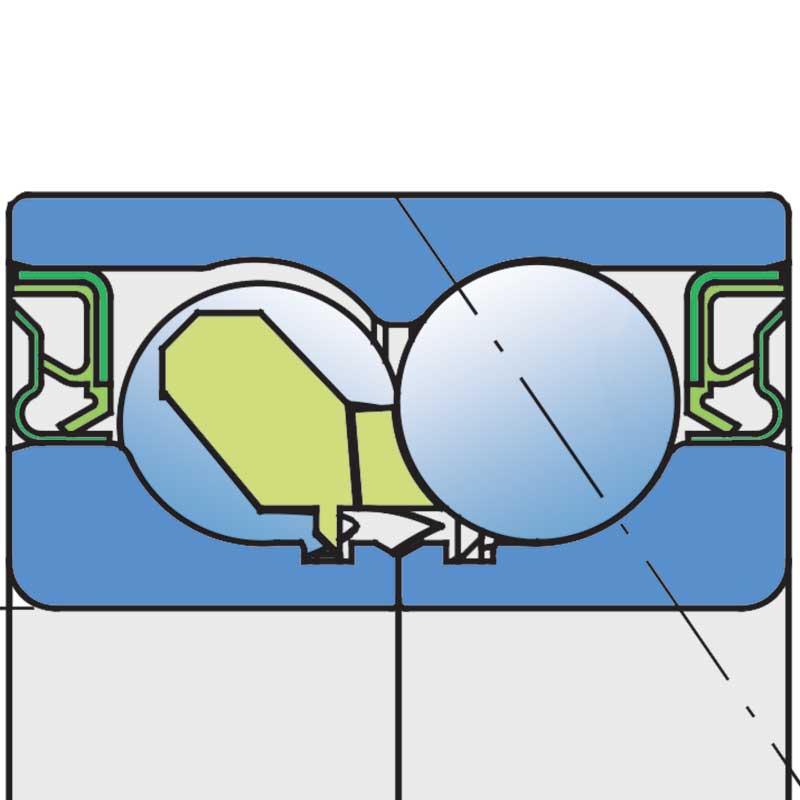

CASSETTE SEAL / CASSETTE SEAL
Cassette seal on the both side. This sealing provides excellent protection from contamination and low friction. Therefore, bearings with this type of sealing can be used for high
speed applications.
Cross references
| SKF |
BAH0013D |
| SKF |
BAH0013E |
| PFI |
PW35720033CS |
| FERSA |
F16026 |
| SNR |
GB44386 |
| SNR |
GB40582 |
| SNR |
GB40714 |
| SNR |
GB40878 |
| SNR |
R159.14 |
| POTTINGER |
402.169 |
| POTTINGER |
402.163 |
| POTTINGER |
402.162 |
| LEMKEN |
31910044 |
| JOHN DEERE |
DC 23368 |
| JOHN DEERE |
GB40878 |
| KUHN |
81103578 |
Installations
| LEMKEN |
RUBIN 10/700 |
| POTTINGER |
SYNKRO |
| POTTINGER |
TERRADISC |
| JOHN DEERE |
324 |
| JOHN DEERE |
328 |
| JOHN DEERE |
331 |
| JOHN DEERE |
946 |
| JOHN DEERE |
956 |
| JOHN DEERE |
1340 |
| JOHN DEERE |
1350 |
| JOHN DEERE |
1360 |
| JOHN DEERE |
1365 |
| JOHN DEERE |
1460 |
| JOHN DEERE |
1470 |
