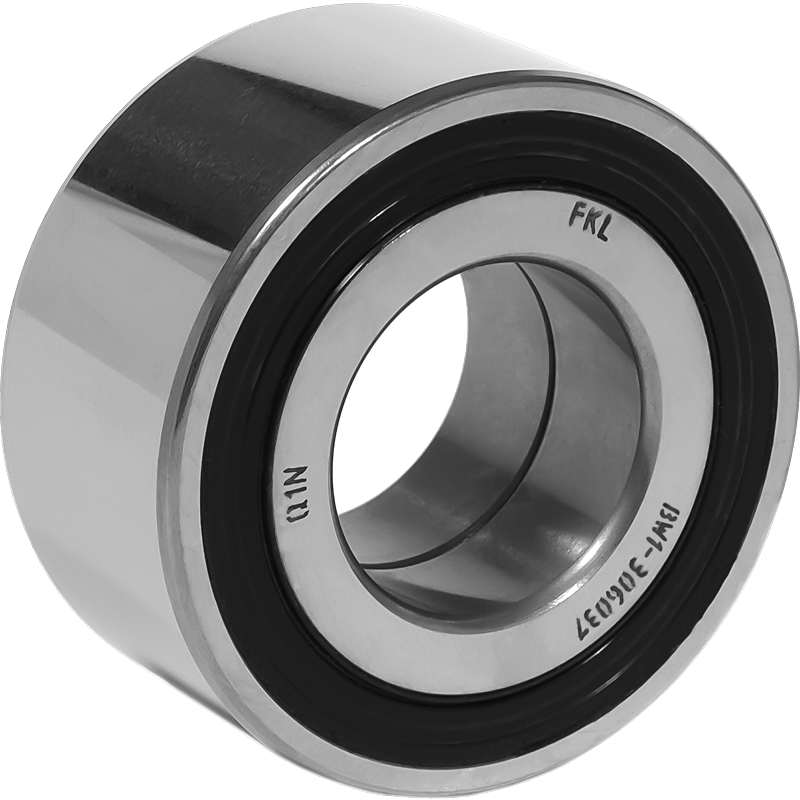

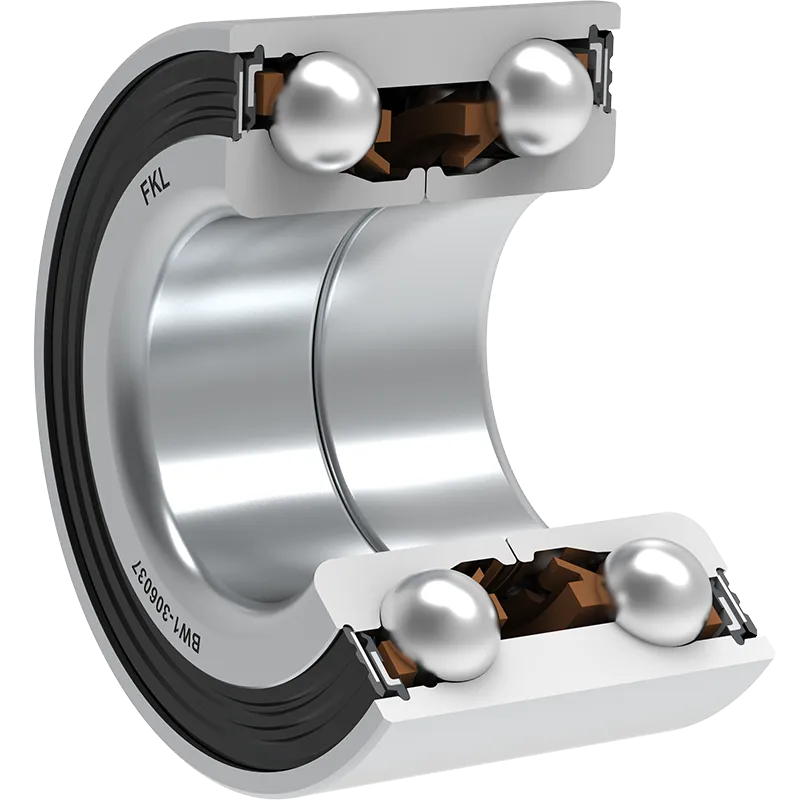

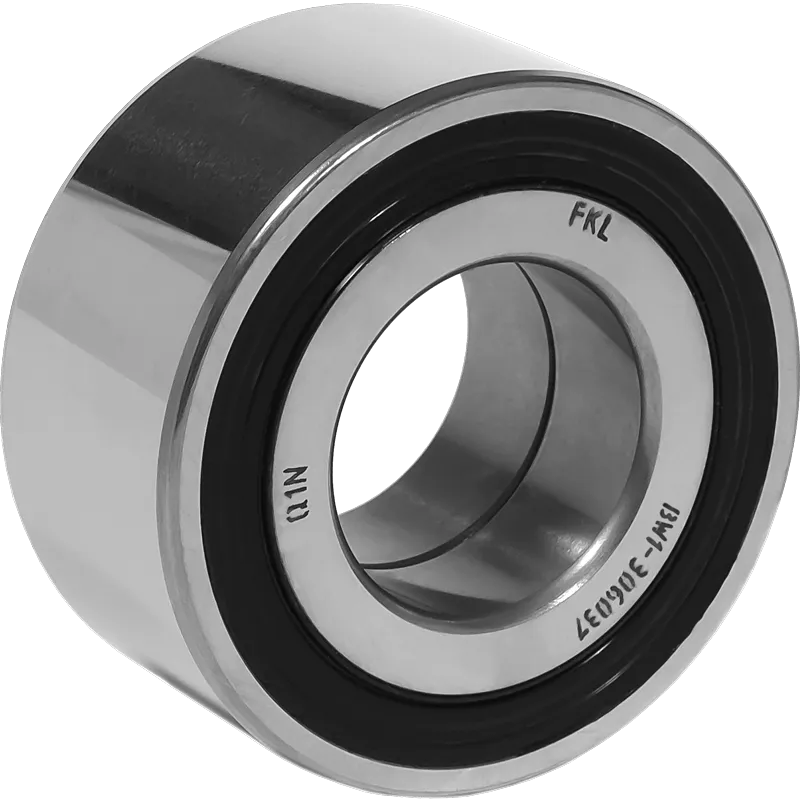

BW1-306037

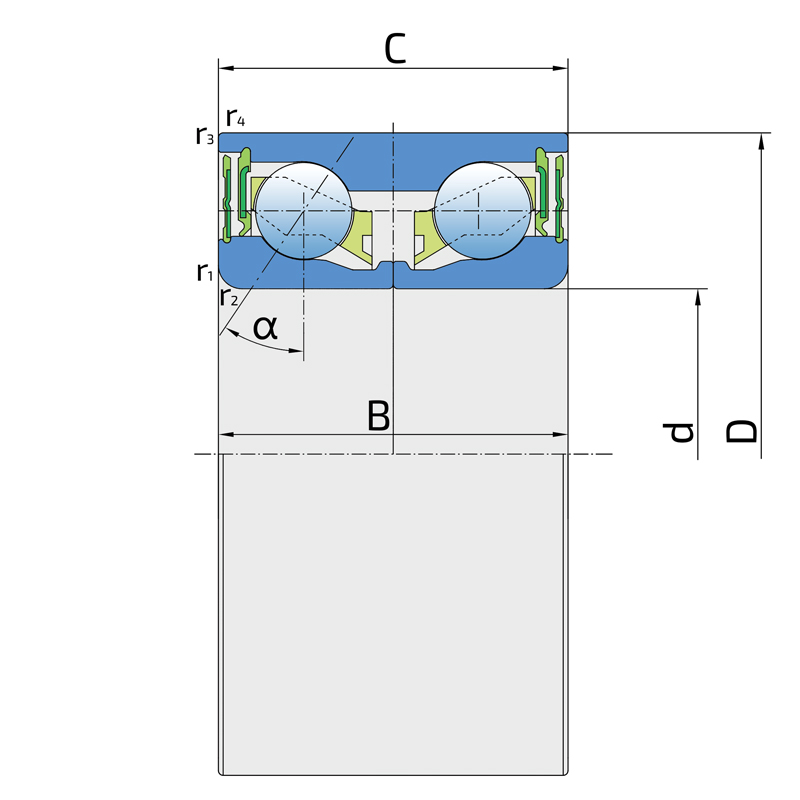

Technical specifications
| d |
Bore diameter |
30 mm |
| D |
Outside diameter |
60.03 mm |
| B |
Width inner ring |
37 mm |
| C |
Width outer ring |
37 mm |
| α |
Contact angle |
34 ° |
| r1,2 |
Inner ring Chamfer dimension |
2.5 mm |
| r3,4 |
Outside ring Chamfer dimension |
0.5 mm |
| kg |
Mass |
0.47 kg |
| Cdyn |
Dynamic load rating |
37.5 kN |
| Co |
Static load rating |
26.5 kN |
| Pu |
Fatigue load limit |
1.113 kN |

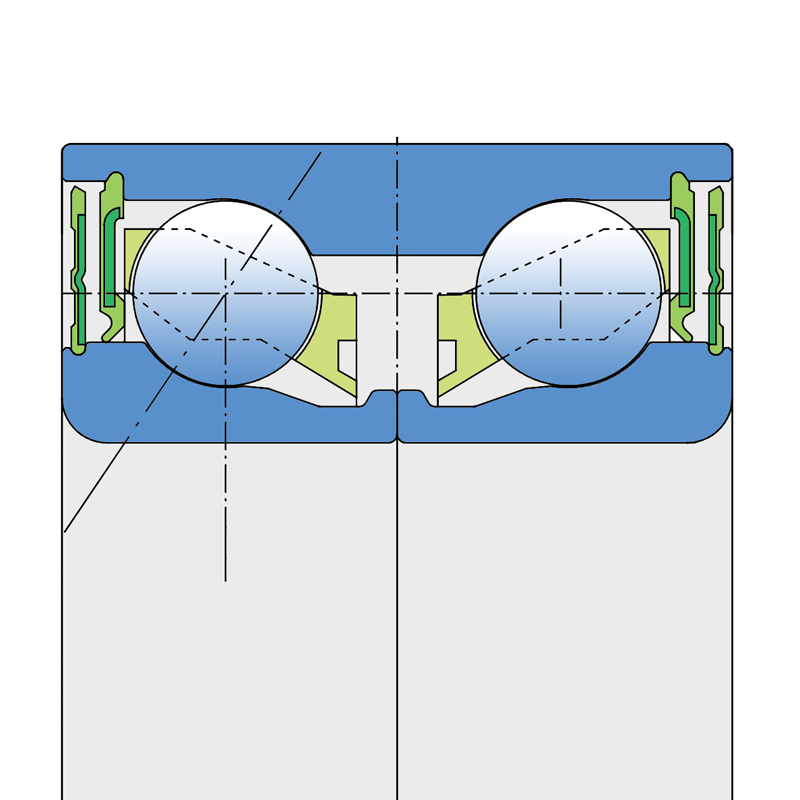

DOUBLE RS SEAL / DOUBLE RS SEAL (4RS)
The 4RS sealing on bearing refers to a sealing system that includes four rubber seals (RS) - two on each side of the bearing.
2RS seal on each side ensure good shielding from dirt, dust, and moisture; reduces grease leakage, extending bearing lifetime; reduces the need for frequent re-lubrication.
Cross references
| SKF |
633313C |
| SKF |
BA2B633313C |
| FAG |
545312A |
| SNR |
GB10790 |
| PBF |
133-637.TNG-2RS |
| FAG |
713 6901 60 |
| SKF |
BA2B633667BB |
| SKF |
VKBC20019 |
| FLT |
CBK199-2RS |
| FLT |
CBK441-BTNG |
| FERSA |
F16001 |
| PFI |
PW30600337CS |
| SKF |
VKBA559 |
