BDM ARMOR 2.0

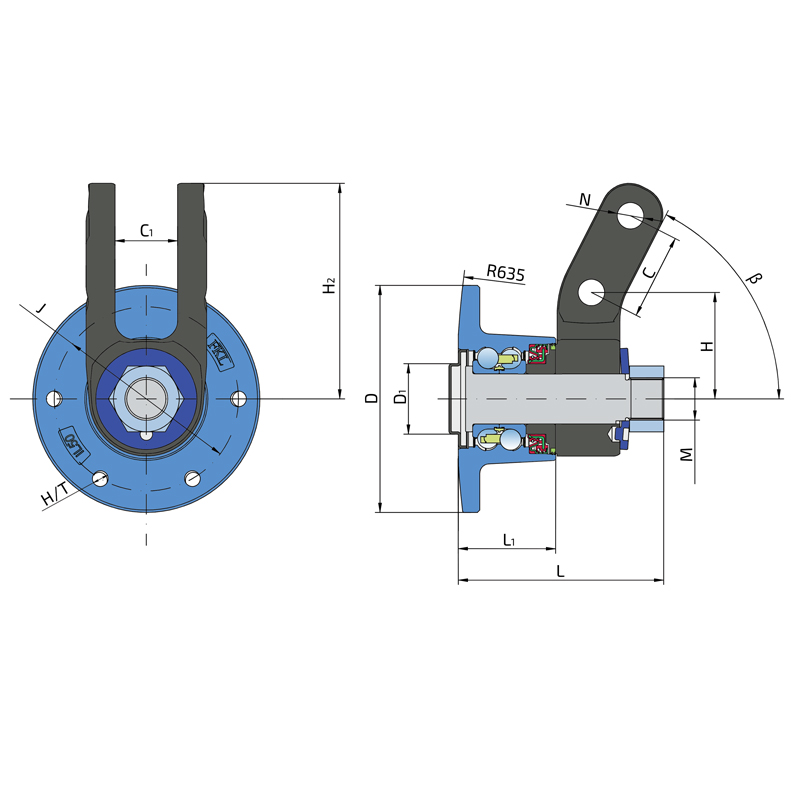

Technical specifications
| J | Pitch circle diameter | 120 mm |
| D | Outside diameter | 145 mm |
| D1 | Centar bore on the disc | 45 mm |
| C | Distance between holes | 55 mm |
| C1 | Disk harrow arm width | 40 mm |
| M | Outher Thread | M27x2 mm |
| H/T | Hole/Thread | 6xM12x1.75 mm |
| H | Distance between the bearing axis and the mounting hole | 68 mm |
| H2 | Distance between the bearing axis and the end of the holder | 137.7 mm |
| N | Hole diameter | 17 mm |
| L | Total length | 131.2 mm |
| L1 | Total flange length | 62.2 mm |
| R | The radius of the built-in disk | 635 mm |
| β | Angle of the holder | 63 ° |
| kg | Mass | 6.08 kg |
| Cdyn | Dynamic load rating | 60 kN |
| Co | Static load rating | 45.8 kN |
| Pu | Fatigue load limit | 1.92 kN |

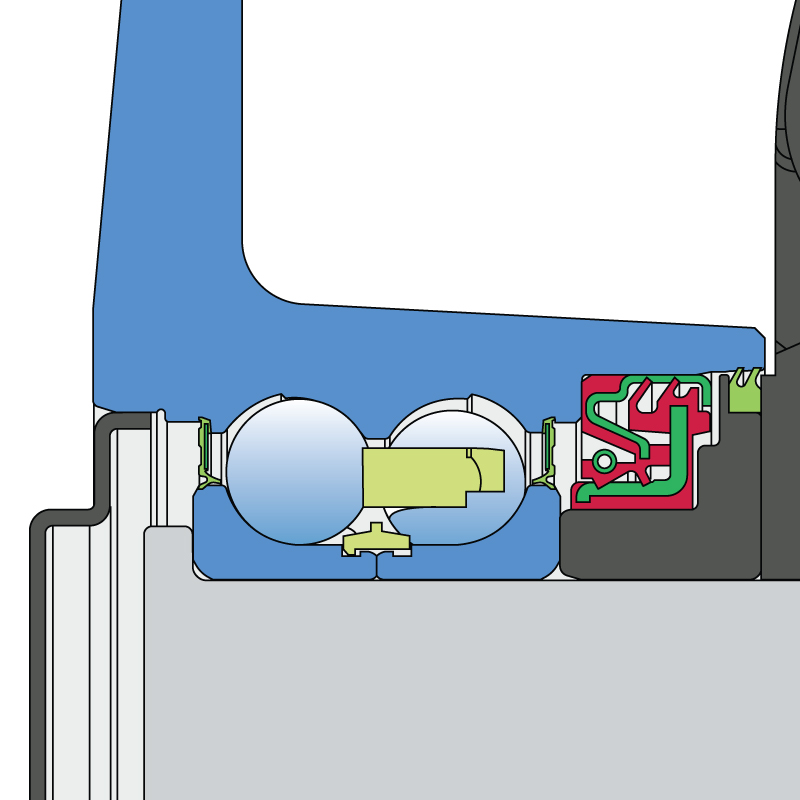

SHEET METAL SHIELD + RS SEAL / RS SEAL + DIRTBLOCK SEAL + DOUBLE SEAL + FORGED COVER PLATE
Sheet metal shield and RS seal on the base side and RS seal, Dirtblock seal, Double seal and Forged cover plate on the front side which is exposed to contaminants.
Sheet metal shield and RS seal together with attached special disc eliminates the possibility of contamination from the base side.
Dirtblock seal is designed for hard working conditions at unfriendly environment. Half metal – half rubber outside diameter provides reliable seal retention in the bore and improves sealing performance. Inside diameter is covered by rubber and improves sealing performance and easy installation. Forged cover plate is additional, strong protection of the Dirtblock seal against mechanical damage.
Additional double seal protects the bearing from contaminant penetration and ensures a longer service life of the bearing.
Cross references
| УМНАЯ СЕЛЬХОЗТЕХНИКА (АГРИГРЕЙТ) ООО | BDM ARMOR 2.0 |
| БДМ - АГРО ООО | BDM ARMOR 2.0 |
| ДИАС ООО | BDM ARMOR 2.0 |
| БДМ-АГРОЦЕНТР ООО | BDM ARMOR 2.0 |
| Радогост - Маш ООО | BDM ARMOR 2.0 |
Installations
| АГРИГРЕЙТ | БДМ |
| БДМ-АГРО | БДМ |
| БДМ-АГРОЦЕНТР | БДМ |
| DIAS | БДМ |
| РАДОГОСТ-МАШ | БД |
