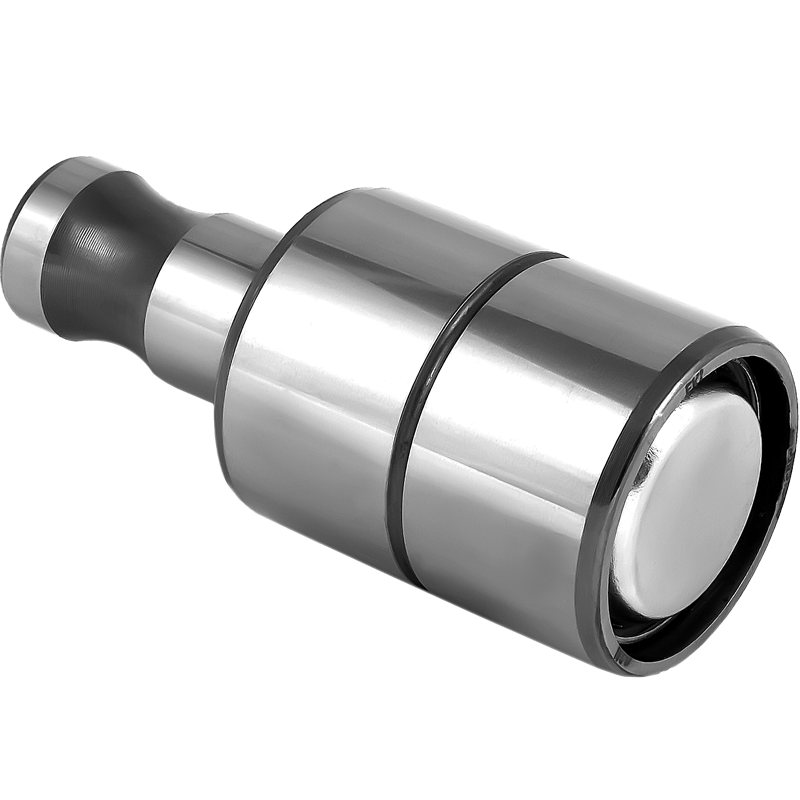

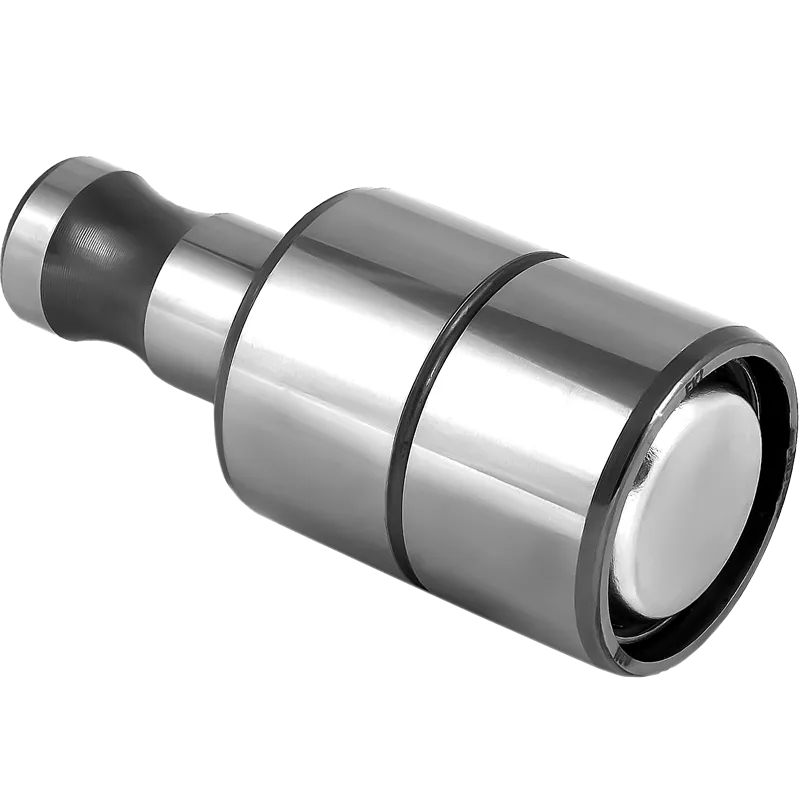

885154B.1

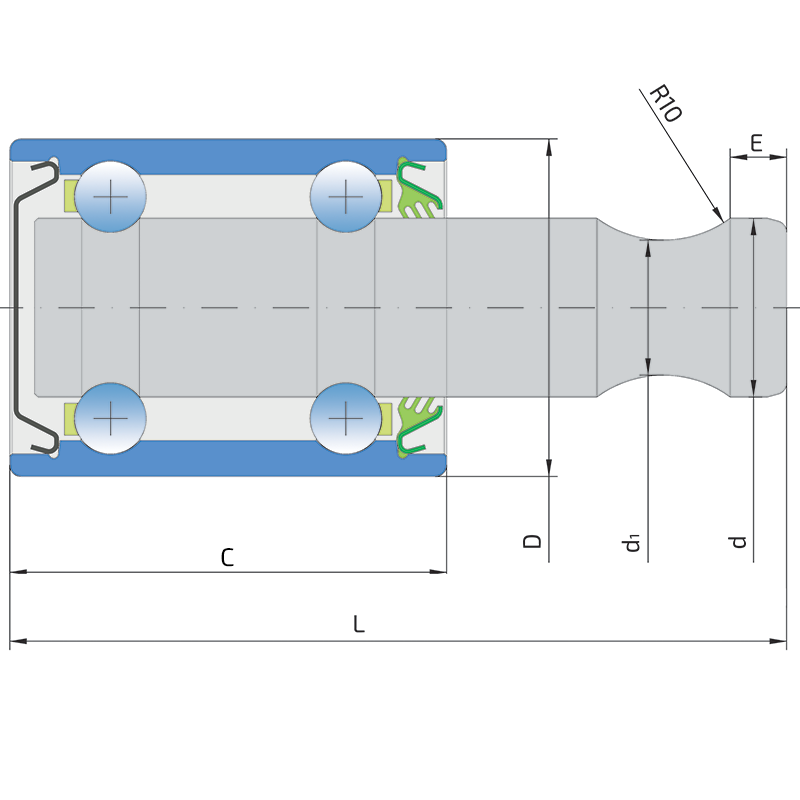

Technical specifications
| d |
Shaft diameter |
15.88 mm |
| d1 |
Shaft diameter at the location of the circular groove |
12 mm |
| D |
Outside diameter |
30 mm |
| L |
Total length |
69 mm |
| C |
Width outer ring |
38.8 mm |
| E |
Distance between face and the groove |
5 mm |
| kg |
Mass |
0.183 kg |
| Cdyn |
Dynamic load rating |
5.15 kN |
| Co |
Static load rating |
2.94 kN |
| Pu |
Fatigue load limit |
0.124 kN |

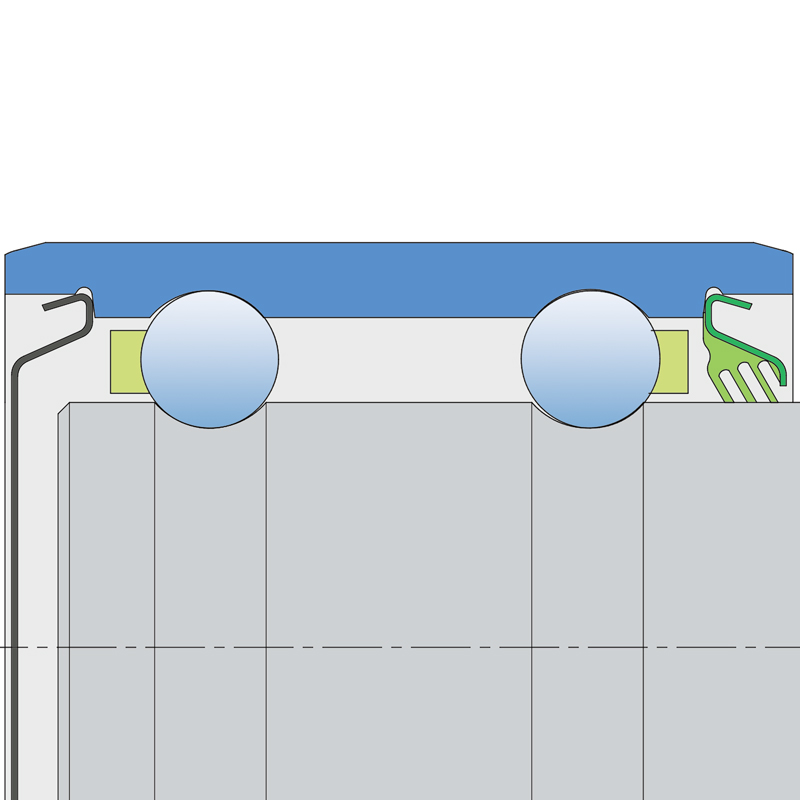

SHEET METAL SHIELD / T SEAL
Sheet metal shield on one side and triple seal on the other. The sheet metal shield eliminates the possibility of contamination, while the triple seal on the other side provides long-lasting protection against the penetration of all types of contaminants.
Cross references
| OTICO |
885154B.1 |
| JOHN DEERE |
AN131668 |
| BCA |
885154B |
| GREAT PLAINS |
822-023C |
| HORSCH |
00310131 |
| JOHN DEERE |
AA49161 |
| KOYO |
IB06930S |
| MASSEY FERGUSON |
446612M1 |
| NOBLE |
369851 |
| TIMKEN |
885154B |
| INA |
WB01750 |
| JOHN DEERE |
AA59161 |
| JOHN DEERE |
AA38106 |
| PEER |
WP5203-KRP2-N-A217 |
| HORSCH |
96140018 |
| MASSEY FERGUSON |
7535011 |
| KOYO |
1806930S |
| RBF |
PN00043 |
| GREAT PLAINS |
851-SMA885154B |
| PEER |
PER.WP5203 NRP2 |
| LARGO |
885154B.1 |
| FAG |
W2289-3 |
| KABAT |
885154B |
| KABAT |
P38106B |
Installations
| HORSCH |
PRONTO PRESS WHEEL |
| JOHN DEERE |
7200-7300 |
| JOHN DEERE |
1700 |
| JOHN DEERE |
DB planters |
| JOHN DEERE |
DR planters |
