885152

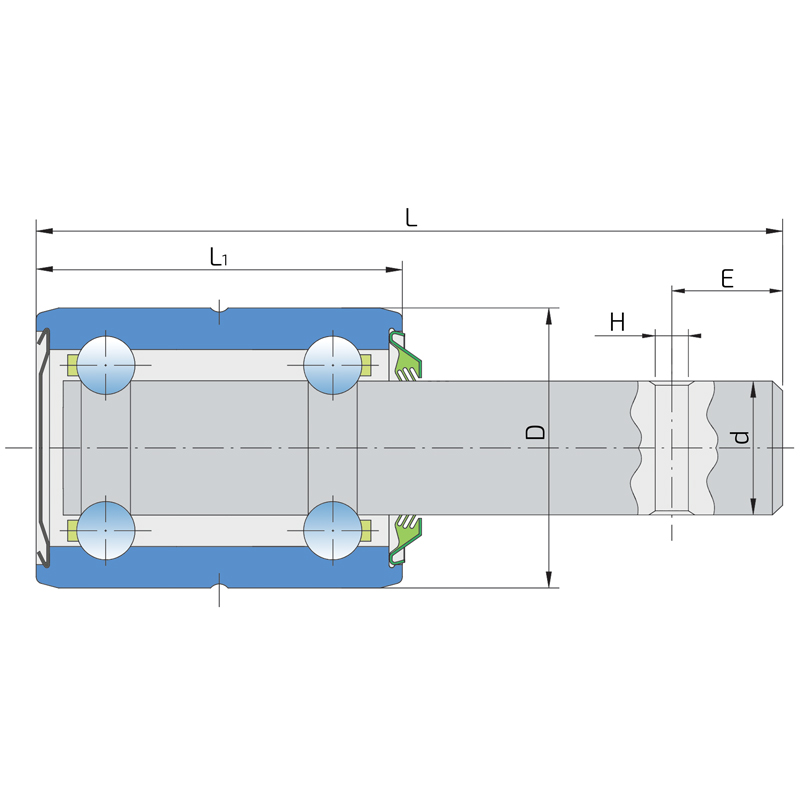

Technical specifications
| d |
Bore diameter |
15.918 mm |
| D |
Outside diameter |
30 mm |
| L |
Total length |
69.3 mm |
| L1 |
Total flange length |
38.9 mm |
| H |
Hole diameter |
6.5 mm |
| E |
Hole center line distance to the side face of the inner ring |
11.2 mm |
| kg |
Mass |
0.178 kg |
| Cdyn |
Dynamic load rating |
5.15 kN |
| Co |
Static load rating |
2.94 kN |
| Pu |
Fatigue load limit |
0.124 kN |

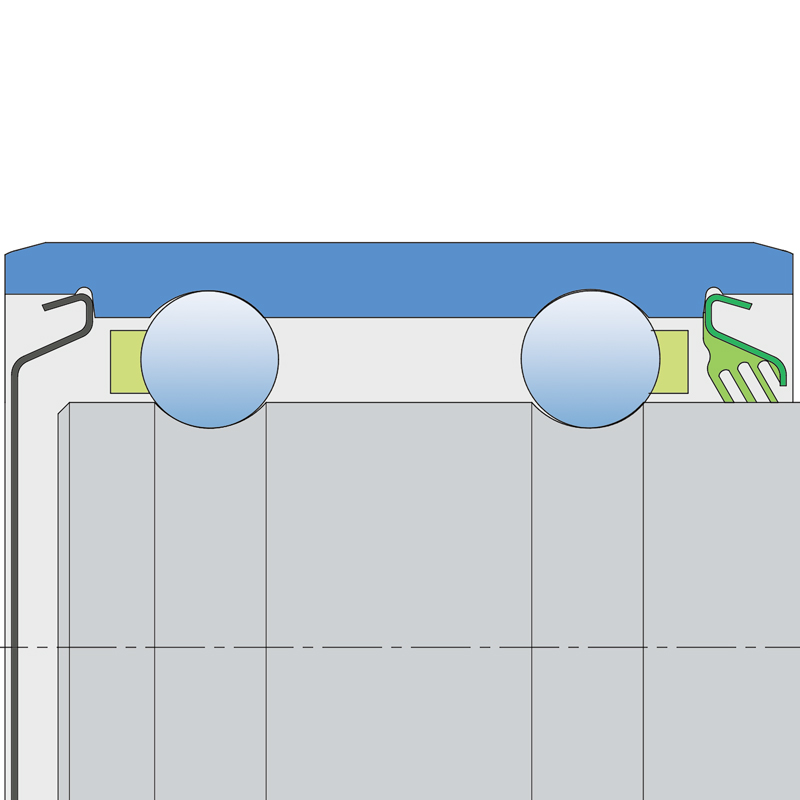

SHEET METAL SHIELD / T SEAL
Sheet metal shield on one side and triple seal on the other. The sheet metal shield eliminates the possibility of contamination, while the triple seal on the other side provides long-lasting protection against the penetration of all types of contaminants.
Cross references
| KINZE |
GA2022 |
| JOHN DEERE |
AA35741 |
| CASE |
128558C91 |
| TORO |
751290 |
| TORO |
AC70593891 |
| GASPARDO |
F04100041R |
| CASE |
ST022-096 |
| JOHN DEERE |
AA21015 |
| KINZE |
FA2022 |
| JOHN DEERE |
AA35951B |
| CNH |
128558C91 |
| CNH |
ST 022-096 |
| WHITE |
70893891 |
| PFI |
18073305 |
| JOHN DEERE |
AA35951 |
| KABAT |
885152 |
Installations
| KINZE |
2000 Series |
| WHITE |
5100 series |
| WHITE |
5700 series |
