6307

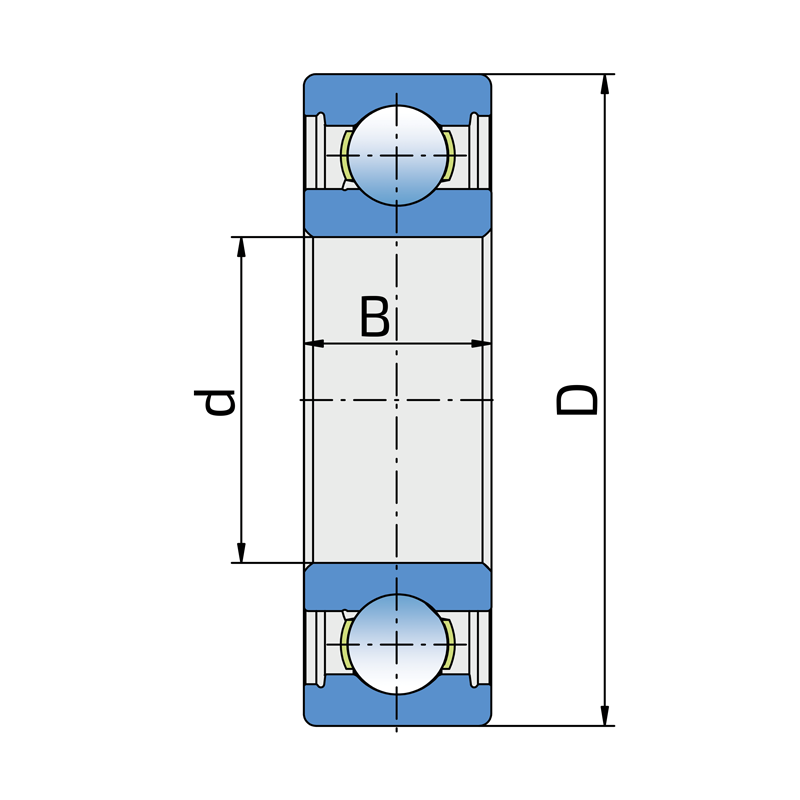

Technical specifications
| d | Bore diameter | 35 mm |
| D | Outside diameter | 80 mm |
| B | Width inner ring | 21 mm |
| kg | Mass | 0.46 kg |
| Cdyn | Dynamic load rating | 35.1 kN |
| Co | Static load rating | 19 kN |
| Pu | Fatigue load limit | 0.798 kN |
Cross references
| РОСТСЕЛЬМАШ | 6307 |
Installations
| РОСТСЕЛЬМАШ | РСМ-100.75.30 ЖР-4000 |
| РОСТСЕЛЬМАШ | Дон-1500Б |
