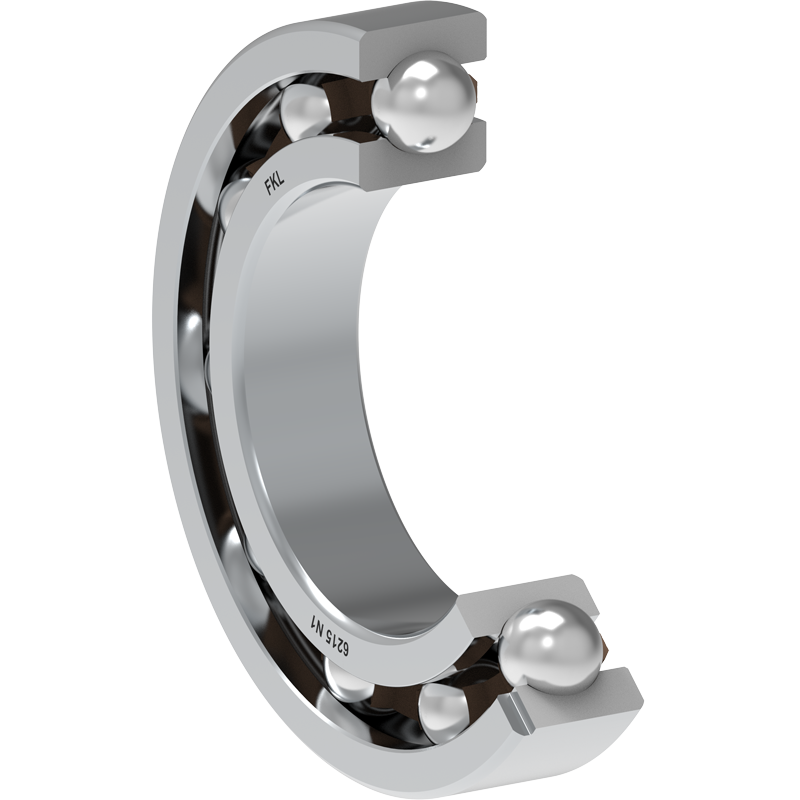

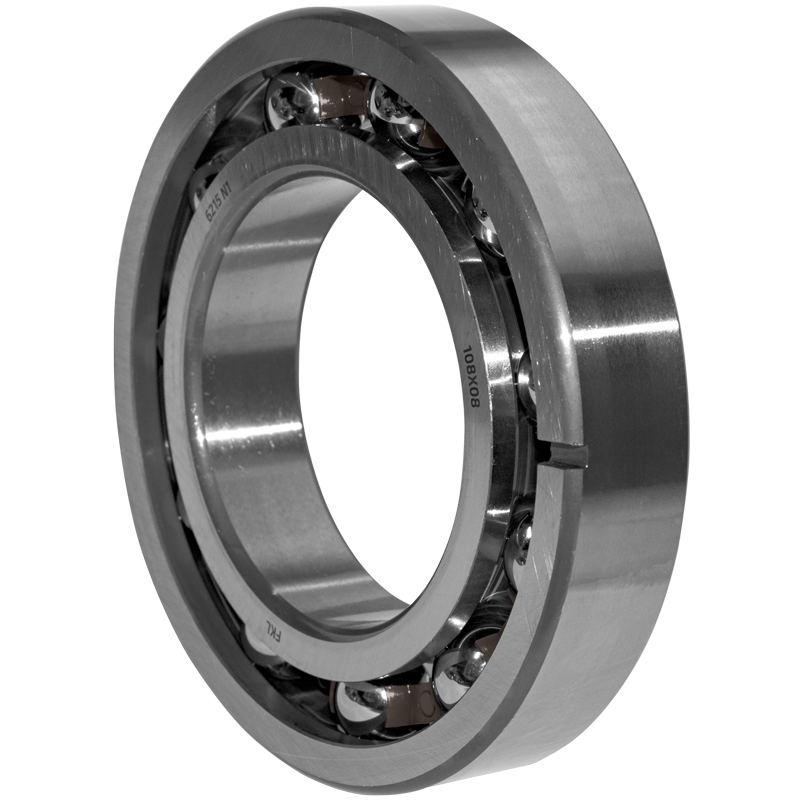

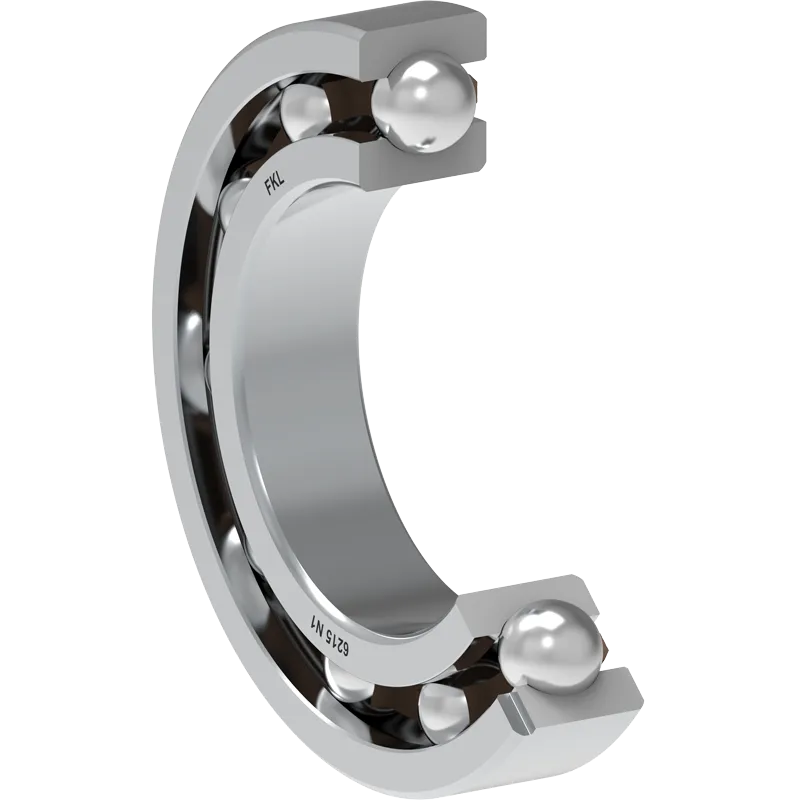

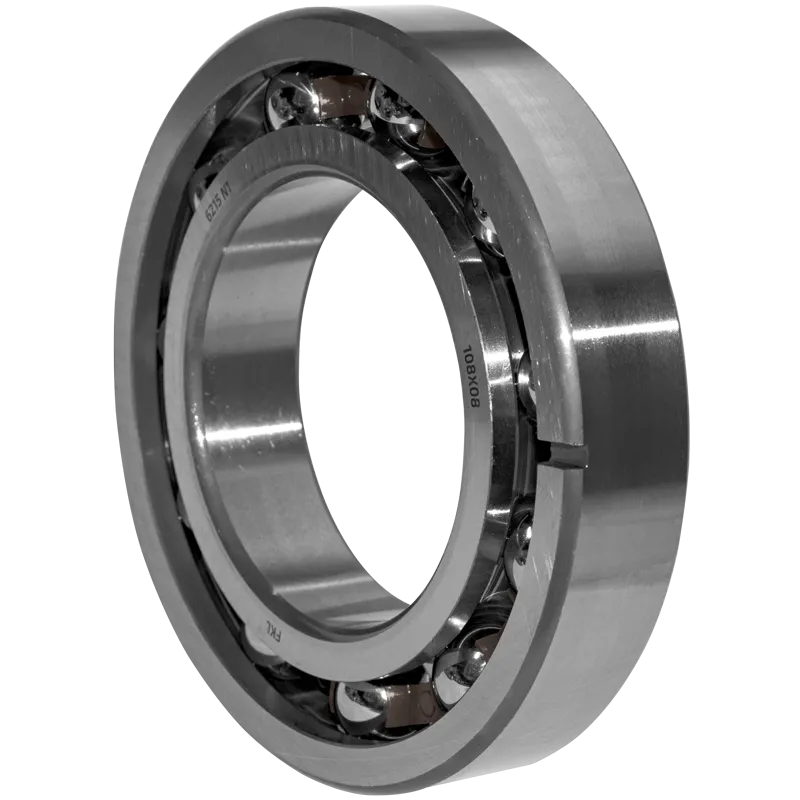

6215.N1
Technical specifications

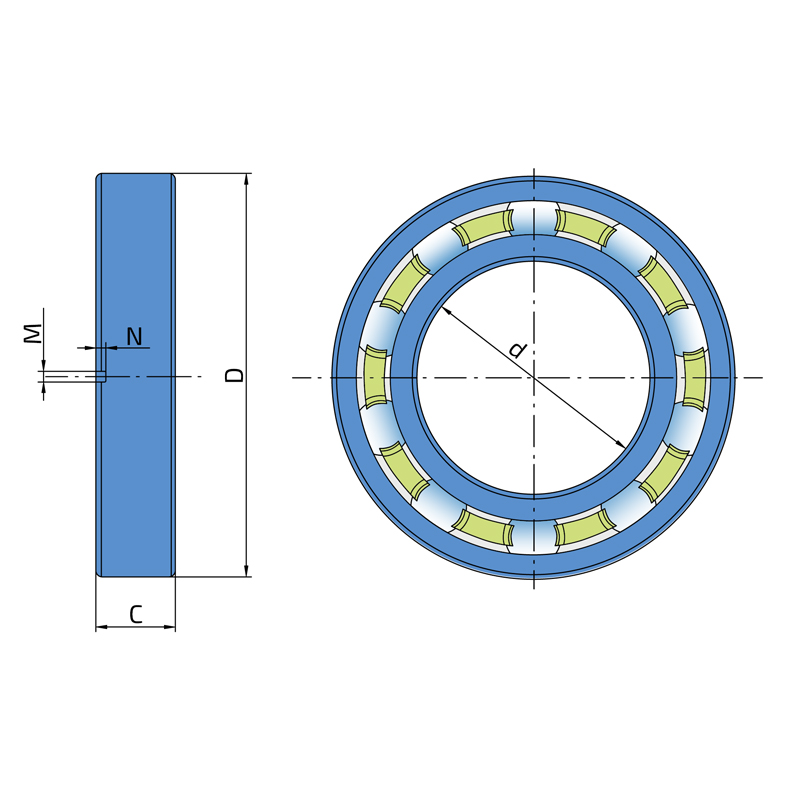

| d | Bore diameter | 75 mm |
| D | Outside diameter | 130 mm |
| C | Width outer ring | 25 mm |
| N | Rectangular hole size | 3 mm |
| M | Rectangular hole size | 3.5 mm |
| kg | Mass | 1.25 kg |
| Cdyn | Dynamic load rating | 62 kN |
| Co | Static load rating | 44.5 kN |
| Pu | Fatigue load limit | 1.869 kN |
Cross references
| КЛЕВЕР АО | 6215 N1 |
Installations
| KLEVER | HD800, DX, DV |
