6209

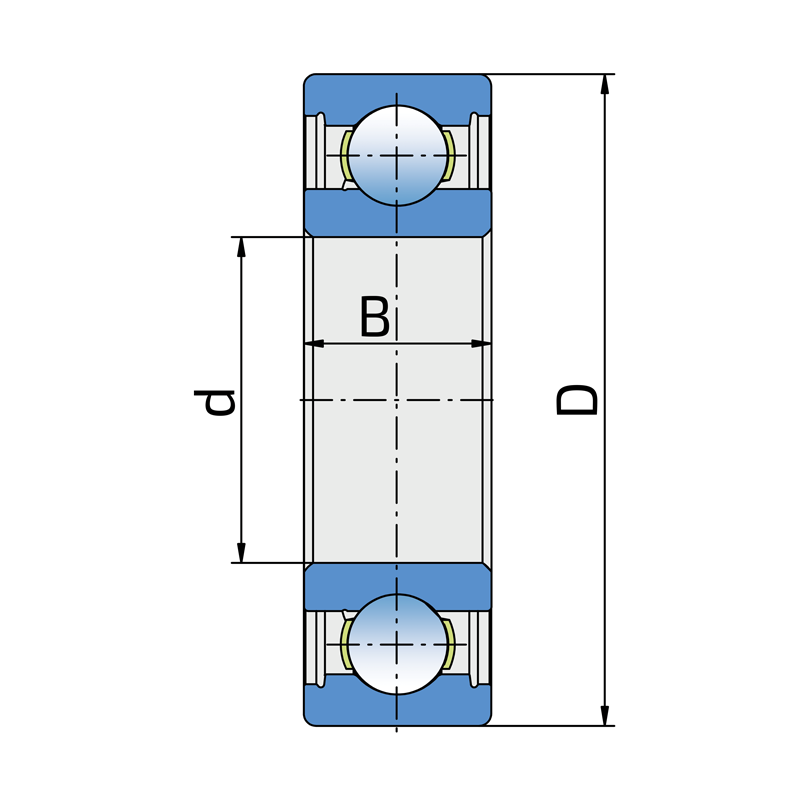

Technical specifications
| d | Bore diameter | 45 mm |
| D | Outside diameter | 85 mm |
| B | Width inner ring | 19 mm |
| kg | Mass | 0.41 kg |
| Cdyn | Dynamic load rating | 32.5 kN |
| Co | Static load rating | 20.4 kN |
| Pu | Fatigue load limit | 0.857 kN |
Cross references
| РОСТСЕЛЬМАШ | 6209 |
Installations
| РОСТСЕЛЬМАШ | DON 680M |
| РОСТСЕЛЬМАШ | РСМ1401 |
| РОСТСЕЛЬМАШ | РСМ1403 |
| РОСТСЕЛЬМАШ | РСМ-100.75.30 ЖР-4000 |
| РОСТСЕЛЬМАШ | Дон-1500Б |
